What’s Next for Hermetic Sealing Technology?

Buyers now must weigh clear, measurable facts when choosing a hermetic sealed connector solution for tough environments. Practical data—like verified leak rates near 1×10^-8 mbar l/s, up to 10,000 mating cycles, 60 A current rating, and 50 kV test voltage—makes this comparison easier.

This guide explains how to match design and specifications to real-world applications, from vacuum chamber test stands to orbiting satellites and aerospace systems. We cover materials (316L stainless, brass, polymers), terminations (solder, PCB), and protocol support such as USB 3.2 and Ethernet.

You’ll learn why robust sealing protects electronics from moisture and gas ingress and how hybrid solutions combine power, signal, and fibre in one hermetic connector. Expect clear buying criteria: leak specs, pressure differentials, electrical integrity, and certification for the UK market.

Key Takeaways

Compare verified specs: use leak rate, mating cycles, and test voltages as key metrics.
Match form factor to install needs: circular, rectangular, and feedthrough options affect maintenance.
Check materials and ratings: temperature range, current, and housing finish matter.
Confirm protocol support: ensure Ethernet, USB, or Single Pair Ethernet compatibility.
Prioritize certification: UK buyers should check UL, ATEX, IEC testing, and aerospace approvals.

Today’s hermetic sealing landscape: materials, methods, and market shifts

Design teams now choose between classic glass-to-metal craftsmanship and modern hermetic sealed connectors systems that cut weight and lead time.

Glass-to-metal remains the gold standard in parts for mission-critical reliability. New lightweight options use encapsulants to reduce mass while still achieving leak rates near 1×10^-7.

Epoxy-based seals let engineers pack more conductors into smaller footprints. That enables higher-density designs, lower cost, and faster delivery than many traditional builds, without sacrificing electrical performance.

Materials matter: typical housings use brass, aluminium, or stainless steel 316L, while conductors are usually copper or brass. Providers validate gas-tightness below 1×10^-8 mbar l/s to support low and ultra-high vacuum systems.

Feedthroughs link the vacuum chamber and atmospheric pressure sides with CF/KF flanges or O-ring schemes. Across aerospace, oil gas, semiconductor, and glovebox applications, stable performance under pressure cycling is non-negotiable.

Market shift: demand for faster lead times and bespoke design.
Verification: helium and electrical testing have become standard for many commercial applications.
Integration: hybrid feedthroughs now combine power, signal, and fibre while protecting the hermetic barrier.

Buyer’s checklist: matching sealed connectors to environments and applications

Begin with the operating envelope: temperatures, pressures, and exposure that your solution will face.

Define environments and conditions. Decide whether parts will sit on a vacuum chamber wall, see pressure cycling, or stay at atmospheric pressure. That narrows viable designs fast.

Set verifiable leak and test specs. Require helium leak results ≤1×10^-8 cc-He/s and Hipot reports. Request written vacuum leak certification to prove integrity and reliability.

Map temperature and pressure ranges. Components must resist cryogenic service up to 200°C, and some jobs demand ratings to 10,000 PSI.

Confirm required certifications early (UL, FM, IECEx, CSA, ATEX) for oil & gas or lab use.
Choose terminations (solder, PCB, push‑pull) that suit assembly and serviceability while preserving sealing.
Assess electrical needs—current, test voltage, impedance, and shielding—to match specifications.
Evaluate ingress gases and liquids risk and select compatible materials to avoid premature resistance loss.

Plan installation: bulkhead thickness, CF/KF flange fit, and torque specs reduce commissioning delays.

Form factors and interfaces: circular, rectangular, and hermetic feedthrough connectors

Choose the right form factor early. Shape and mating style shape install time, wiring effort, and long‑term reliability.

Circular options are compact and rugged. They use threaded, bayonet, or push‑pull coupling for quick mating. Sizes and materials are highly customisable for oil & gas, aerospace, and vacuum chamber use.

Rectangular layouts suit high pin counts and tidy panel routing. They lock down with screws and offer linear pin arrays that simplify termination and troubleshooting.

Feedthroughs provide a true bulkhead barrier. Many fit CF or KF flanges or O‑ring grooves and can routinely meet leak targets near 1×10^-8 cc‑He/s.

Pick stainless steel or aluminium housings for corrosion resistance and weight control.
Specify size and mounting geometry early to ensure bend radii and tool clearance.
Consider epoxy backpotting to upgrade legacy parts to a tight barrier and higher conductor density.
Match mating style to your maintenance model to balance speed, torque control, and vibration resistance.

Finally, verify materials and gasket compatibility with your process liquids and gases so the barrier performs across pressure and temperature cycles.

Performance that matters: leak, pressure, and electrical integrity

Performance specs must be defined up front—leak, pressure, and electrical tests drive reliable builds.

Set a clear leak acceptance criterion. For vacuum chamber work, require supplier certificates showing ≤1×10^-8 mbar l/s per IEC testing. Ask for both helium leak and vacuum leak reports so you can compare products objectively.

Translate pressures and cycling into practical choices. Map your maximum pressure and atmospheric pressure transitions to seal stacks, O‑ring materials, and flange standards. Designs rated to 10,000 PSI need specific torque and material checks to keep integrity under repeat cycles.

Match electrical performance to sealing and materials. Validate Hipot results and protocol compliance (USB 3.2, Ethernet, Single Pair Ethernet). Specify current and voltage ranges—some parts support up to 60 A or 50 kV, others 26 A and 3.7 kV—so insulation, creepage, and shielding meet your needs.

Choose stainless steel or compatible finishes for resistance to gases and liquids.
Evaluate glass-to-metal versus epoxy-encapsulated hermetic feedthrough based on density, cost, and lead time.
Include testability features for bubble or electrical checks after field service.

Document thermal, vibration, and other service conditions so the connector and components sustain specified integrity and long-term performance.

Compliance and standards for hermetically sealed connectors

Standards and test methods set the baseline for reliable performance in mission-critical assemblies.

Align leak-test protocols to IEC 60068-2-17 to standardize acceptance criteria such as <1×10^-8 mbar l/s helium. That lets you compare suppliers objectively for vacuum chamber and aerospace systems.

Military platform standards drive form-factor and interface choices. Look for families with hermetic variants when specifying high-density or legacy avionics builds.

For UK projects in hazardous areas, require UL, FM, IECEx, CSA, and ATEX approvals to reduce ignition risk in oil gas and process sites.

Verify mechanical‑electrical testing: Hipot plus helium leak reports.
Follow workmanship specs: IPC J‑STD‑001 and NASA‑STD‑8739 for harness and assembly quality.
Document materials: stainless steel, steel fasteners, elastomers, and plating compatibility with process gases.

"Require traceable certificates and application notes on O‑ring glands, blind‑hole sealing, and torque to preserve long‑term performance."

Customisation, integration, and testing: building reliable systems

Custom and semi-custom feedthrough assemblies let teams balance cost, lead time, and performance by combining off‑the‑shelf parts with in‑house machining.

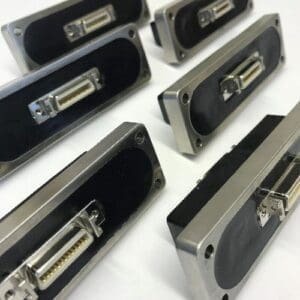

Use epoxy encapsulation to integrate pins, sockets, wires, flex circuits, and optical fibres into a single barrier. Epoxy potting also upgrades legacy parts to meet tight leak targets and adds strain relief at the panel.

Hybrid feedthroughs merge power, signal, and fibre in one assembly. That reduces part count and eases routing in compact systems.

Install typically uses bulkhead mounting with nuts and fasteners. Cable feedthroughs are bonded to cable jackets so the barrier resists ingress gases and liquids.

Engage suppliers early for connectors designed to your envelope and routing needs to limit NRE.
Specify certification testing: helium leak, vacuum leak, bubble tests, and Hipot to validate integrity.
Document panel thickness, grounding, and shield termination to meet mechanical electrical performance and EMC goals.

"Test early and often — validated leak and electrical reports save time on site and protect long‑term resistance to contaminants."

Your next step toward reliable, leak-tight performance

Start by listing the exact conditions your system will face, then share that brief with suppliers so they can propose precise solutions fast. Leading suppliers offer platforms rated up to 10,000 mating cycles, high current/voltage options, and validated helium leak performance near 1×10^-8 mbar l/s.

Summarize environmental conditions, leak targets, pressure and temperature bands, and electrical needs. Request sample drawings, mounting guidance, and test plans up front to keep installation on schedule and protect the barrier.

Plan validation with documented helium leak and Hipot tests before go‑live. Consider hybrid feedthrough solutions to simplify routing in vacuum chamber and pressure‑vessel applications and to reduce failure points.

Engage applications engineers early for connector selection and sealing choices so your systems meet performance goals and stay serviceable in aerospace and oil gas deployments.
