What Is an HDMI Matrix Switcher and How to Select the Right One?
Matrix switchers is a device that routes multiple audio/video sources to multiple audio-video destinations. The matrix switchers accept AV signals from different input sources like computers, Blu-rays, cameras, etc., and rout the signal to output devices like projectors, flat panel displays, or video-conference codecs.
HDMI Matrix Switcher Applications
HDMI matrix switchers are used in multimedia meeting rooms, radio and television, and education and control centers. These devices are also perfect for government, military, and corporate, where signal management and high-speed distribution of high-resolution video signals are crucial.
Types of HDMI Matrix Switchers
A variety of HDMI matrix switchers are available in the market today. Here are a few things you can consider while choosing the right one for your application.
- Signal Routing Ability
- Video Signal Type
- Cabling Type
Here Are Some of The Most Common Types of HDMI Matrix Switchers
HDMI Matrix Switchers over CAT5/CAT6
If you are looking for an inexpensive, durable, and easily field terminated connection, then 8x8 HDMI matrix switcher cat6 is the perfect solution. These switchers are best suited for extending the signals at a longer distance, and technicians can easily install these switchers with different cable lengths. In addition, it eliminates the technical problems associated with installing long HDMI cables.
IP HDMI Matrix Switchers
IP HDMI matrix switchers can covert and transport HDMI signals up to 4K at 60 Hz 4:4:4 over a new or existing IP network without running proprietary link cables between devices. IP control lets you make ties or recall configuration presets and separately designate custom names for input, output, and preset patterns. Additionally, IP control supports simultaneous users from any device, including PCs, smartphones, or tablets.
4 x 4 HDMI Matrix Switchers
4 x 4 HDMI matrix switchers are perfect for home and small enterprise uses. They have four HDMI inputs and four HDMI outputs per their name. These switchers come at an economical price but have features and functionality similar to larger industrial-use HDMI video matrix switchers.

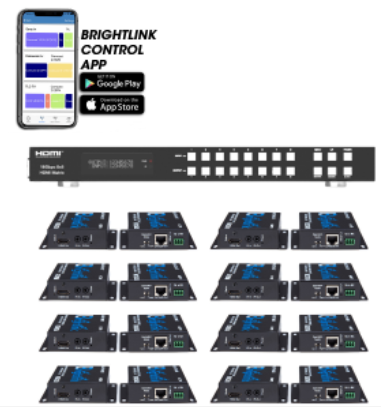

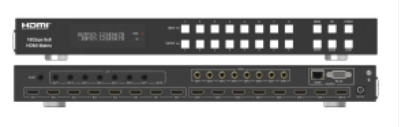

8 x 8 HDMI Matrix Switchers
8 x 8 HDMI matrix switchers are among the most popular. These switchers have eight HDMI inputs and eight HDMI outputs. HDbaset matrix 8x8 can be found in diverse installations, from home entertainment systems to small bars or restaurants.
16 x 16 HDMI Matrix Switchers
16 x 16 HDMI matrix switchers 16 HDMI inputs and 16 HDMI outputs. They can switch between 16 sources and 16 displays. These switches are ideal for applications that require multiple HDMI sources to be transmitted to multiple HDMI displays.
Component HDMI Matrix Switchers
Component HDMI matrix switchers are made from a component splitter and a component switch in one device. They permit users to switch component video from numerous component sources to multiple displays with compatible outputs.
Composite HDMI Matrix Switchers
Composite matrix switchers can transmit composite video and stereo audio from multiple video sources to numerous displays with compatible outputs. Composite video is an analog video transmission type that carries audio on a separate connection, unlike the higher-quality S-video (two channels) and the higher-quality component video.
