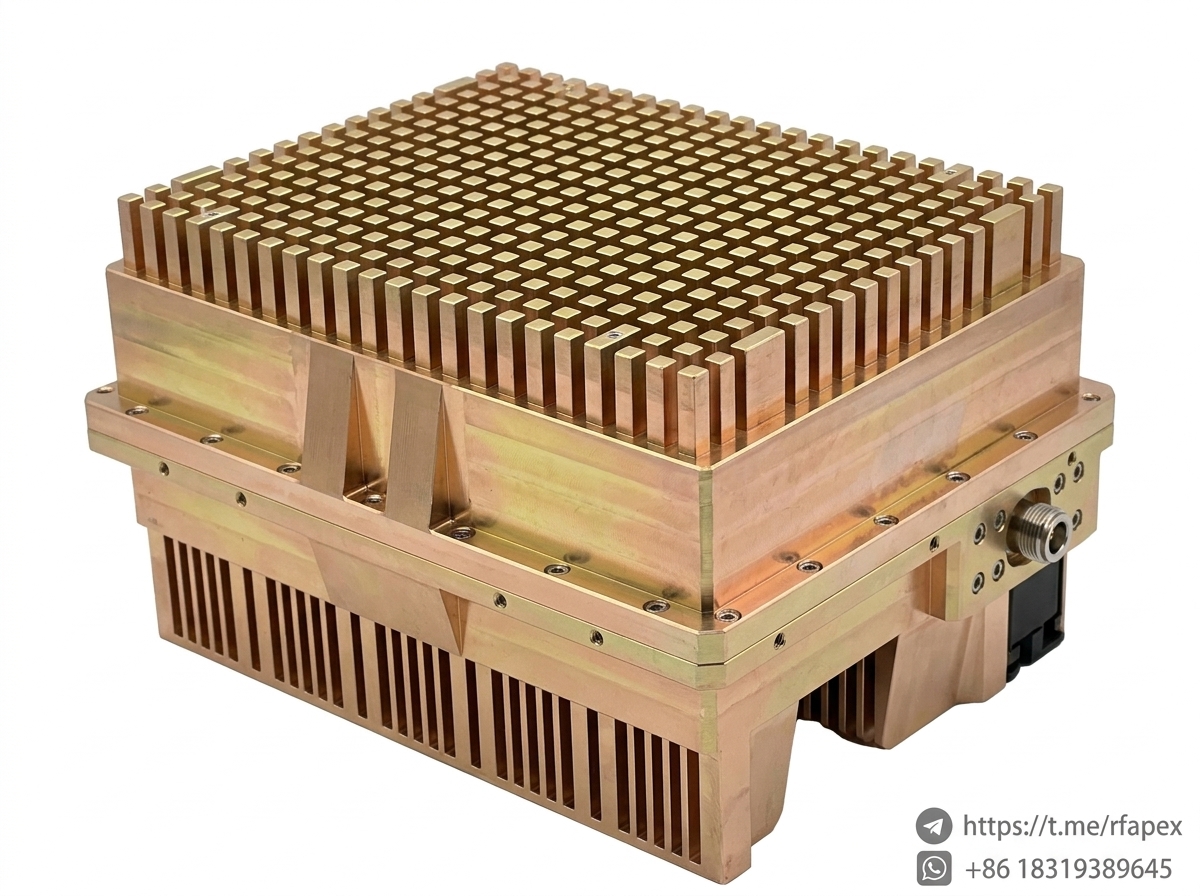

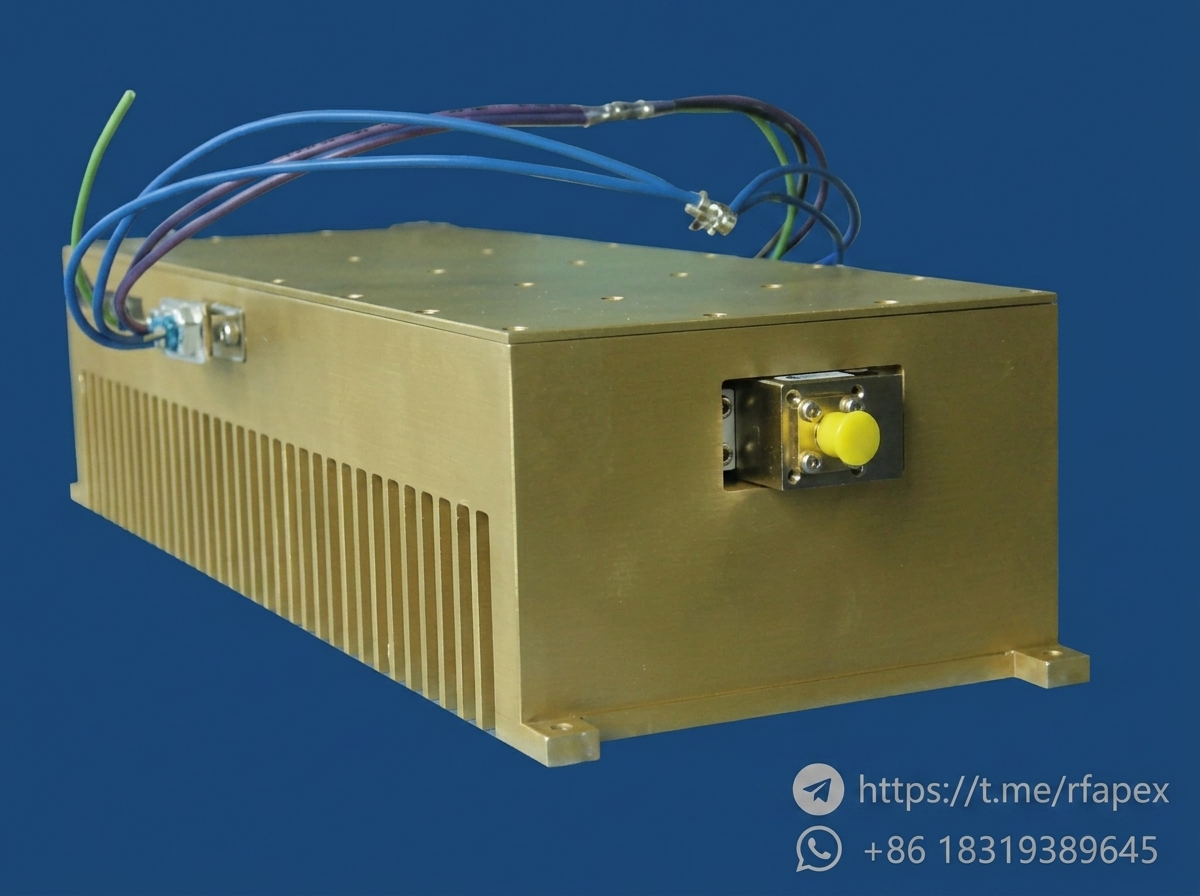

RF Apex 2-6GHz 100W Ultra-Wideband Solid-State Power Amplifier Module

The RF Apex 2-6GHz 100W Solid-State Power Amplifier (SSPA) module delivers exceptional broadband performance. It is widely applied in drone data links, video transmission, radio communications, radar, EMC testing, jamming, signal monitoring, and general wireless communication systems.

Key Features:

• Ultra-Wideband

• Low Loss

• Compact & Lightweight

• High Reliability

• Broad Environmental Adaptability

Applications:

• UAV & Data Link Systems

• Video & Data Transmission

• Wireless Communication Systems

• Radar Systems

• Test & Measurement Systems

• Radio & Broadcasting Systems

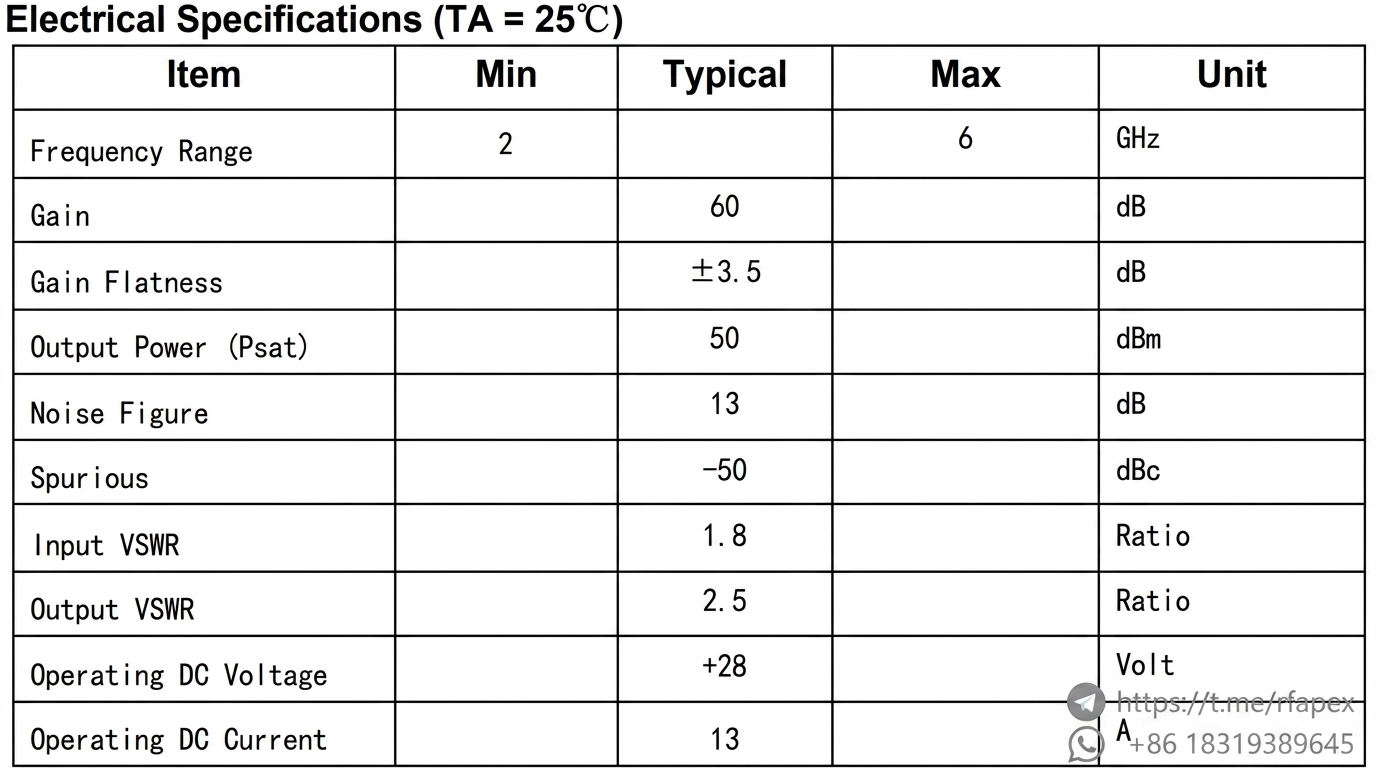

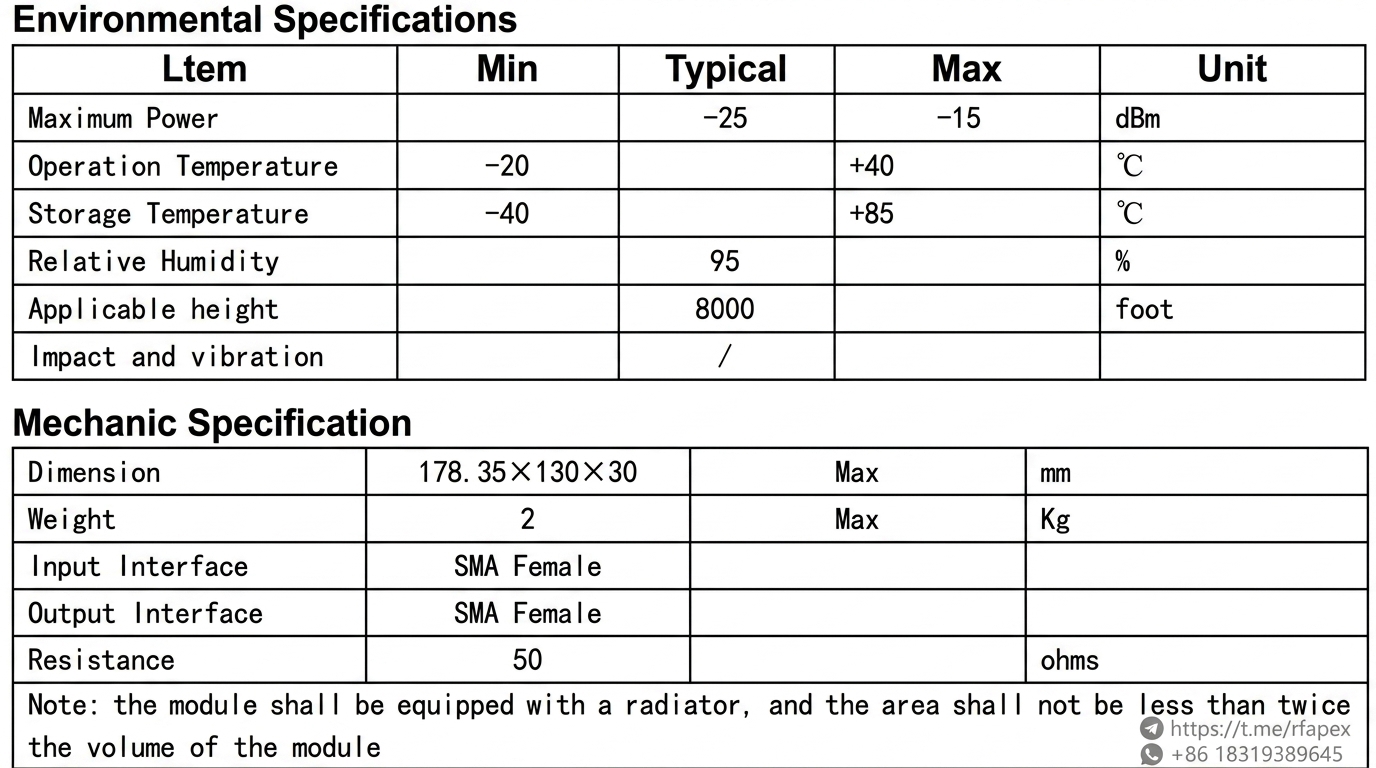

2-6GHz 100W Broadband Solid-State Power Amplifier

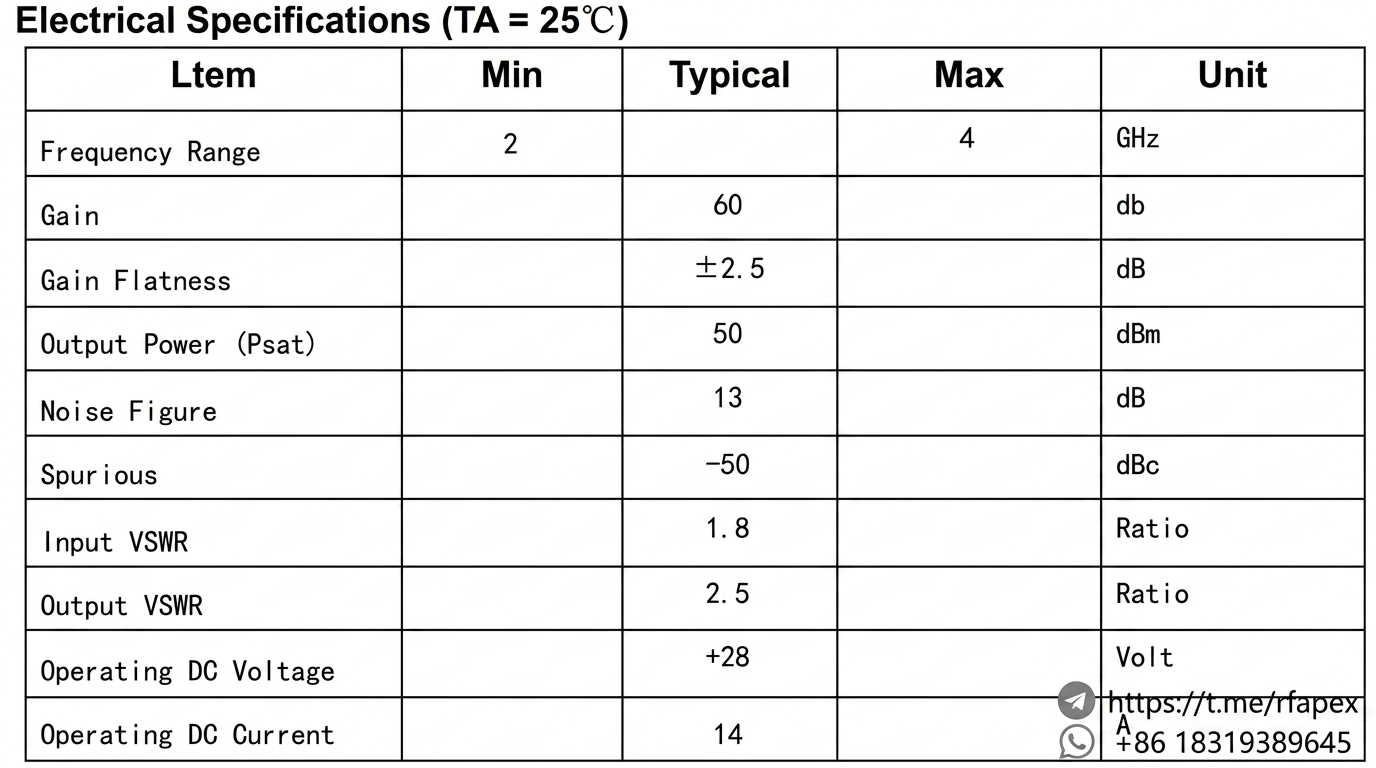

2-4GHz Broadband 100W Solid-State Power Amplifier

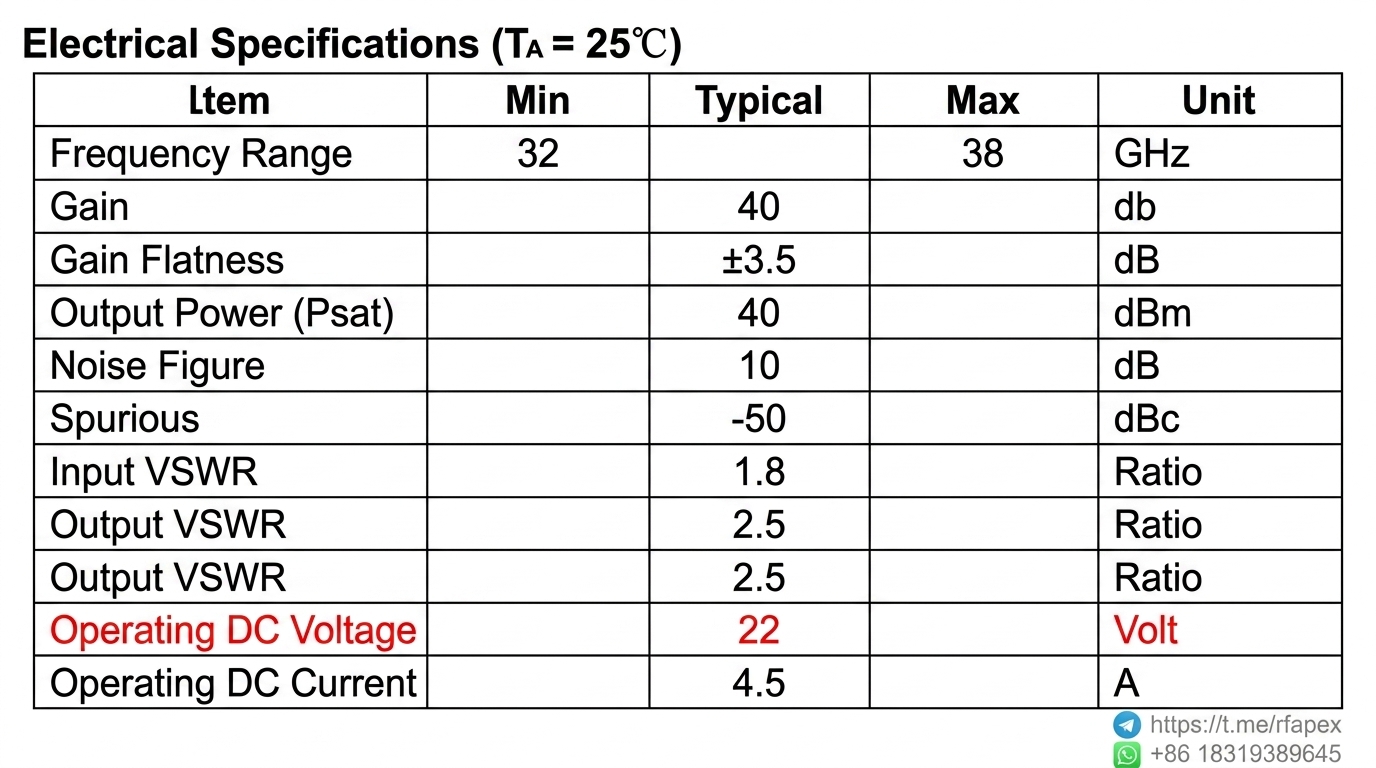

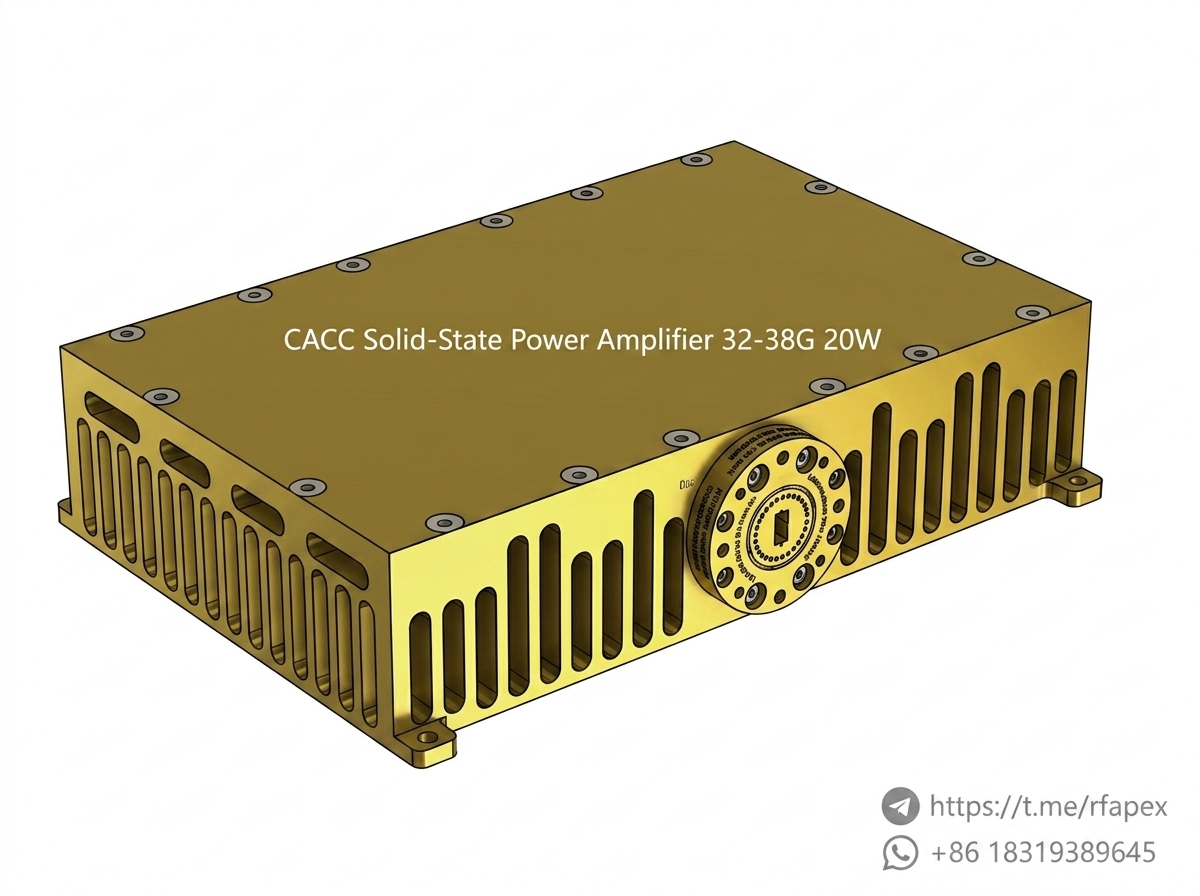

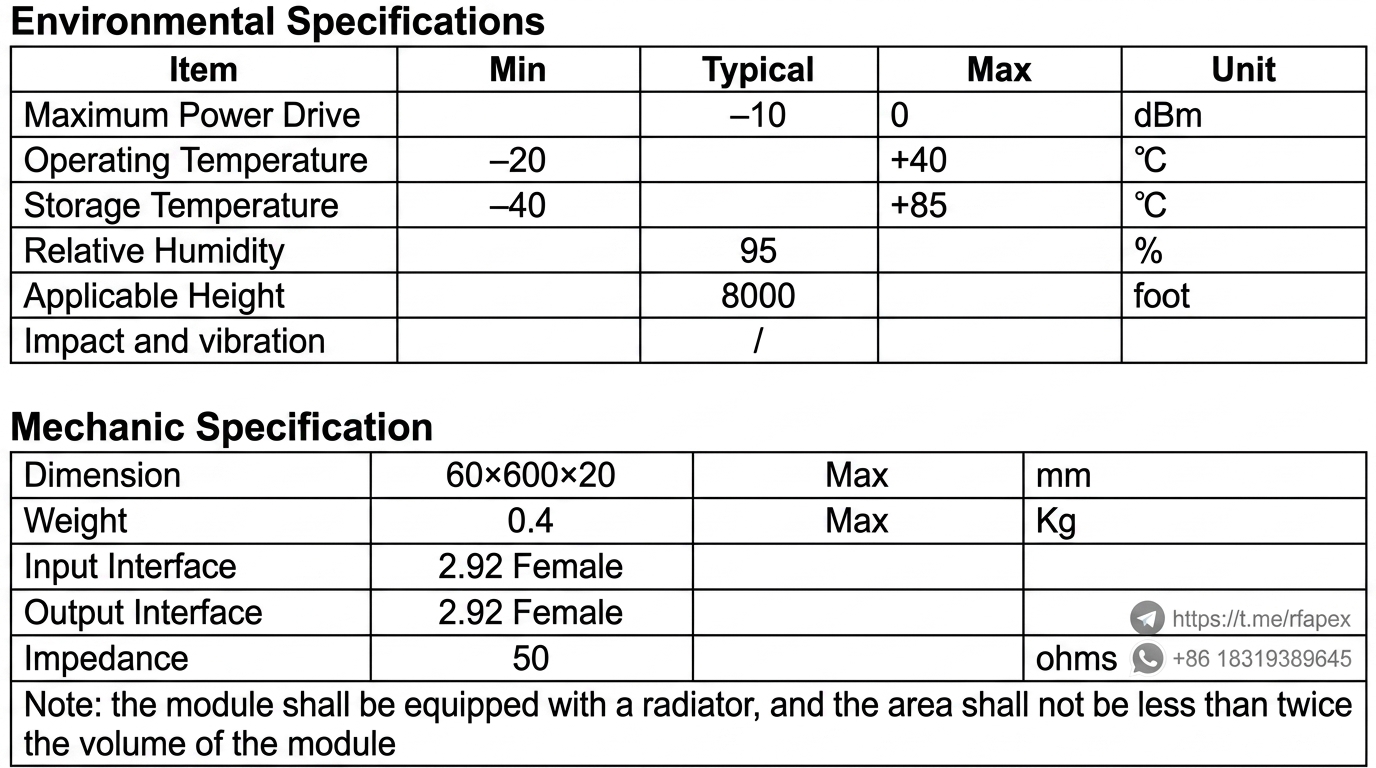

32-38GHz Ultra-Broadband 10W Solid-State Power Amplifier

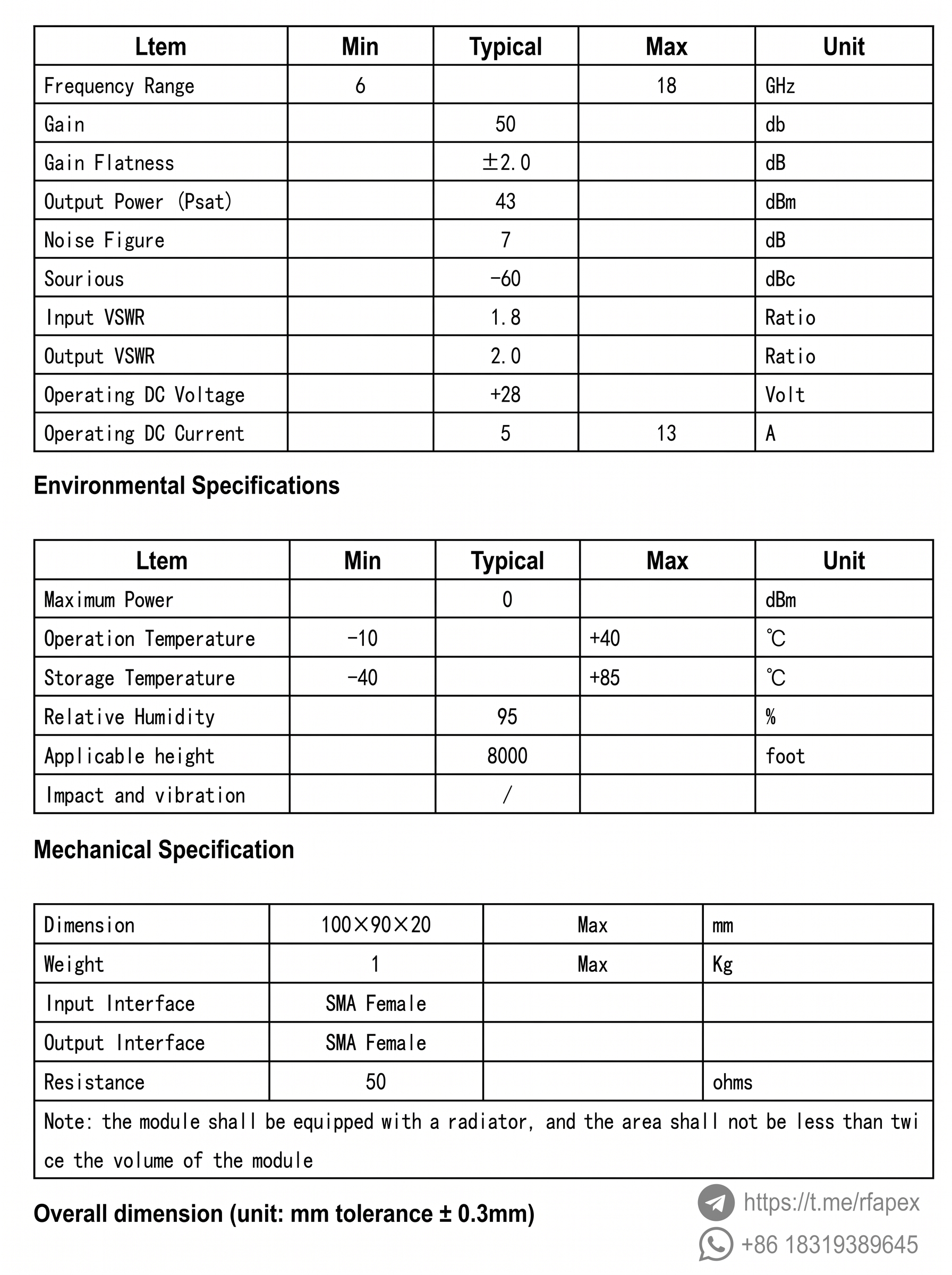

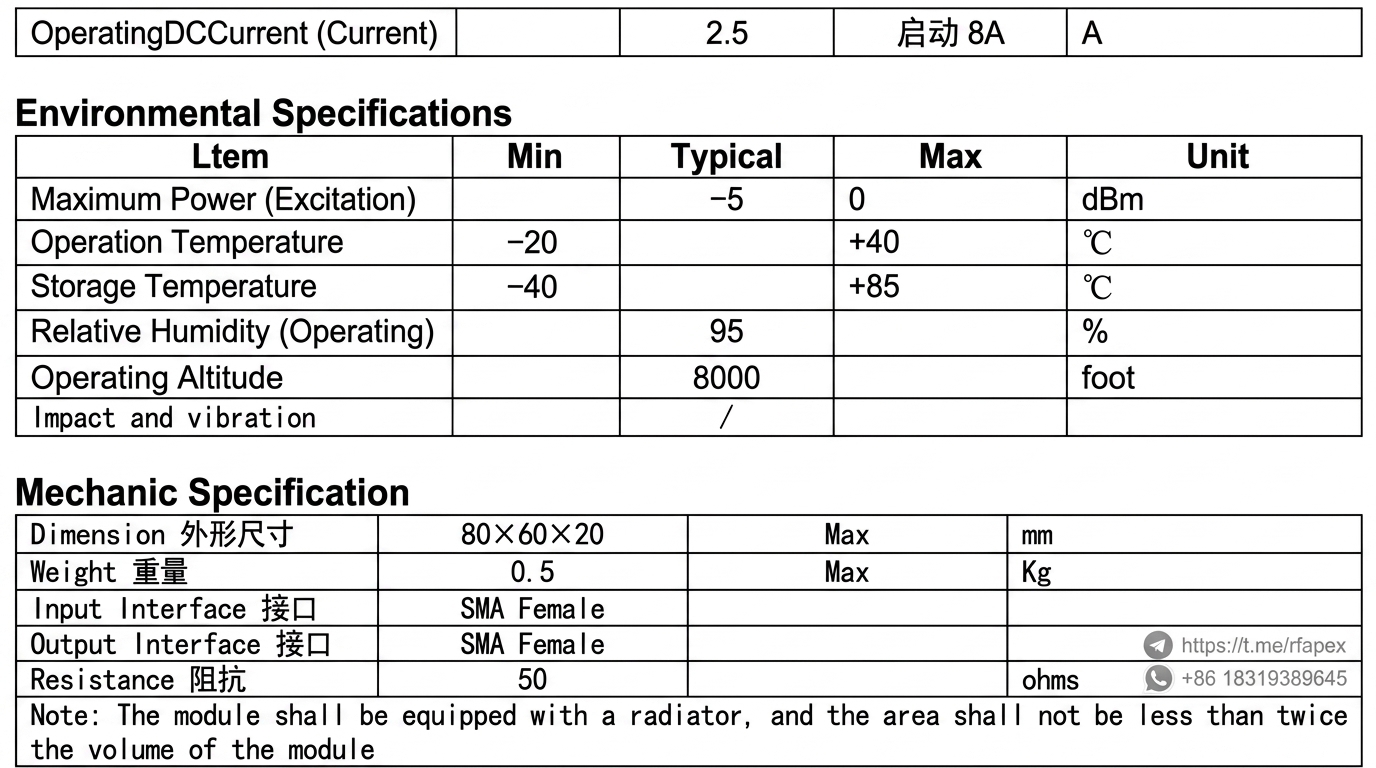

6-18GHz Ultra-Broadband 10W Solid-State Power Amplifier

6-18 GHz 20W Ultra-Wideband SSPA (Full Band Rated 20W)

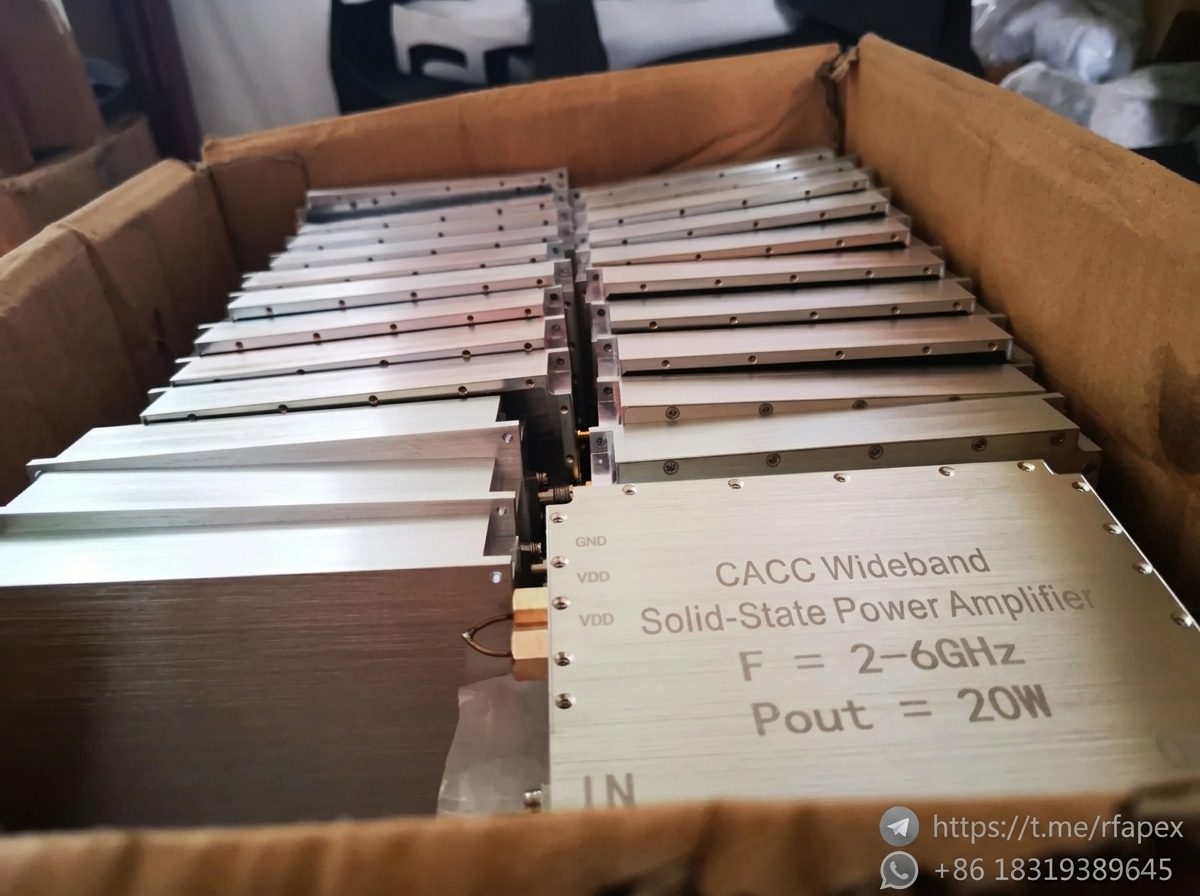

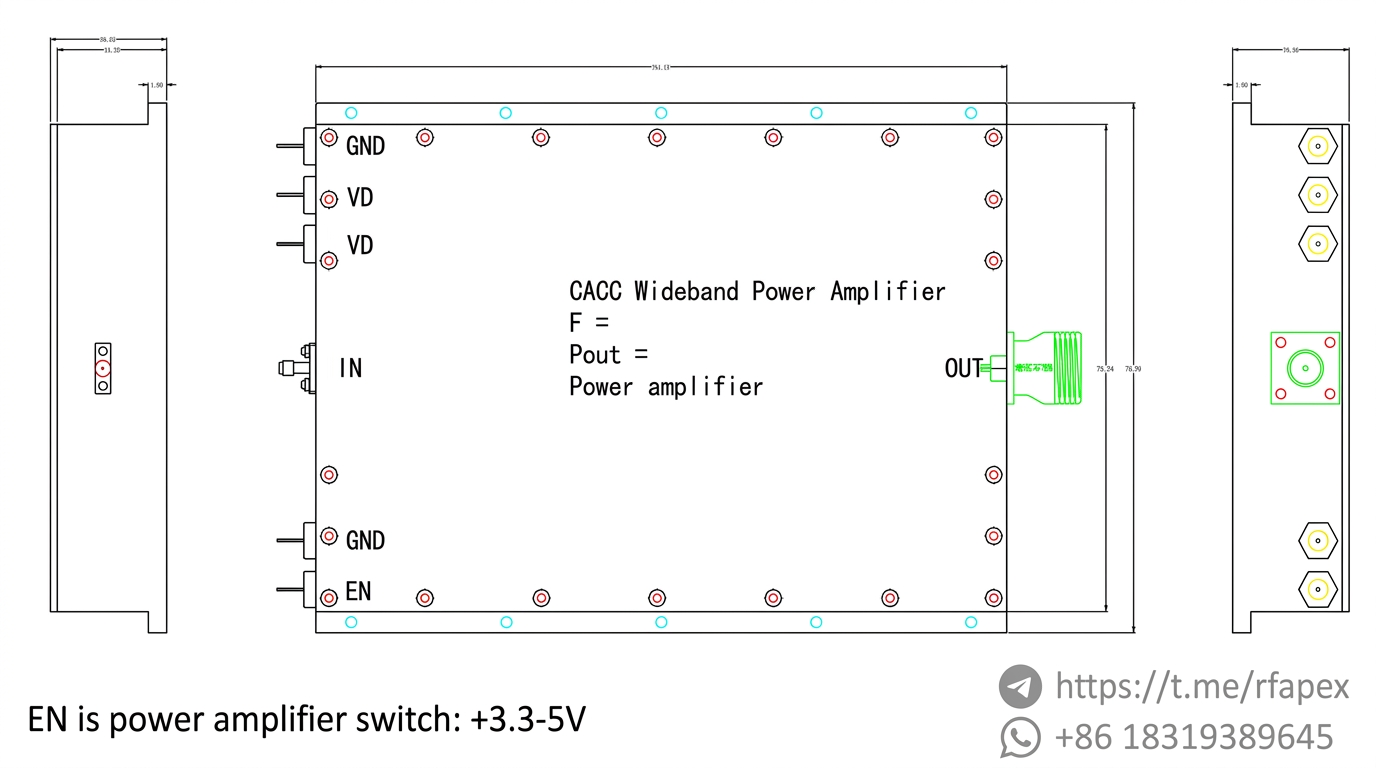

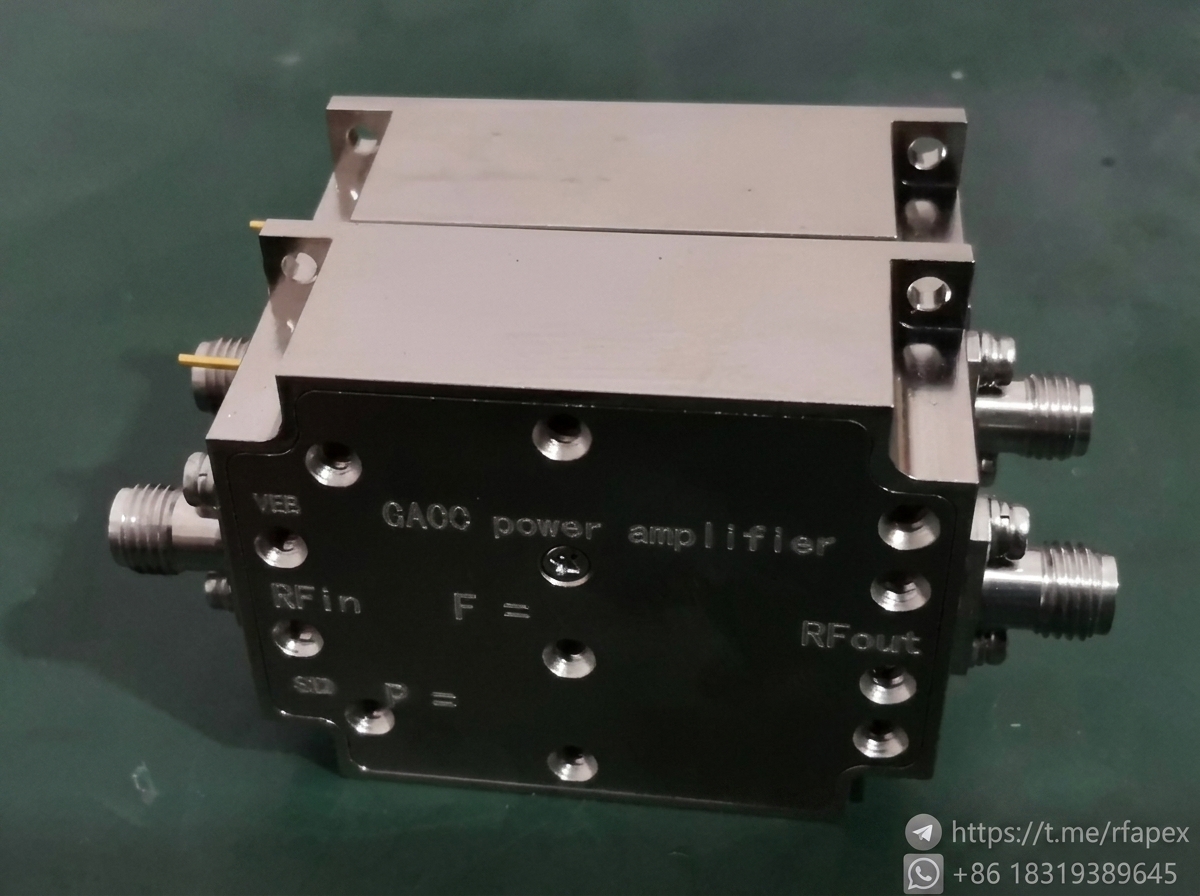

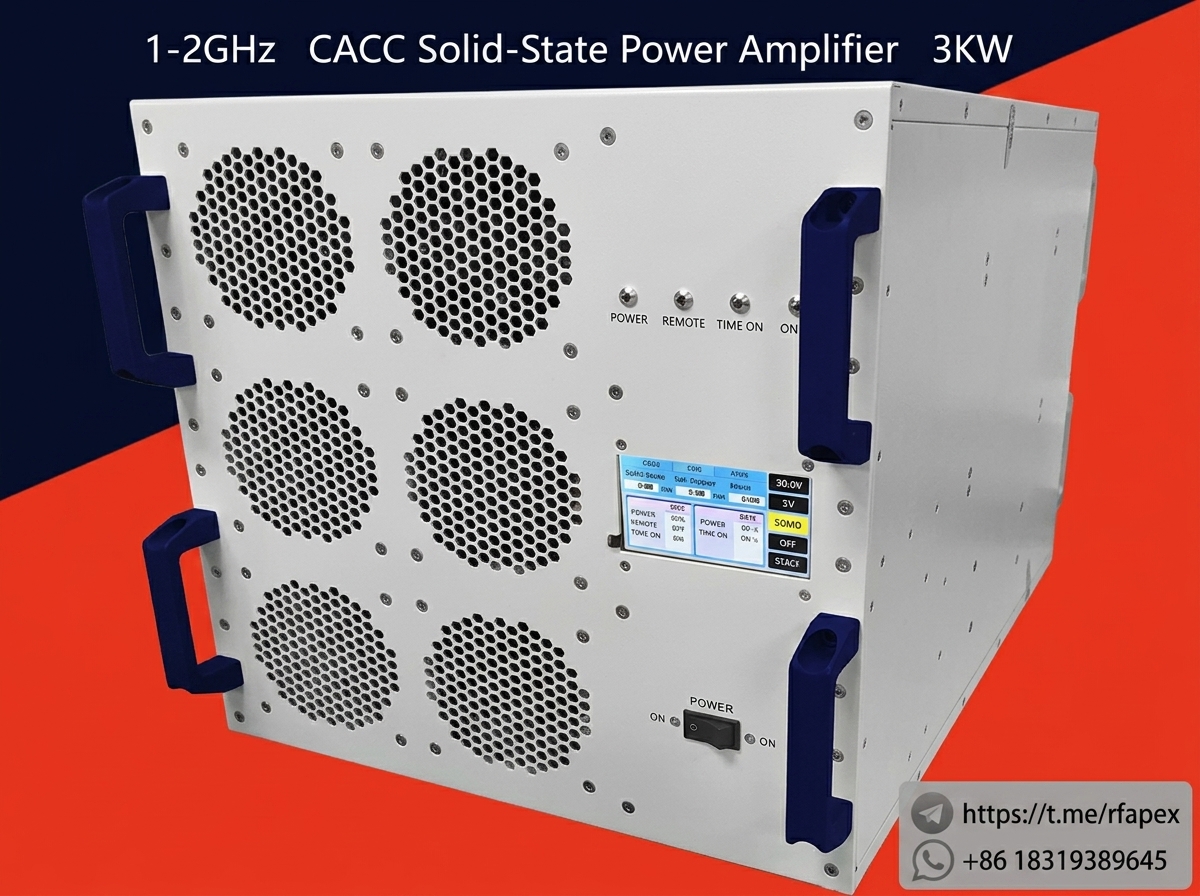

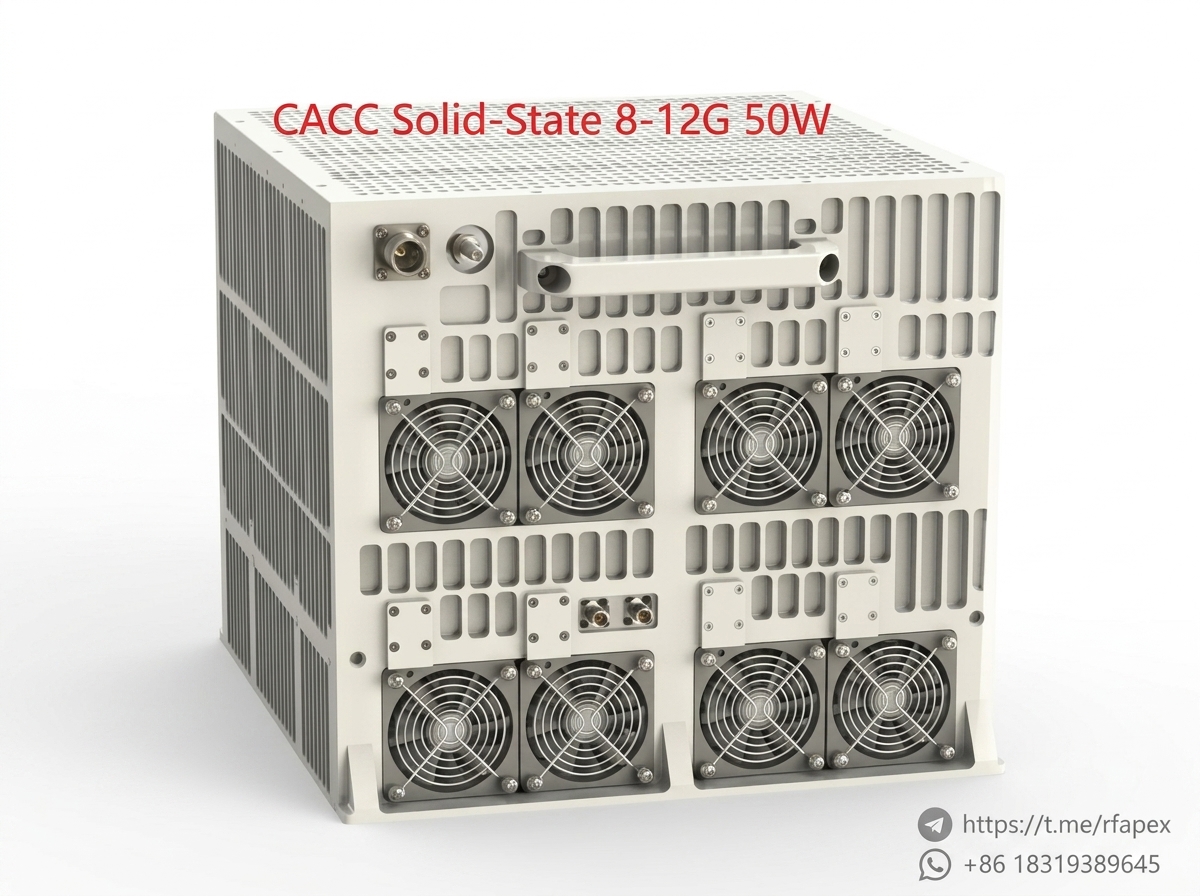

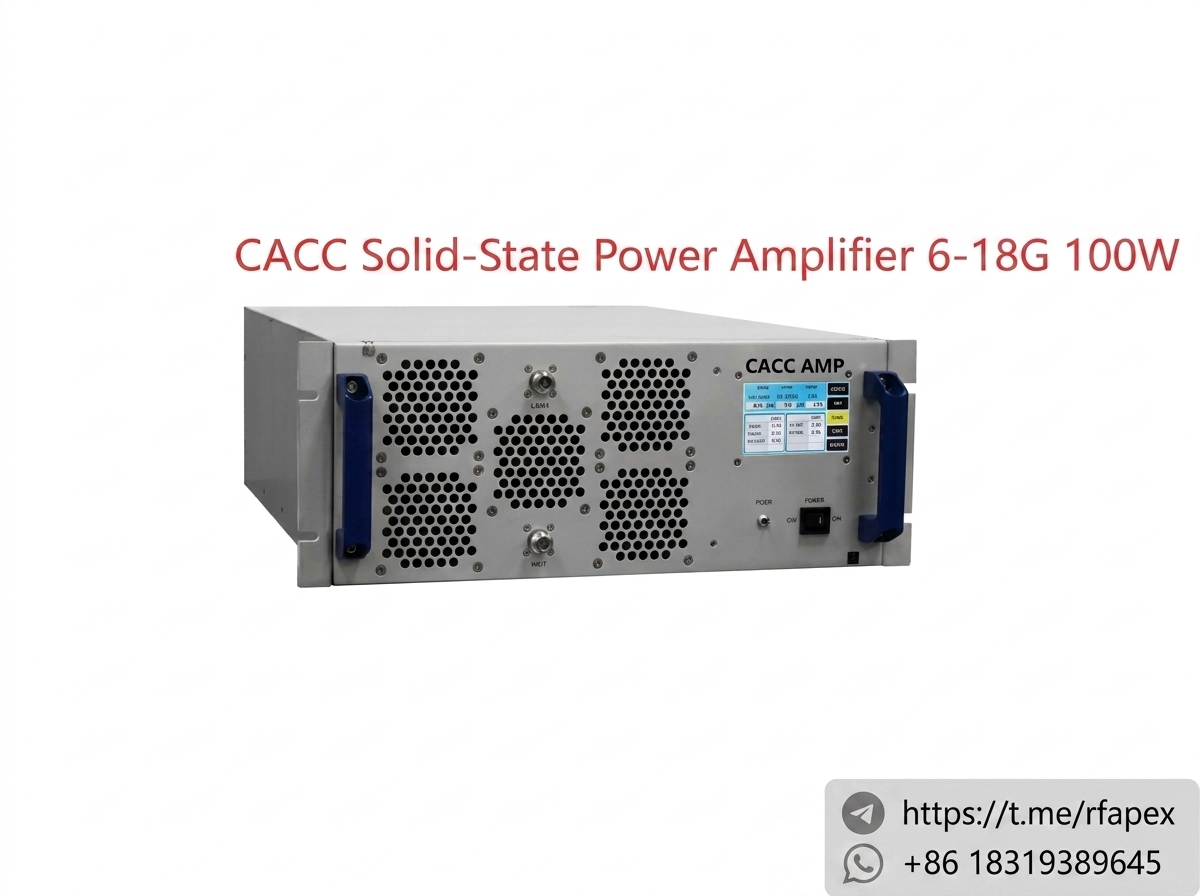

CACC thunder fire series solid state power amplifier

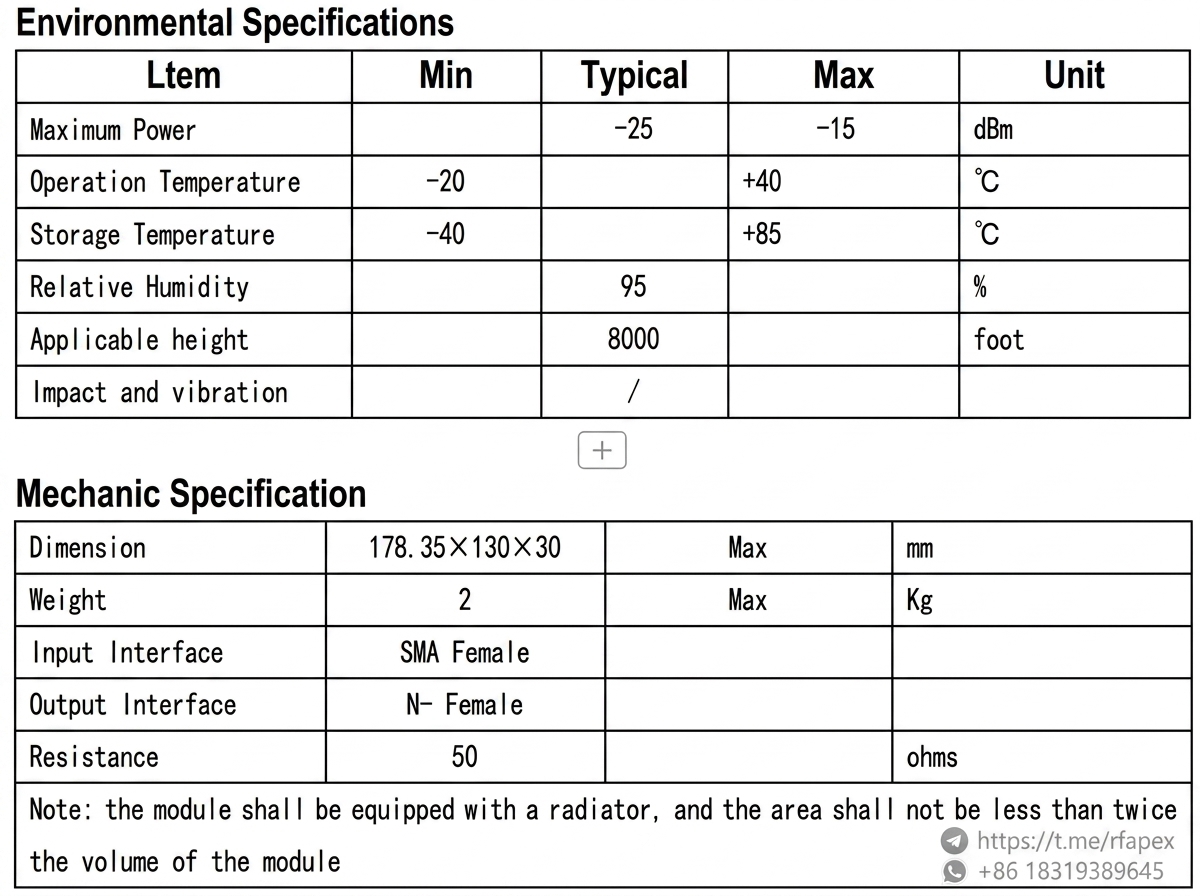

Product Technical Agreement

characteristic:

nUltra wideband

nlow noise

nMiniaturization

nhigh reliability

nExtensive environmental adaptability

Application:

nRadio and television system

nRadio system

nRadar system

ncommunication system

nTest system

nPhotoelectric conversion system

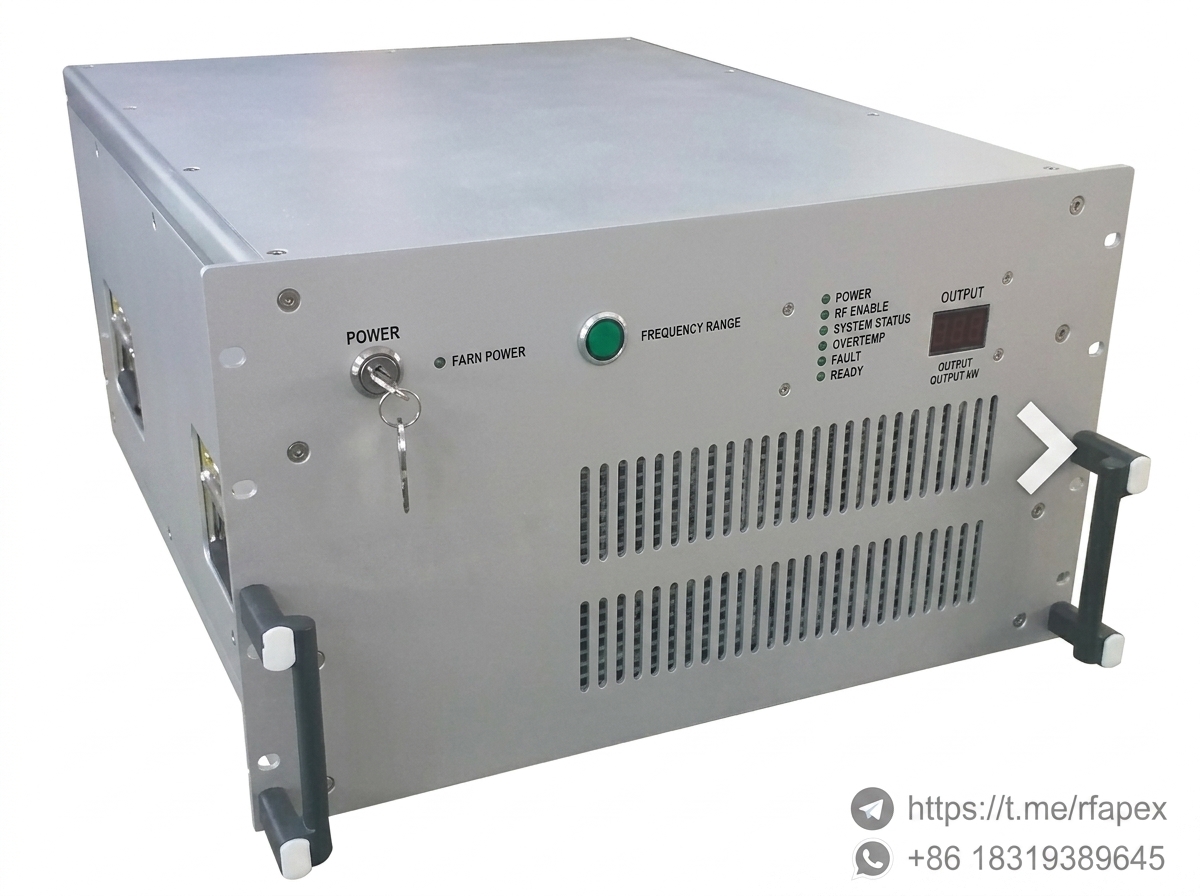

0.01GHz to 110GHz frequency coverage, broadband power amplifier 60 dBM, 60dB gain and SMA interface

Electrical Specifications (TA = 25℃)

2-18GHz Ultra-Broadband 10W Solid-State Power Amplifier

- Frequency Range: 2 - 18 GHz

- Gain: ≥ 40 dB

- Gain Flatness: ± 2 dB

- Output Power (Psat): ≥ 40 dBm

- Operating Voltage: +28 V DC

- Operating Current: 1.8 A

- RF Connectors: SMA-Female (50 Ω)

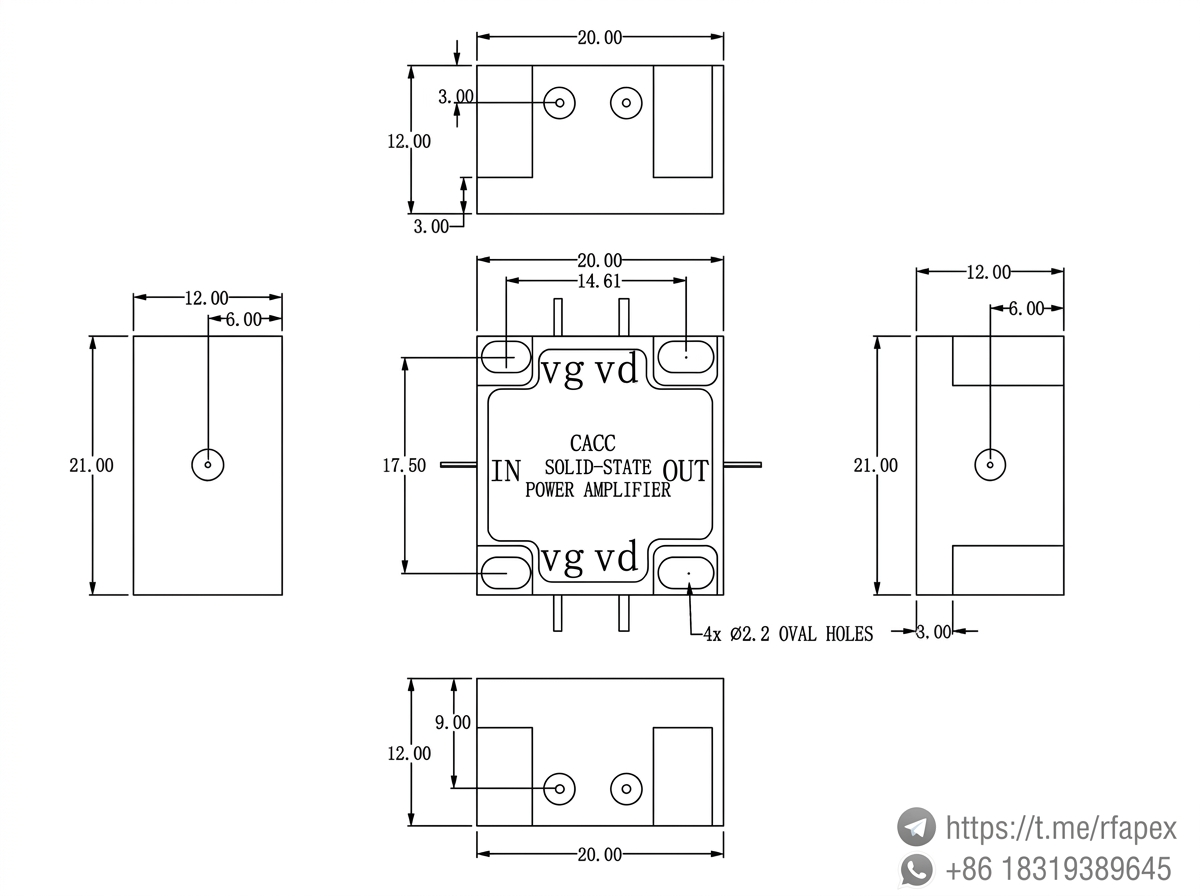

27 - 31GHz 20W Standard SATCOM Final-Stage Packaged PA Module (In Stock, 100% Domestic Components)

In stock for immediate delivery! 100% localized supply chain (100% domestic components). Widely applied in radio stations, video transmission, data links, EMC testing, jamming/interference, monitoring, radar, telemetry, and communication systems.

- Frequency Range: 27 - 31 GHz

- Gain: >= 20 dB (Typ)

- Output Power (Psat): >= 43 dBm (Typ) [20W]

- Input Power (Pin): >= 27 dBm (Max Limit: 30 dBm)

- Operating Voltage: +24V / -1.6V DC

- Current Consumption: 4.5 A (Typ)

- OIP3: -25 dBc @ 38 dBm

- Efficiency: 25%

- RF Interface: 0.38mm Insulator Pin

- DC Interface: 0.7mm Insulator Pin

13.5 - 14.75GHz 10W Standard SATCOM Final-Stage Packaged PA Module (In Stock, 100% Domestic Components)

In stock! 100% domestic components. Widely applied in radio stations, video links, data links, EMC testing, jamming, monitoring, radar, telemetry, and communication systems.

- Frequency Range: 13.5 - 14.75 GHz

- Gain: >= 18 dB (Typ)

- Output Power (Psat): >= 41 dBm (Typ)

- Input Power (Pin): >= 30 dBm (Max Limit: 31 dBm)

- Operating Voltage: +28V / -1.8V DC

- Current Consumption: 3.0 A (Typ)

- OIP3: -30 dBc @ Pout=39 dBm

- PAE: 31%

- RF Interface: 0.38mm Insulator Pin

- DC Interface: 0.7mm Insulator Pin

13.5 - 14.75GHz 8W Standard SATCOM Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 13.5 - 14.75 GHz

- Gain: >= 18 dB (Typ)

- Output Power (Psat): >= 39 dBm (Typ)

- Input Power (Pin): >= 30 dBm (Max Limit: 31 dBm)

- Operating Voltage: +28V / -2.2V DC

- Current Consumption: 2.0 A (Typ)

- OIP3: -26 dBc @ Pout=36 dBm

- PAE: 33%

- RF Interface: 0.38mm Insulator Pin

- DC Interface: 0.7mm Insulator Pin

13.5 - 14.75GHz 30W Standard SATCOM Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 13.5 - 14.75 GHz

- Gain: >= 20 dB (Typ)

- Output Power (Psat): >= 45 dBm (Typ)

- Input Power (Pin): >= 30 dBm (Max Limit: 31 dBm)

- Operating Voltage: +28V / -2.3V DC

- Current Consumption: 3.5 A (Typ)

- OIP3: -25 dBc @ Pout=38 dBm

- PAE: 32%

- RF Interface: 0.38mm Insulator Pin

- DC Interface: 0.7mm Insulator Pin

27 - 31GHz 10W Standard SATCOM Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 27 - 31 GHz

- Gain: >= 20 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Input Power (Pin): >= 27 dBm (Max Limit: 30 dBm)

- Operating Voltage: +20V / -2.2V DC

- Current Consumption: 2.5 A (Typ)

- OIP3: -25 dBc @ Pout=38 dBm

- RF Interface: 0.38mm Insulator Pin

- DC Interface: 0.7mm Insulator Pin

300kHz - 6GHz Ultra-Broadband SSPA Module (In Stock)

- Frequency Range: 300 kHz - 6 GHz

- Gain: >= 40 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Input Power (Pin): 0 dBm (Max Limit: 10 dBm)

- Operating Voltage: +28V DC

- Current Consumption: 3.2 A (Typ)

- P1dB: 37 dBm (Typ)

- RF Interface: SMA-Female

- Power Interface: J30J

- J30J-7 Pinout Definition:

 - Pins 1-4: +28V

 - Pins 5-7: GND

 - Pin 8: PTT

 - Pin 9: Fault Alarm

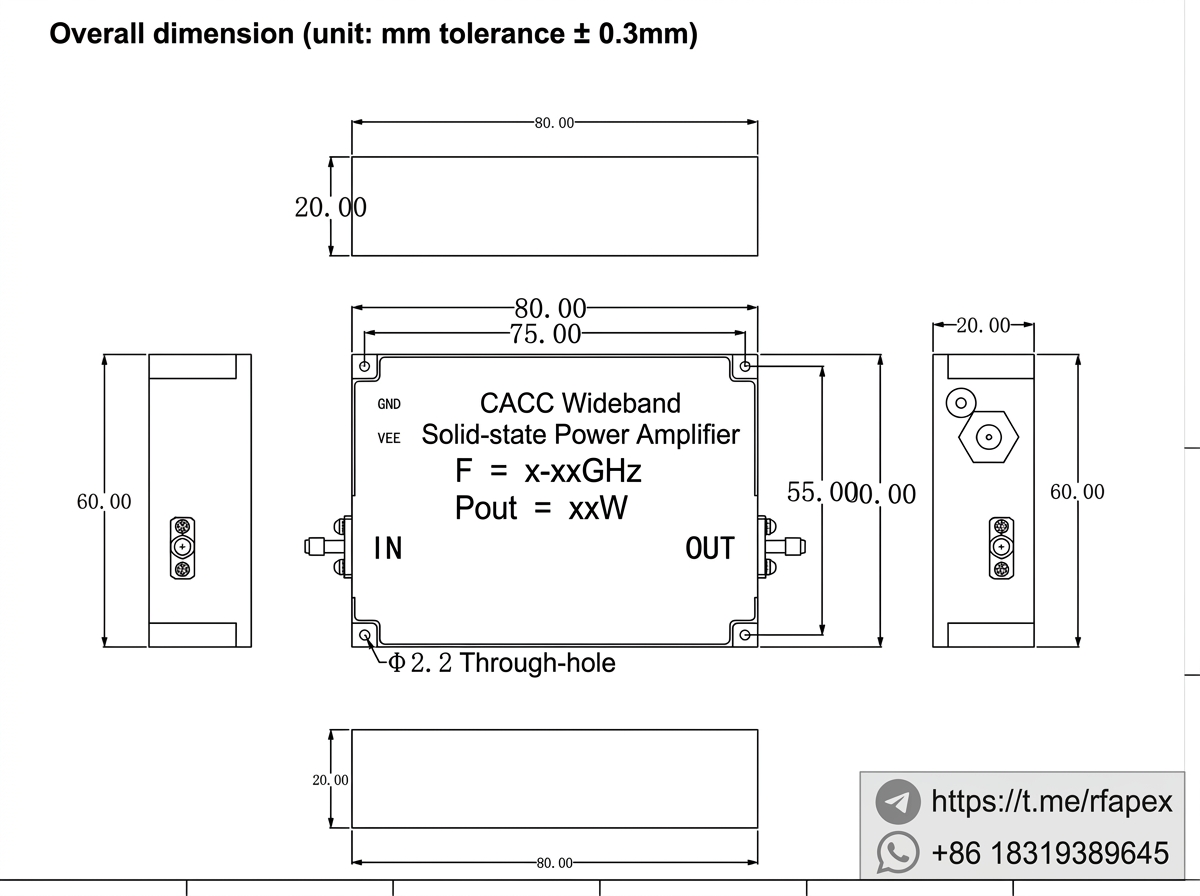

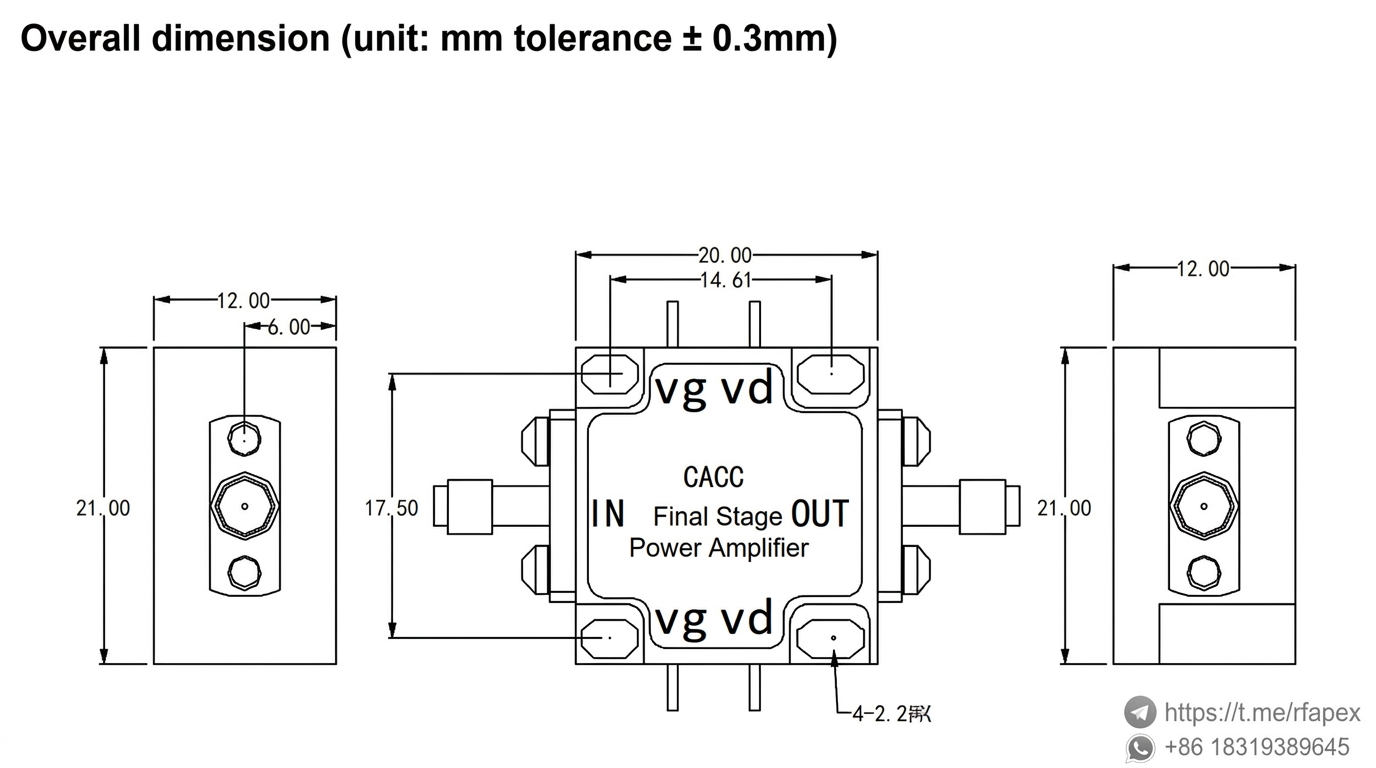

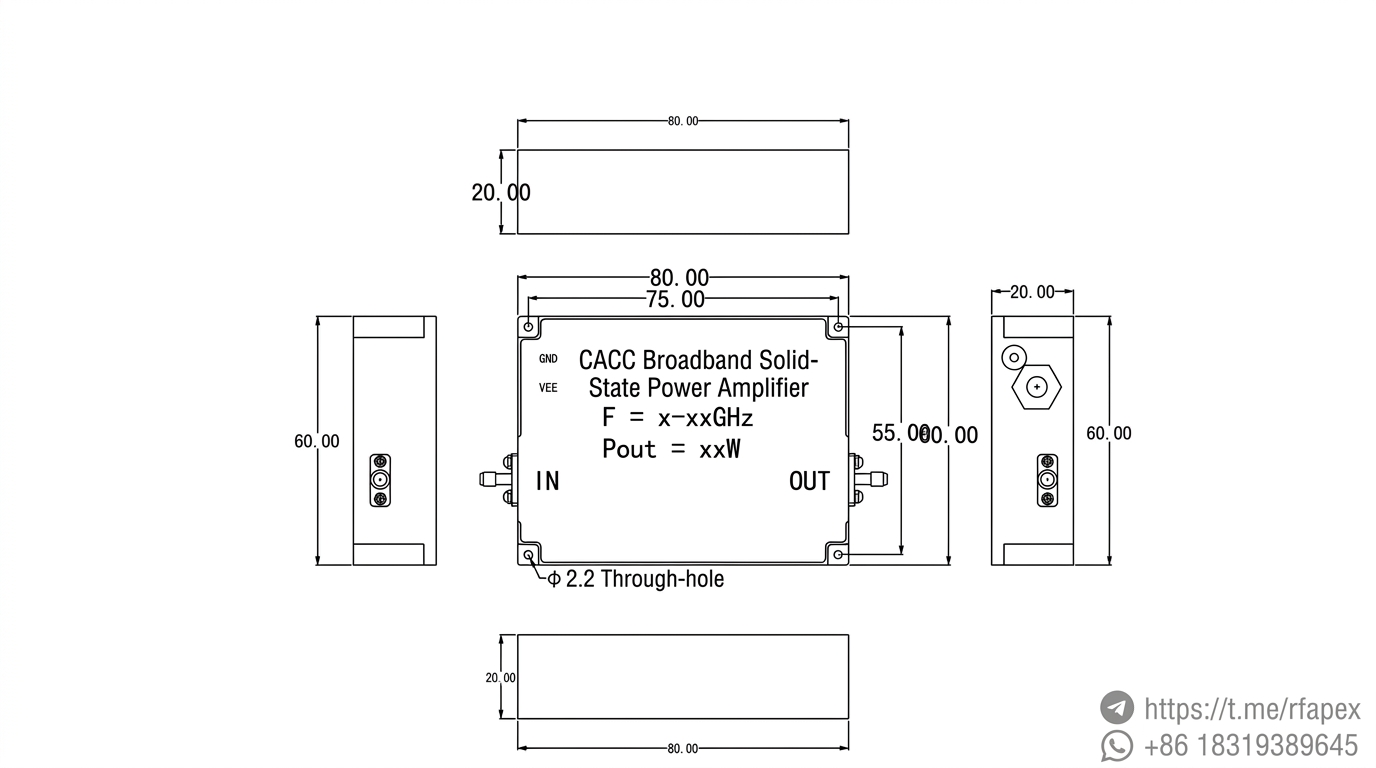

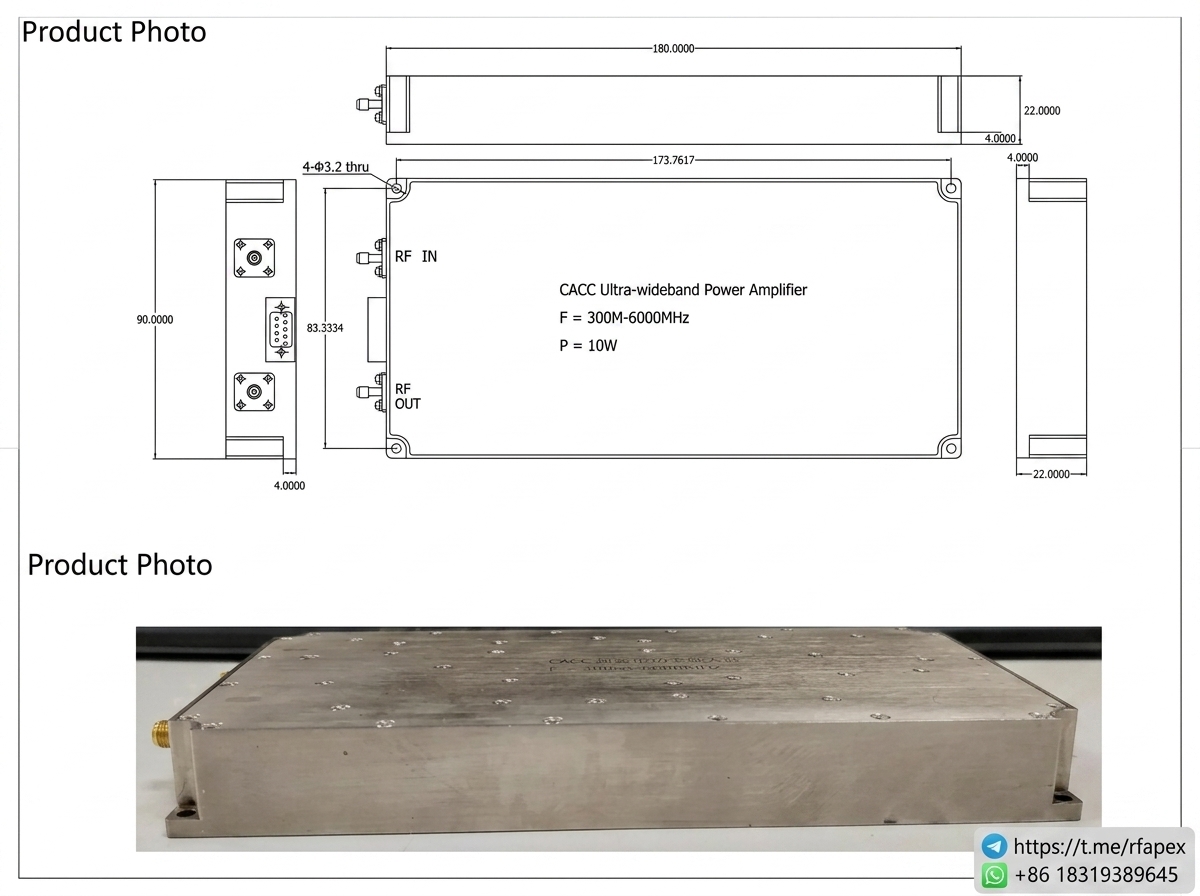

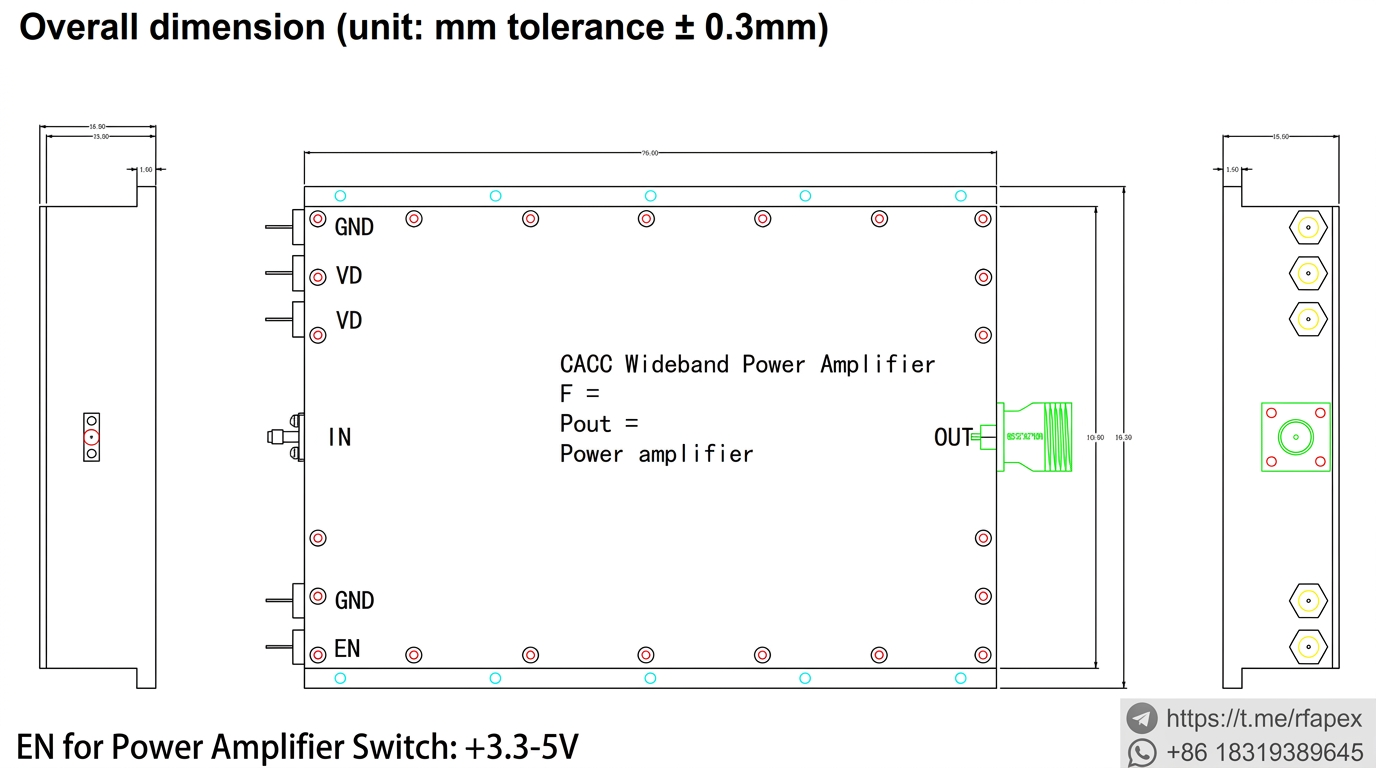

Overall dimension (unit: mm, tolerance +/- 0.3mm)

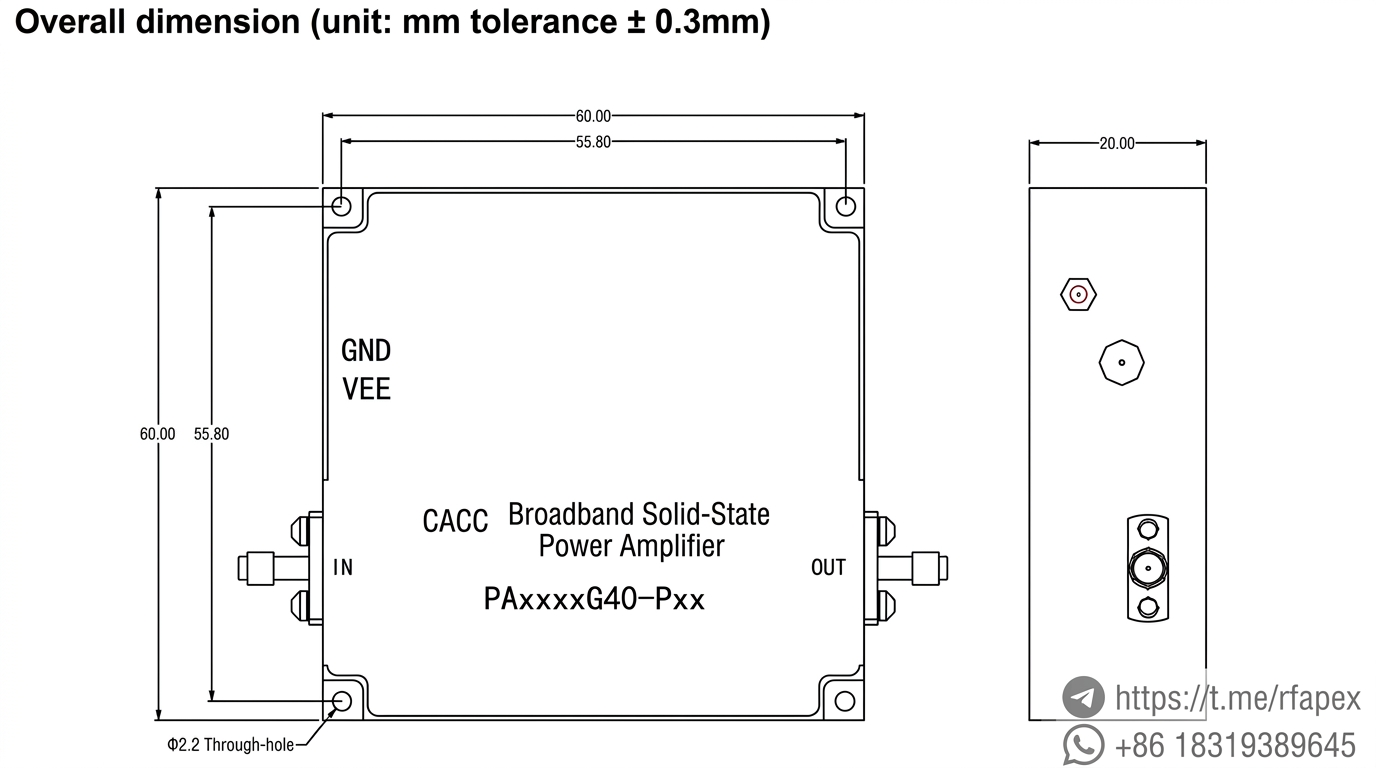

18 - 26.5GHz Ultra-Broadband Ultra-Compact 10W SSPA Module

- Frequency Range: 18 - 26.5 GHz

- Gain: >= 45 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Operating Voltage: +20V DC

- Current Consumption: 4.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

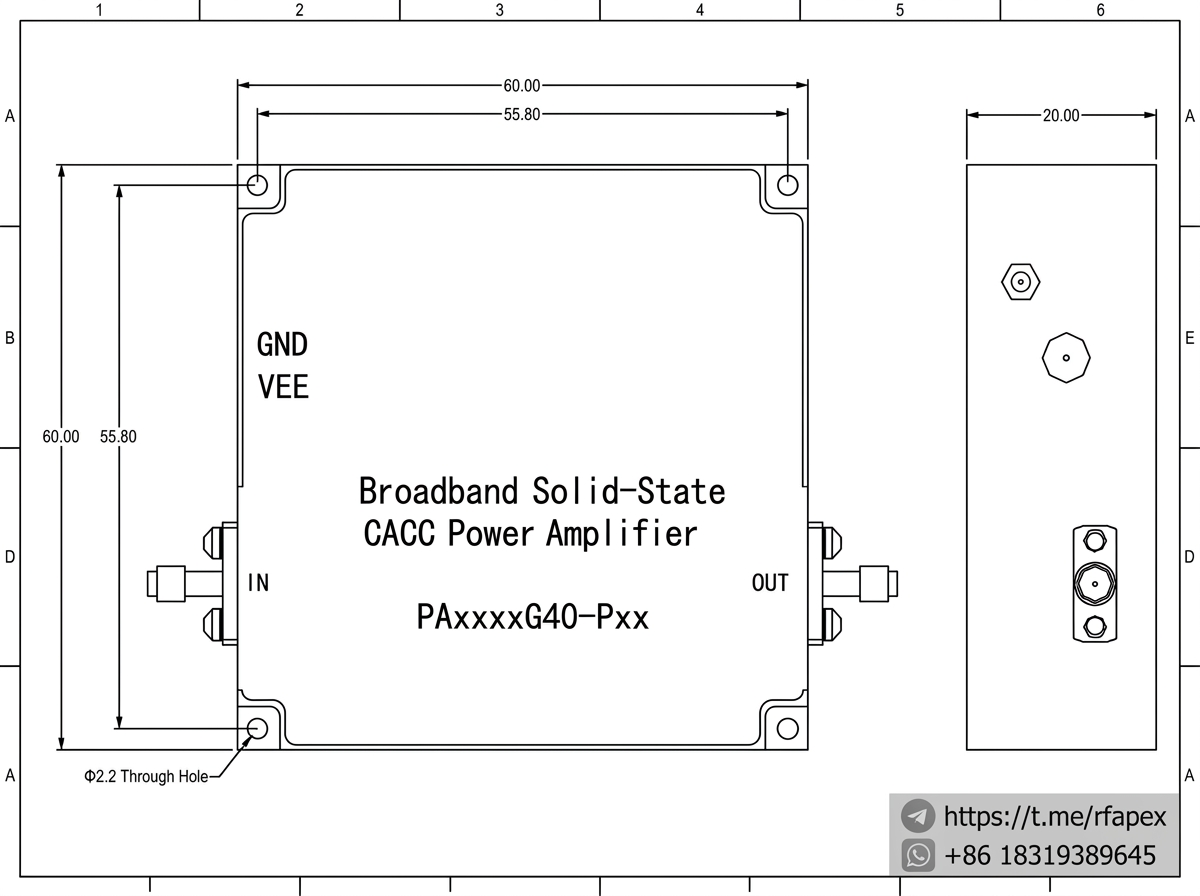

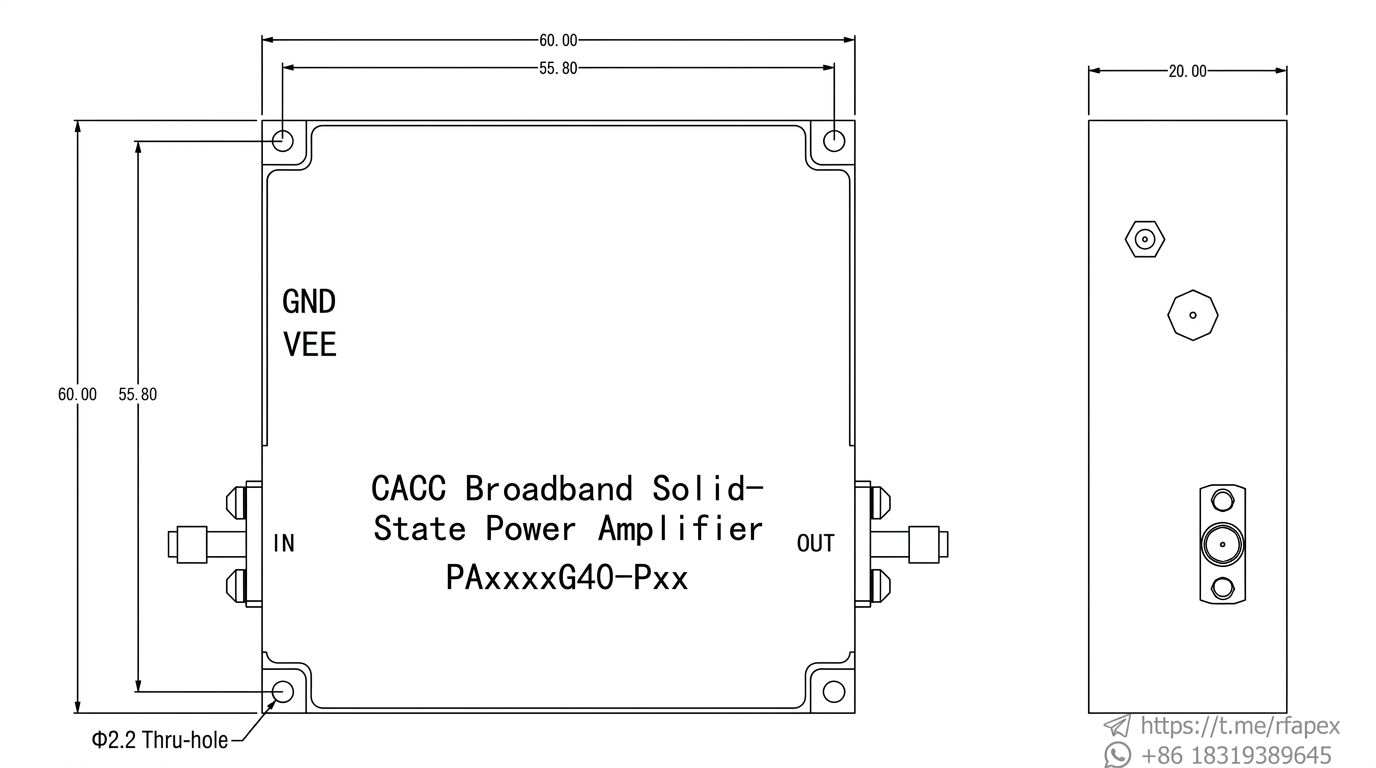

Overall Dimensions: 60 x 60 x 20 mm (Tolerance: +/- 0.3mm)

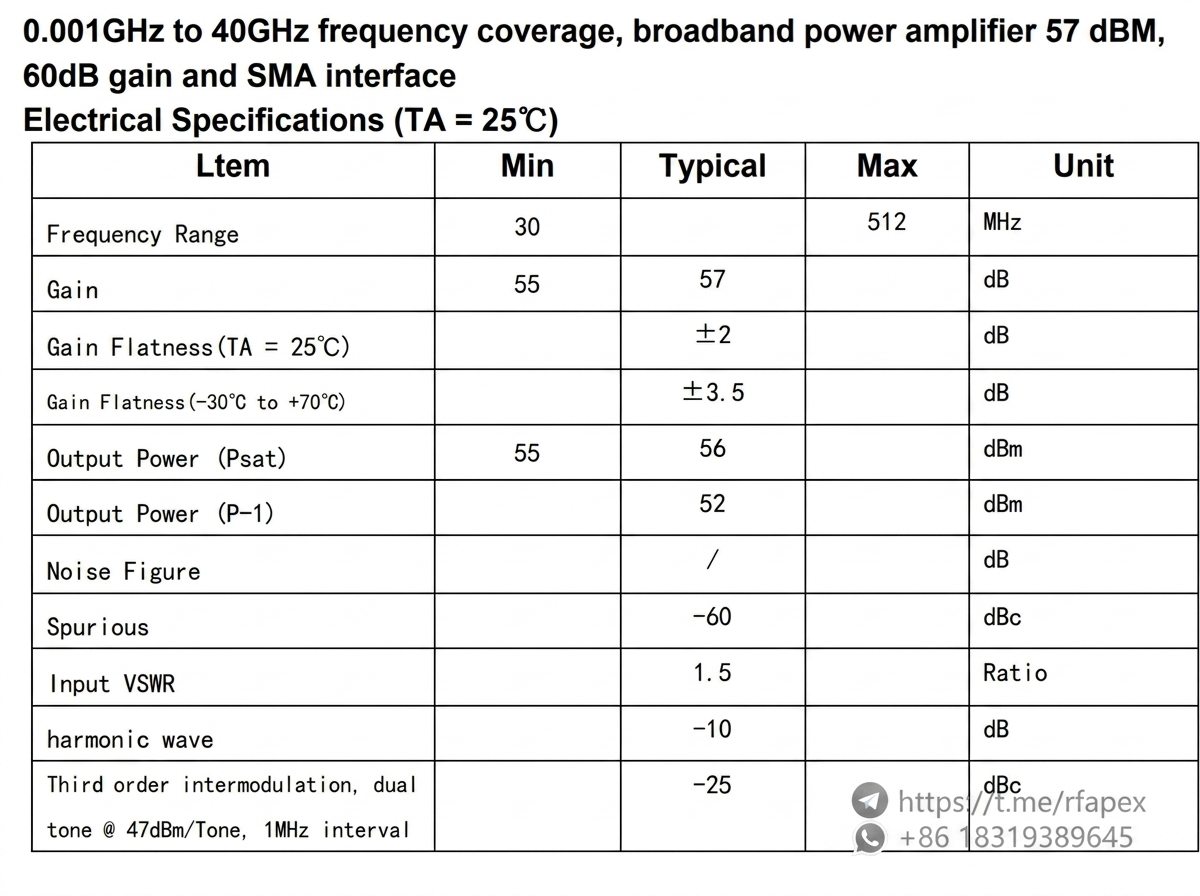

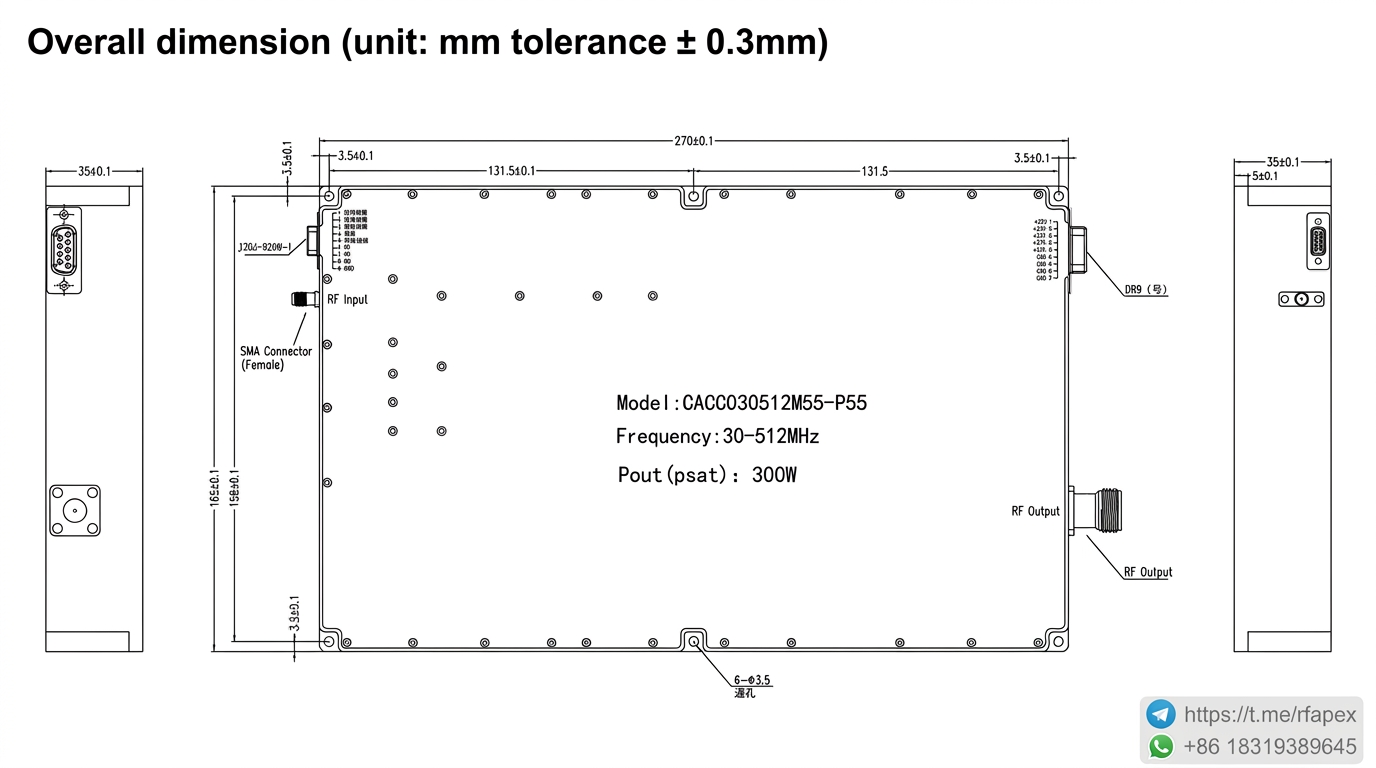

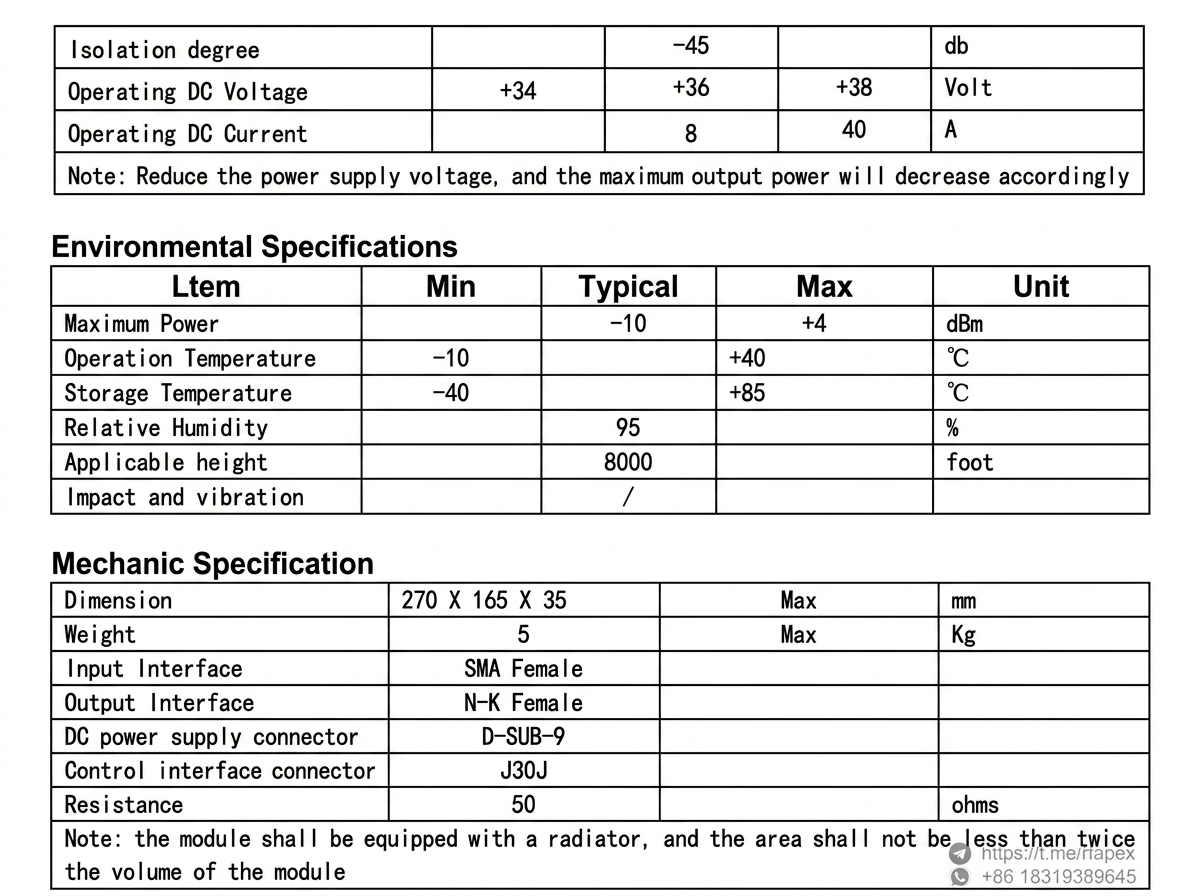

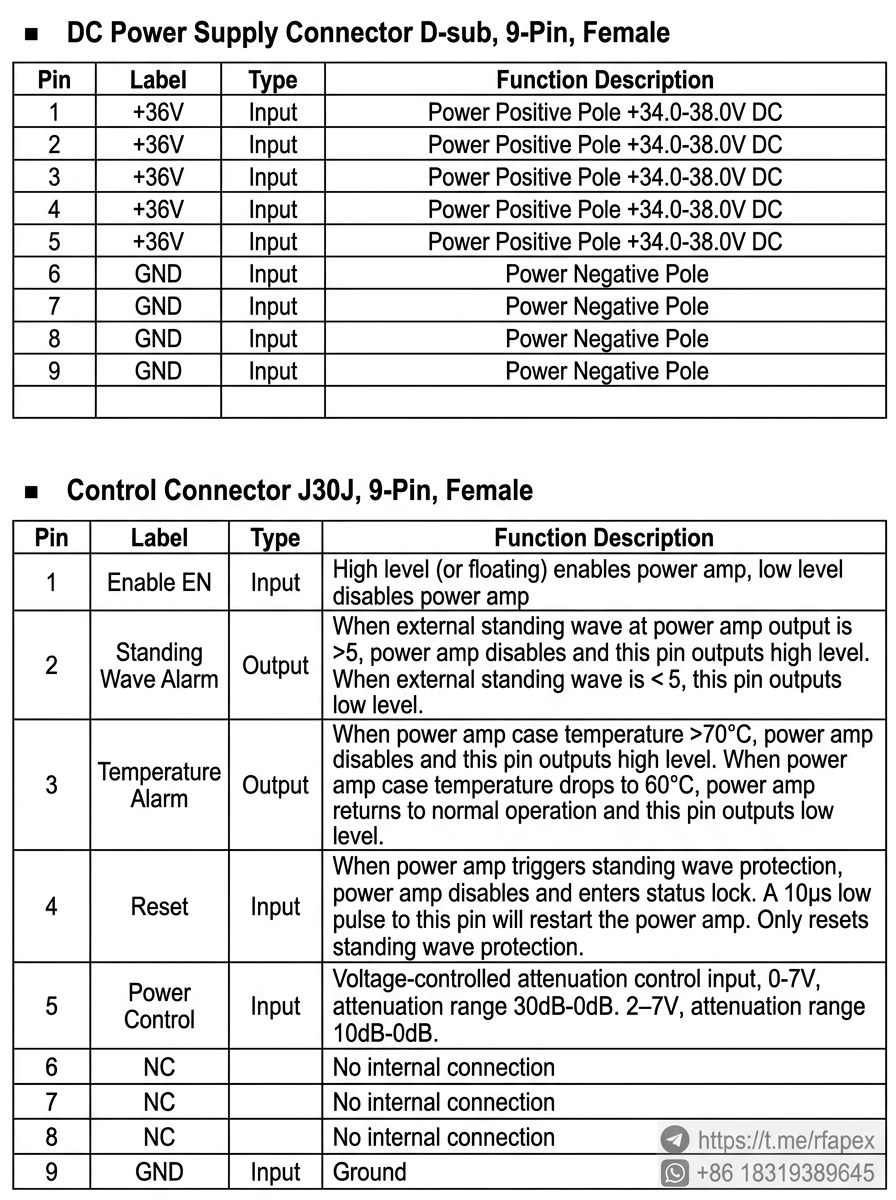

30 - 512MHz Ultra-Broadband Ultra-Compact 300W SSPA Module

- Frequency Range: 30 - 512 MHz

- Gain: >= 55 dB (Typ)

- Output Power (Psat): >= 56 dBm (Typ)

- Operating Voltage: +36V DC

- Current Consumption: 40 A (Typ)

- Spurious: -60 dBc (Typ)

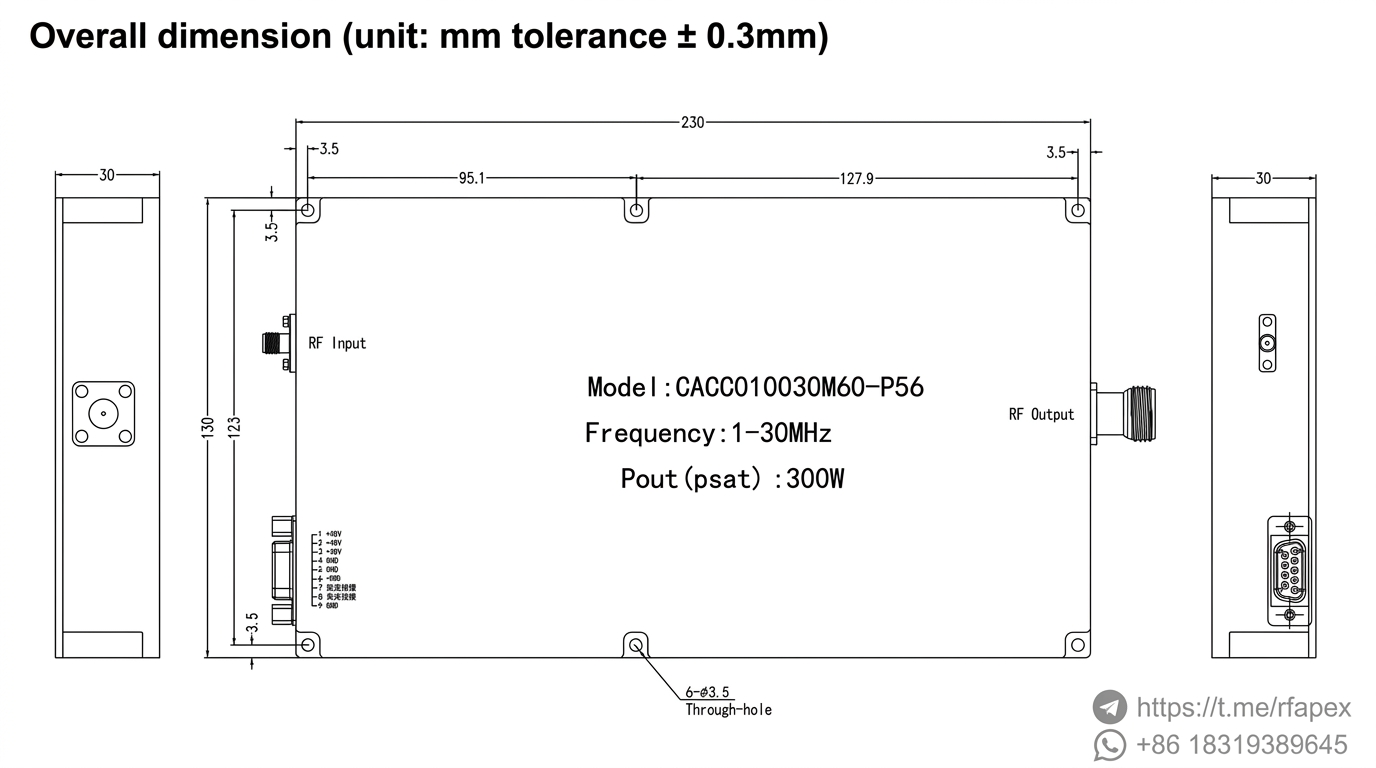

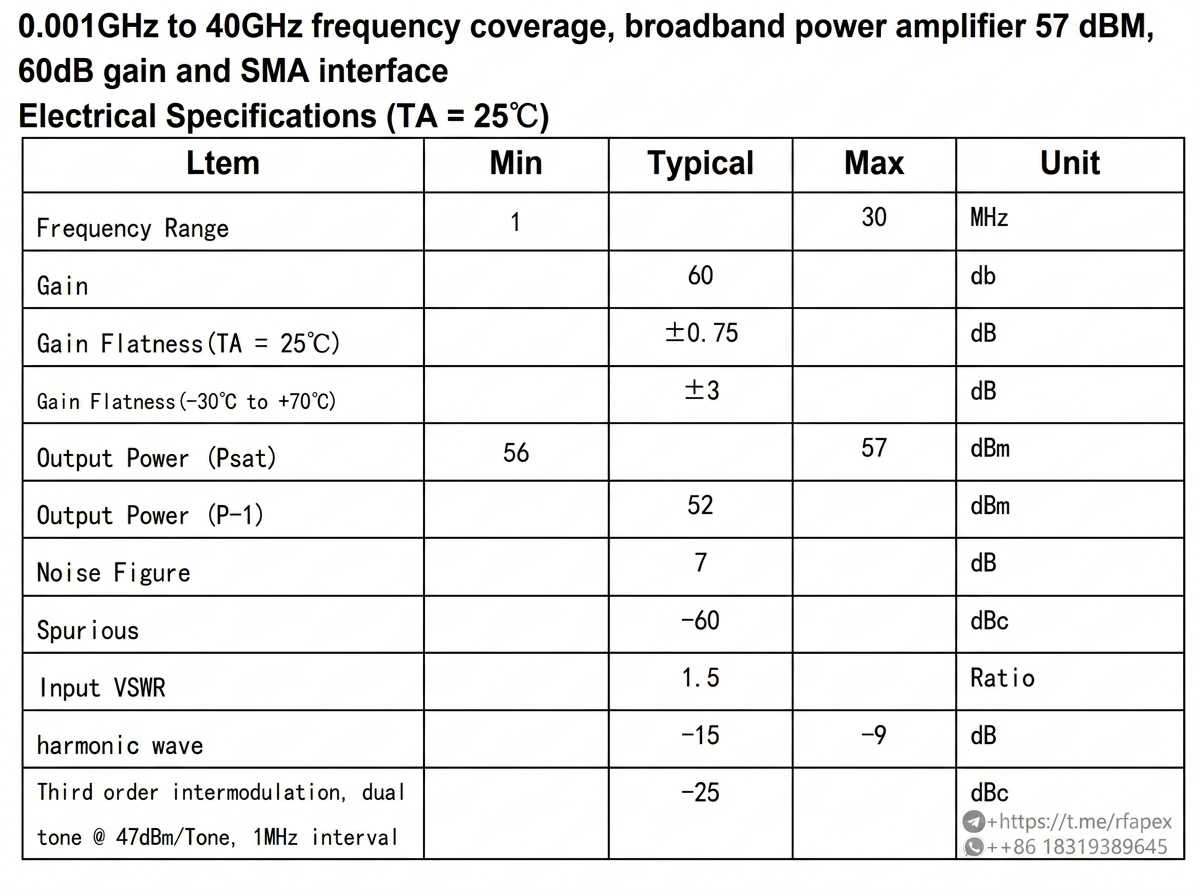

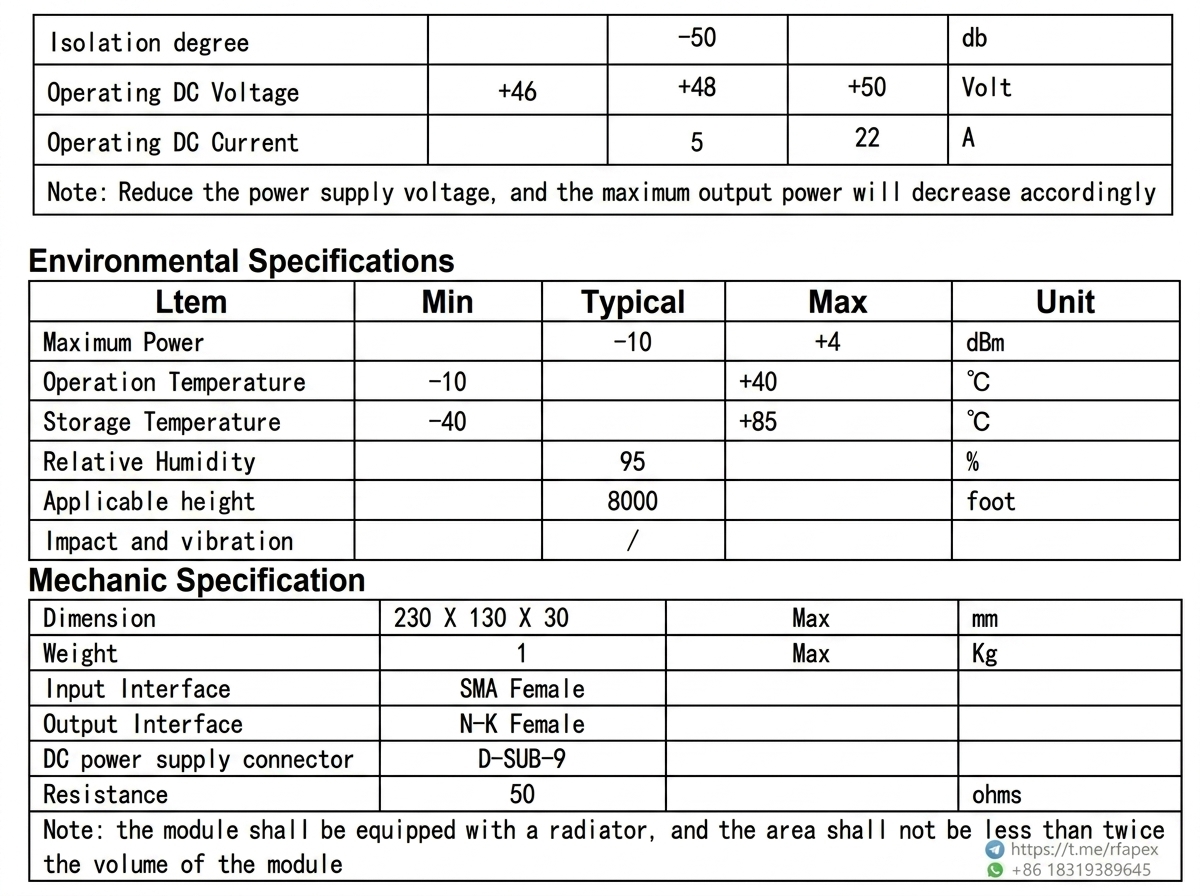

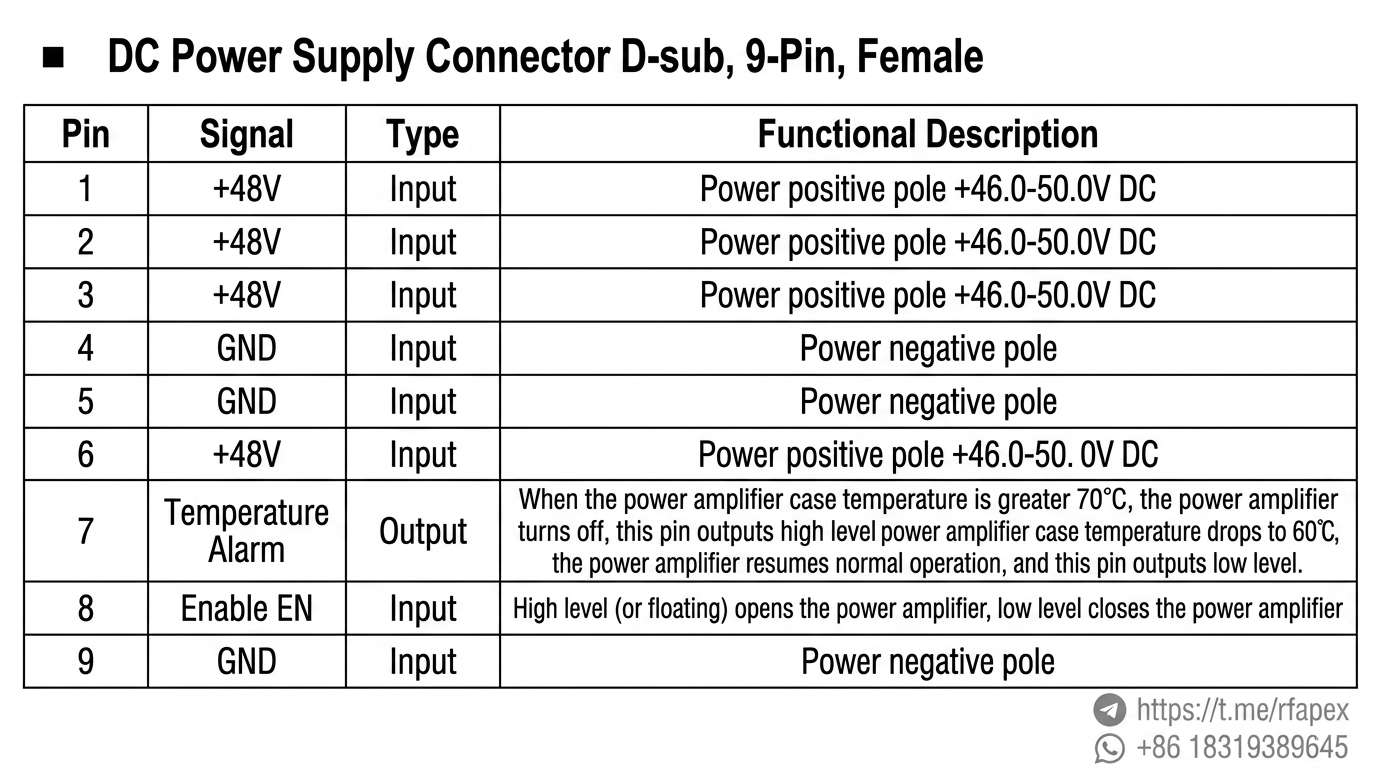

1 - 30MHz Ultra-Broadband Ultra-Compact 300W SSPA Module

- Frequency Range: 1 - 30 MHz

- Gain: >= 60 dB (Typ)

- Output Power (Psat): >= 56 dBm (Typ)

- Operating Voltage: +48V DC

- Current Consumption: 22 A (Typ)

- Spurious: -60 dBc (Typ)

18 - 26.5GHz Ultra-Broadband Ultra-Compact 10W SSPA Module

- Frequency Range: 18 - 26.5 GHz

- Gain: >= 40 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Operating Voltage: +20V DC

- Current Consumption: 2.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: 2.4mm-K (Female)

Overall Dimensions: 60 x 60 x 20 mm

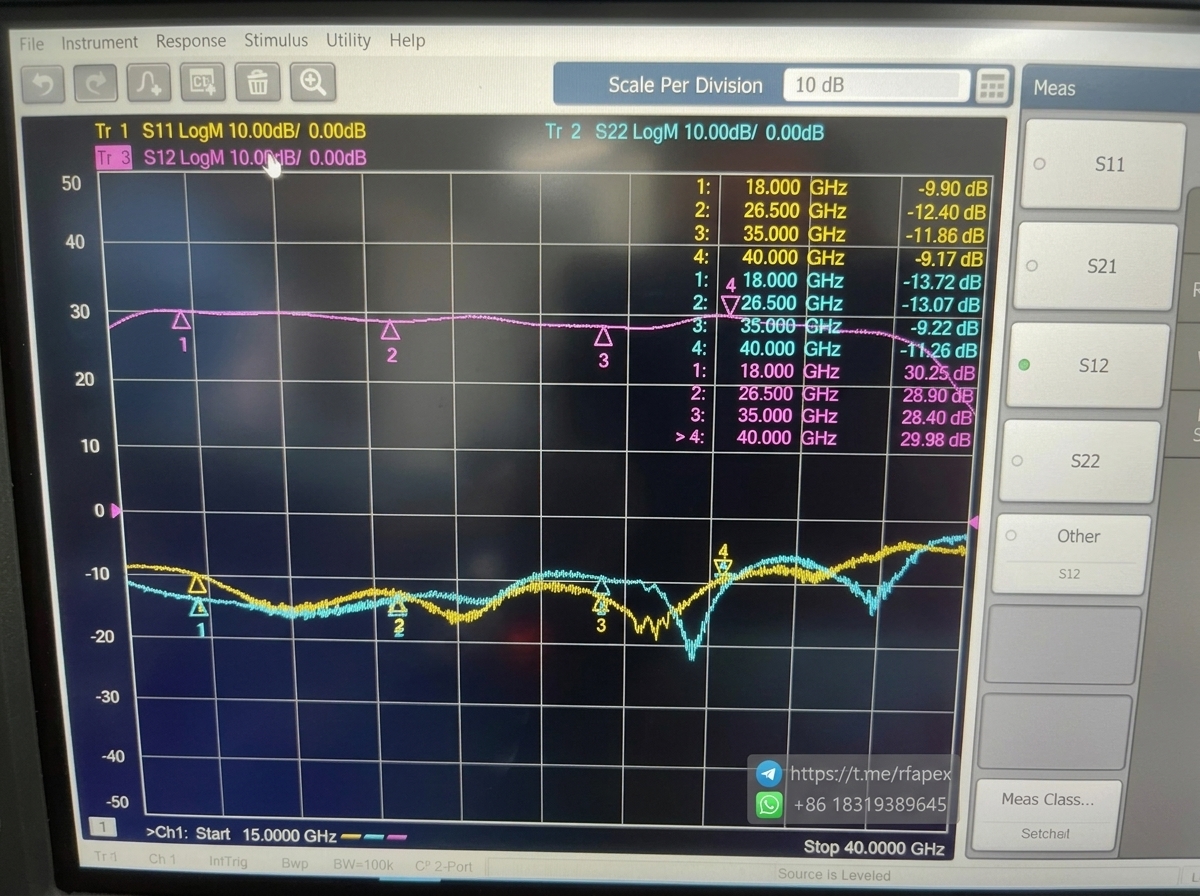

18 - 40GHz Ultra-Broadband Ultra-Compact Low Noise Amplifier (LNA)

- Frequency Range: 18 - 40 GHz (Tested: 16 - 44 GHz)

- Gain: >= 30 dB (Typ)

- Gain Flatness: +/- 1.5 dB (Typ)

- Noise Figure (NF): <= 3.0 dB (Typ)

- Output P1dB: >= 13 dBm (Typ)

- Operating Voltage: +5V DC

- Current Consumption: 0.23 A (Typ)

- VSWR: <= 1.7 (Typ)

- RF Interface: 2.4mm-K (Removable 0.3mm Pin)

Overall Dimensions: 25 x 15 x 6 mm

17 - 28GHz Ultra-Broadband Ultra-Compact 1W SSPA Module

- Frequency Range: 17 - 28 GHz

- Gain: >= 30 dB (Typ)

- Output Power (Psat): >= 30 dBm (Typ)

- Operating Voltage: +6V DC

- Current Consumption: 1.1 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

Overall Dimensions: 45 x 35 x 18 mm

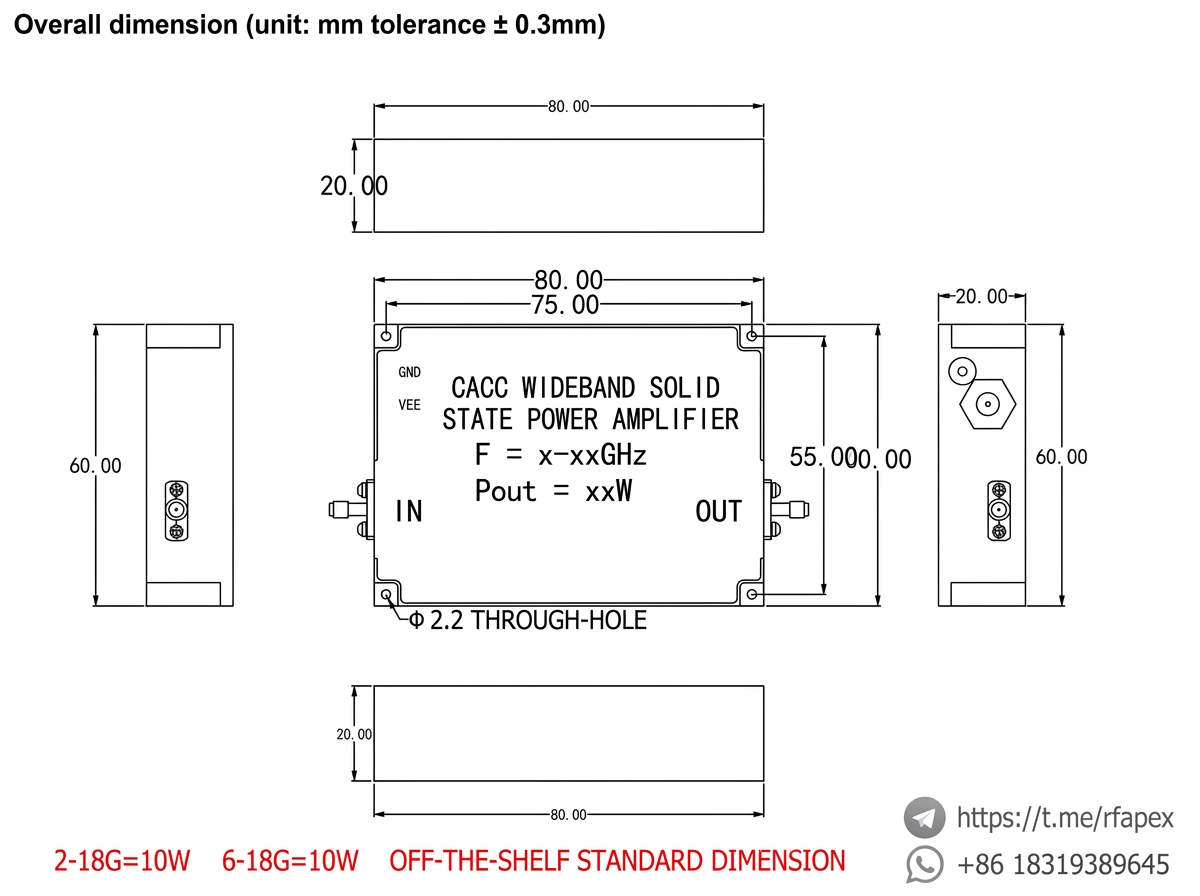

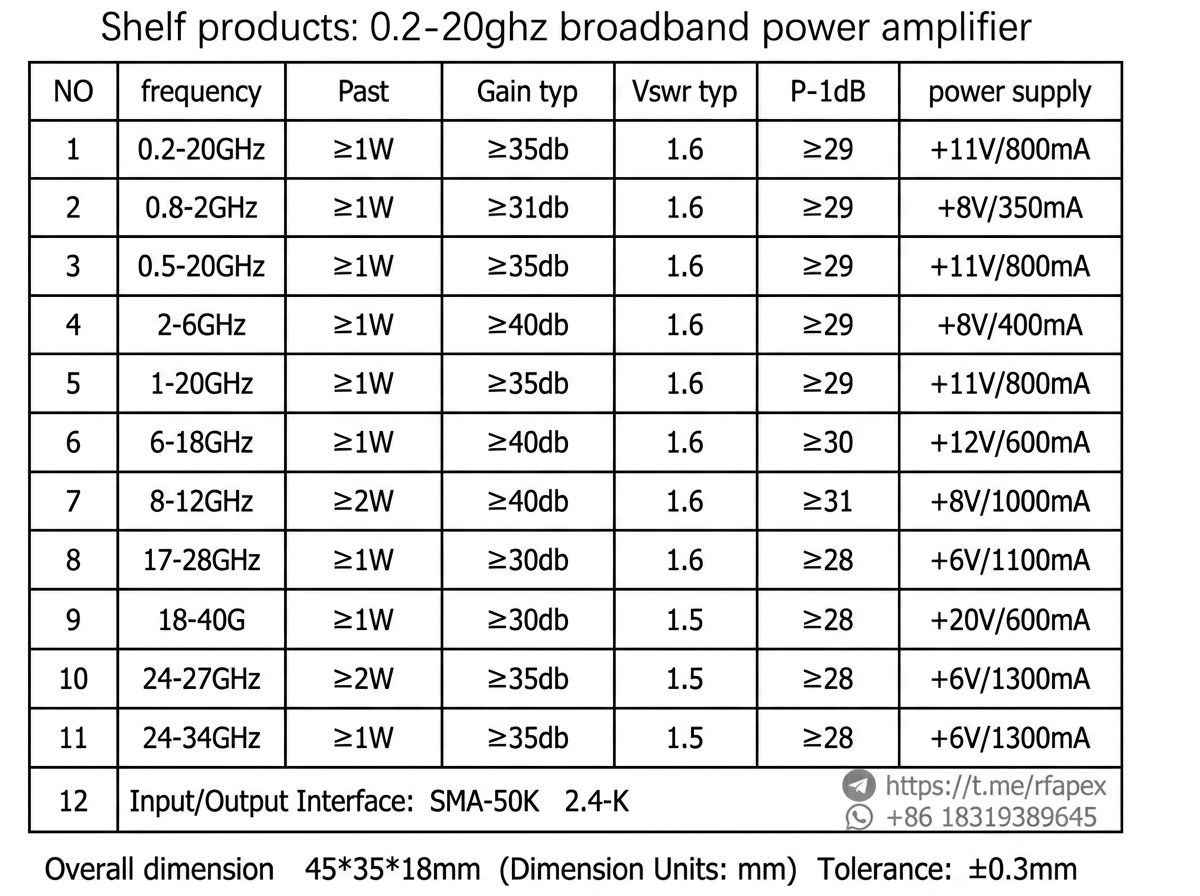

Off-the-shelf Products: 0.2 - 40 GHz Broadband Power Amplifiers

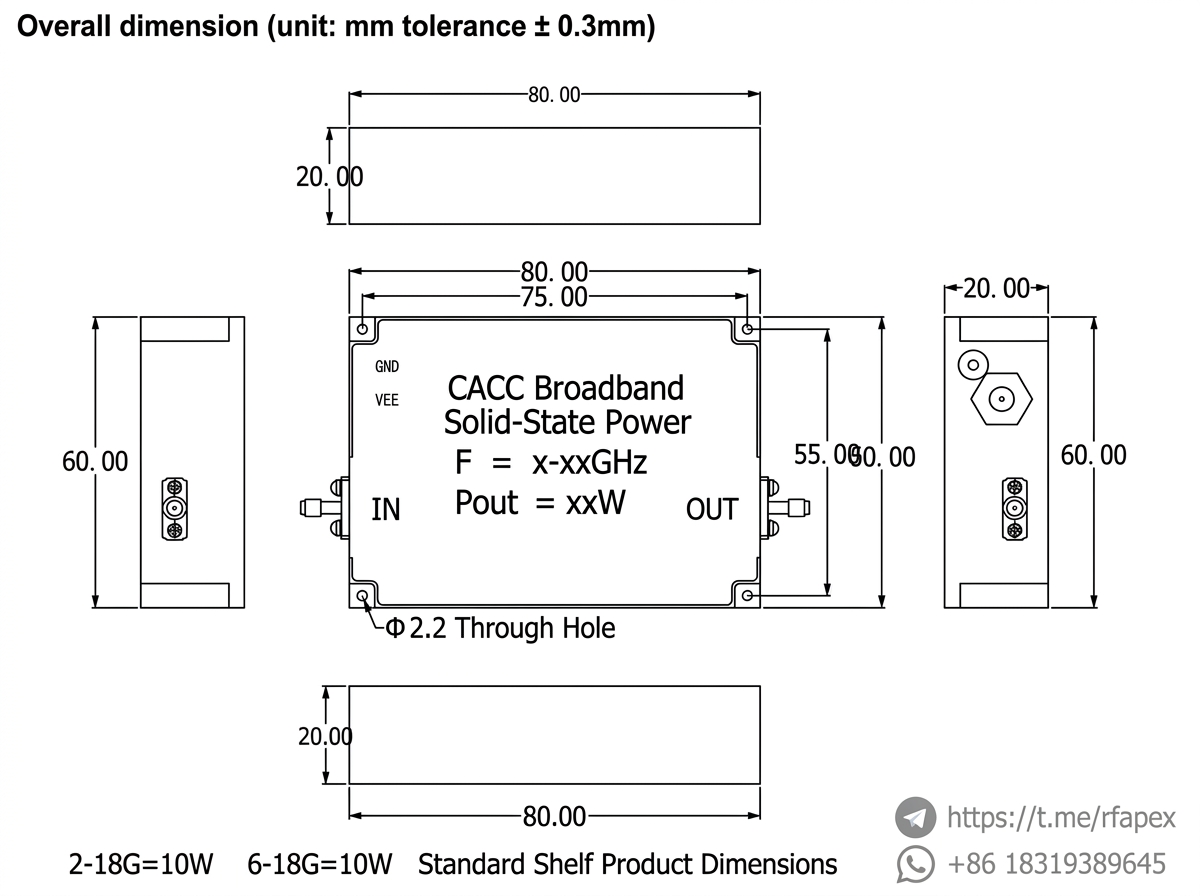

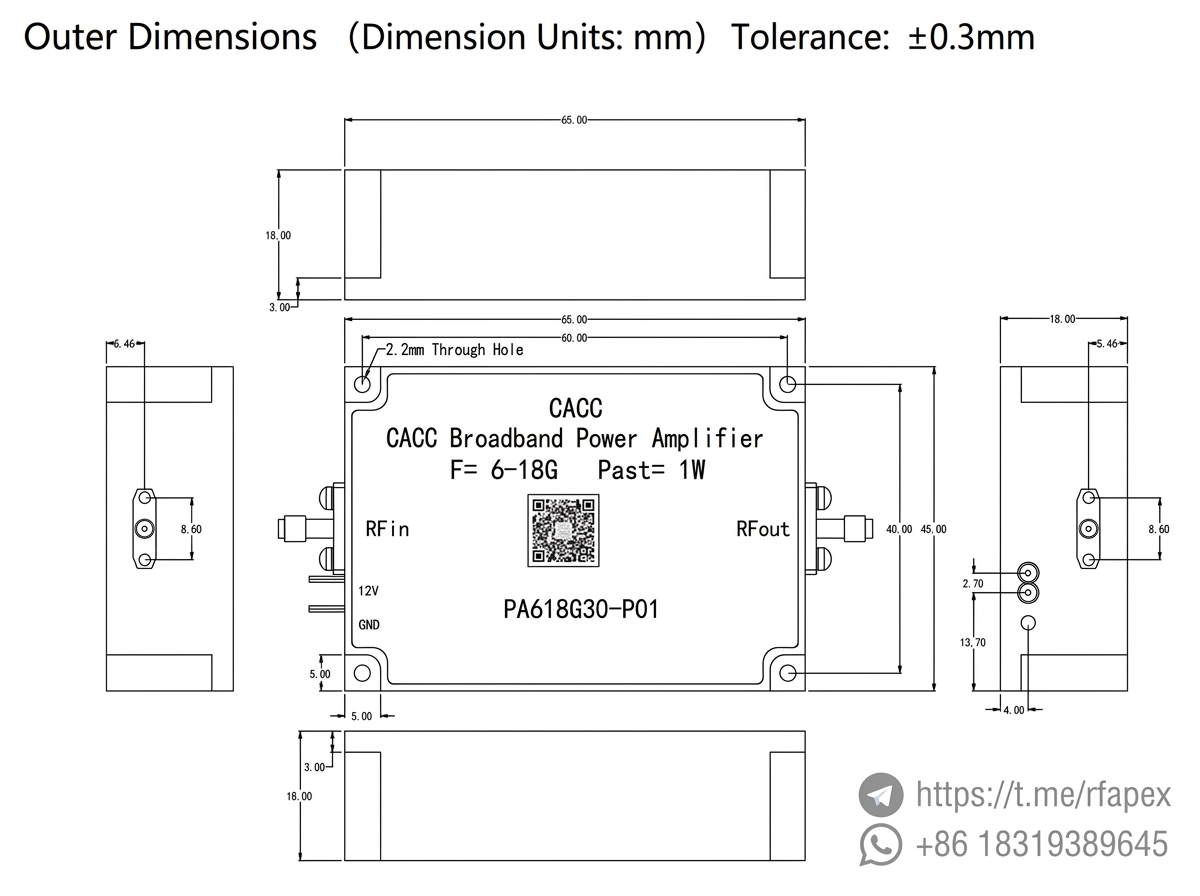

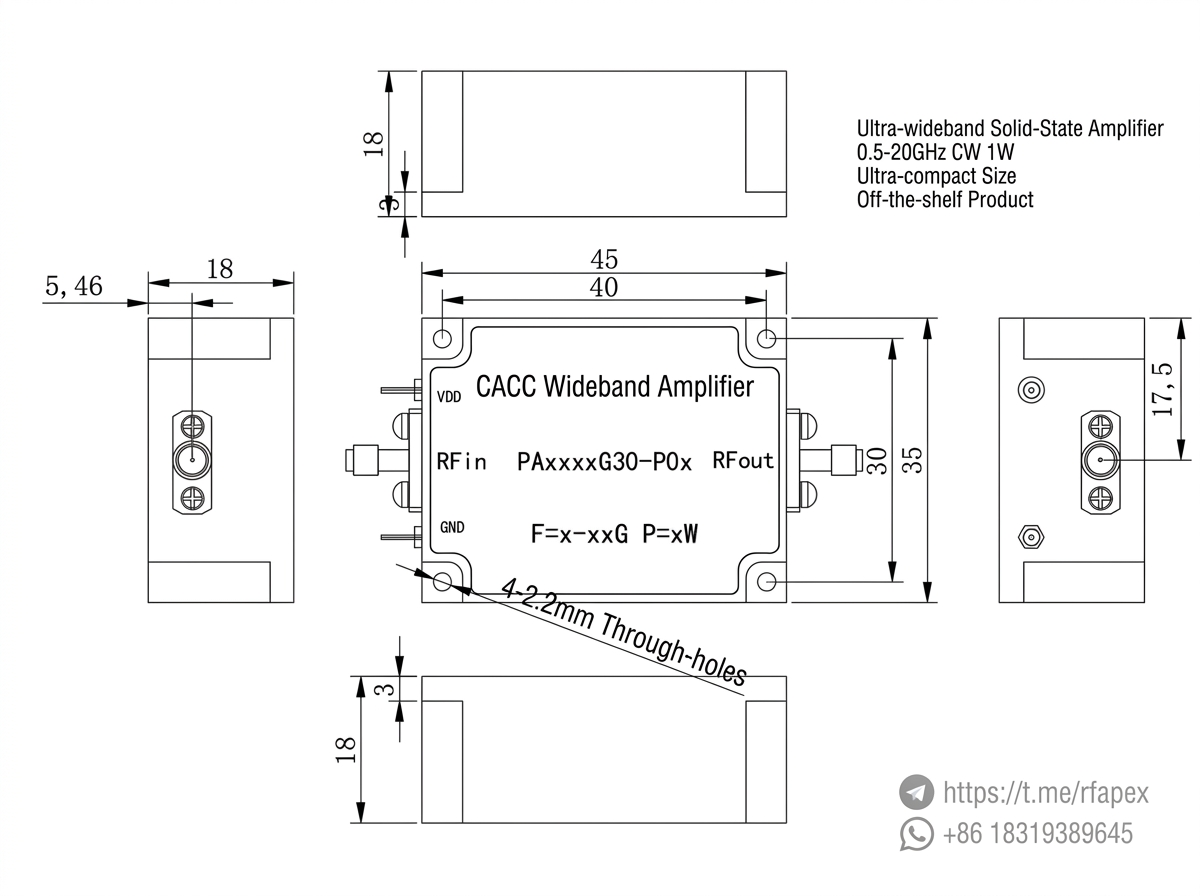

Overall dimension45*35*18mm（Dimension Units: mm）Tolerance: ±0.3mm

2 - 18GHz Compact 10W SSPA Module (In Stock)

- Frequency Range: 2 - 18 GHz

- Gain: >= 40 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 2.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

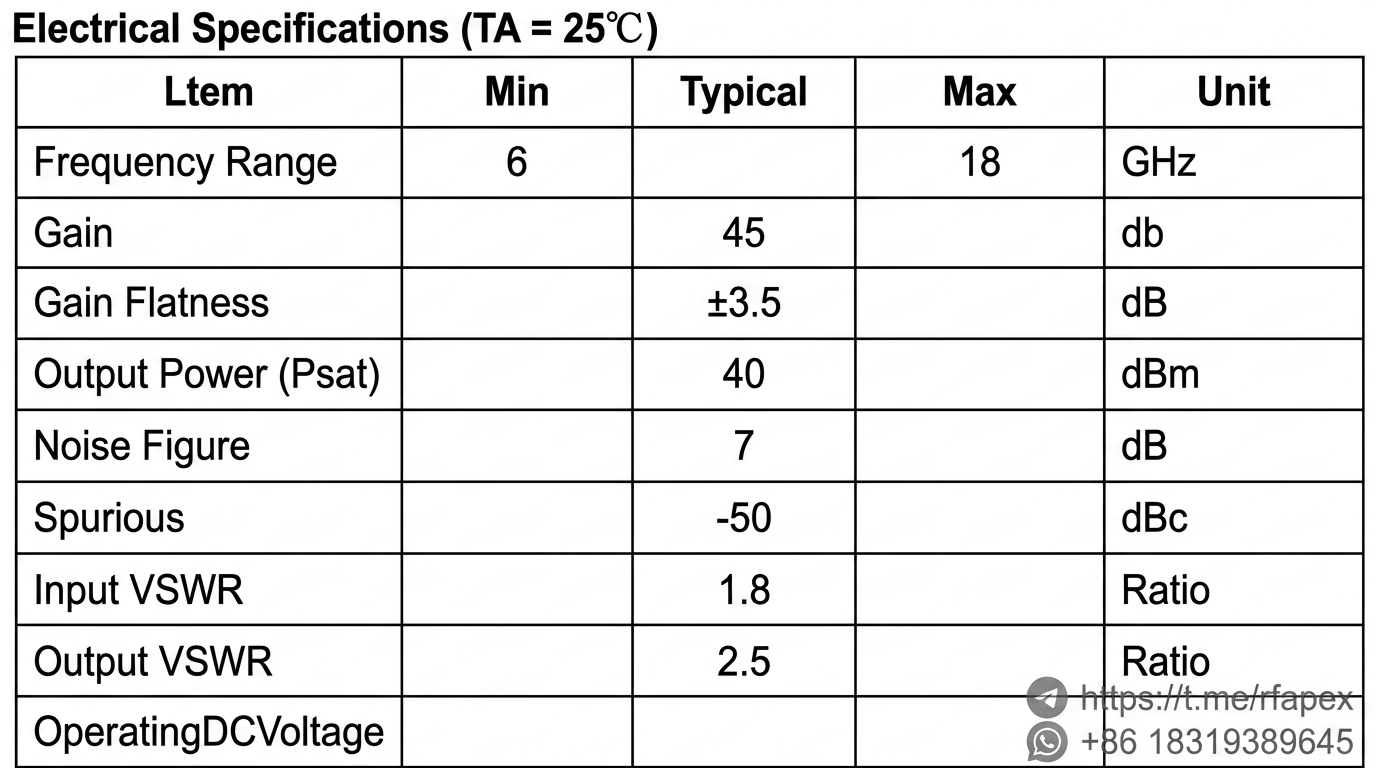

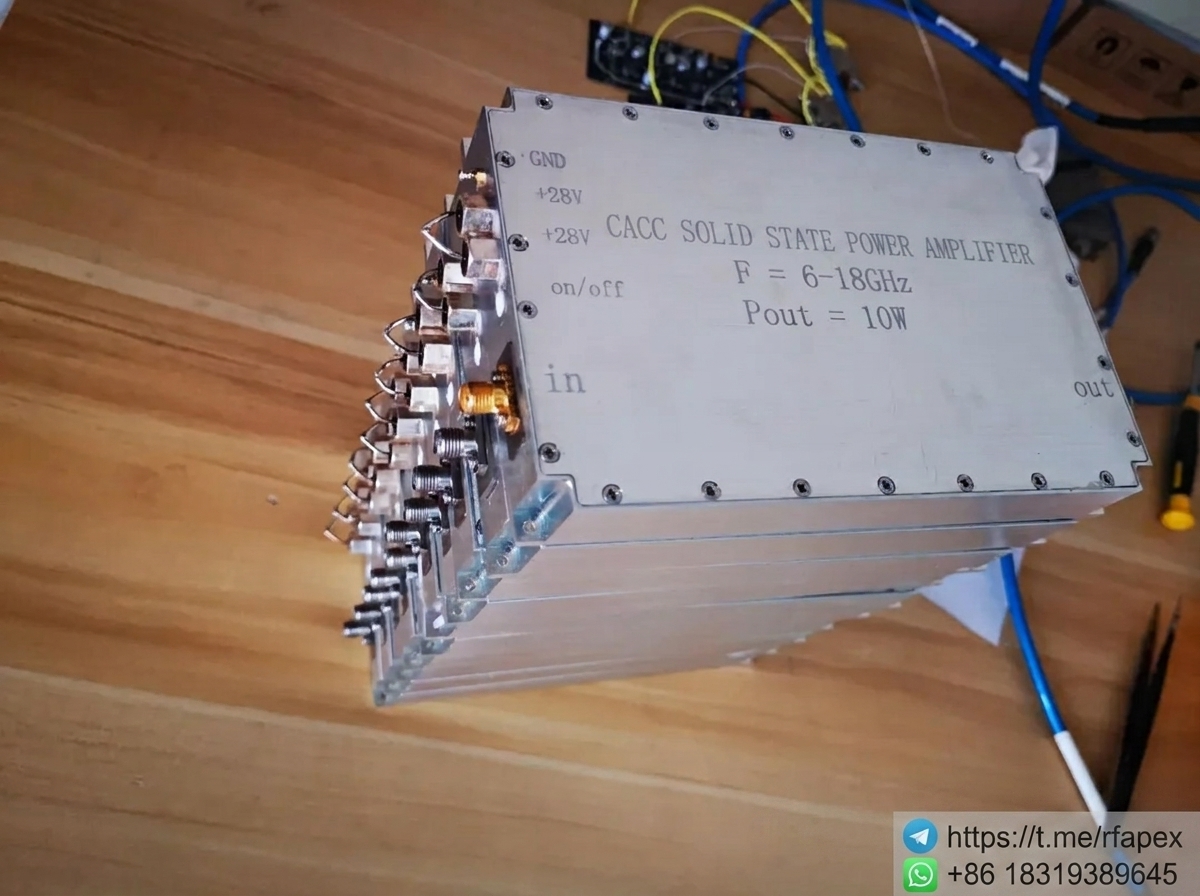

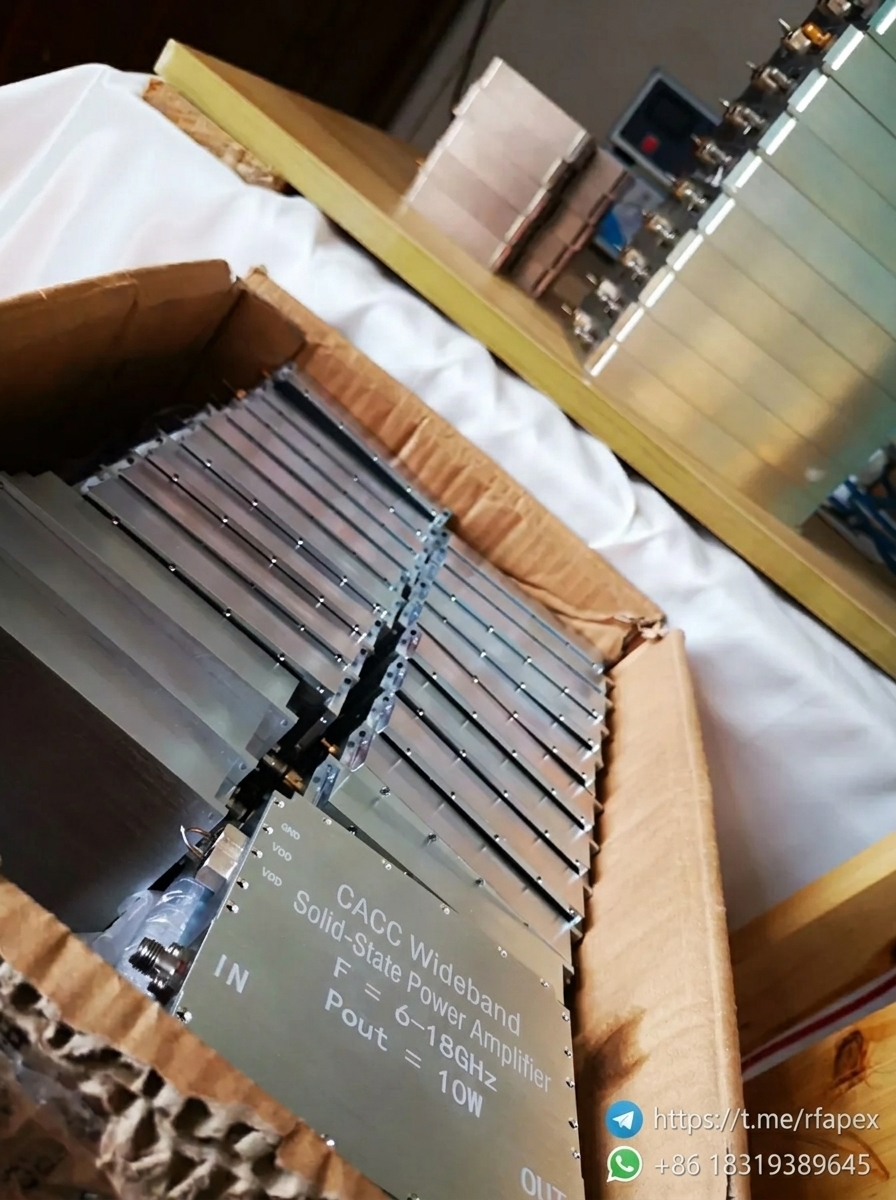

6 - 18GHz Compact 10W SSPA Module (In Stock)

- Frequency Range: 6 - 18 GHz

- Gain: >= 60 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 2.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

4 - 8GHz 40W Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 4 - 8 GHz

- Gain: >= 18 dB (Typ)

- Output Power (Psat): >= 46 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 6.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

2 - 18GHz 10W Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 2 - 18 GHz

- Gain: >= 15 dB (Typ)

- Output Power (Psat): >= 40 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 3.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

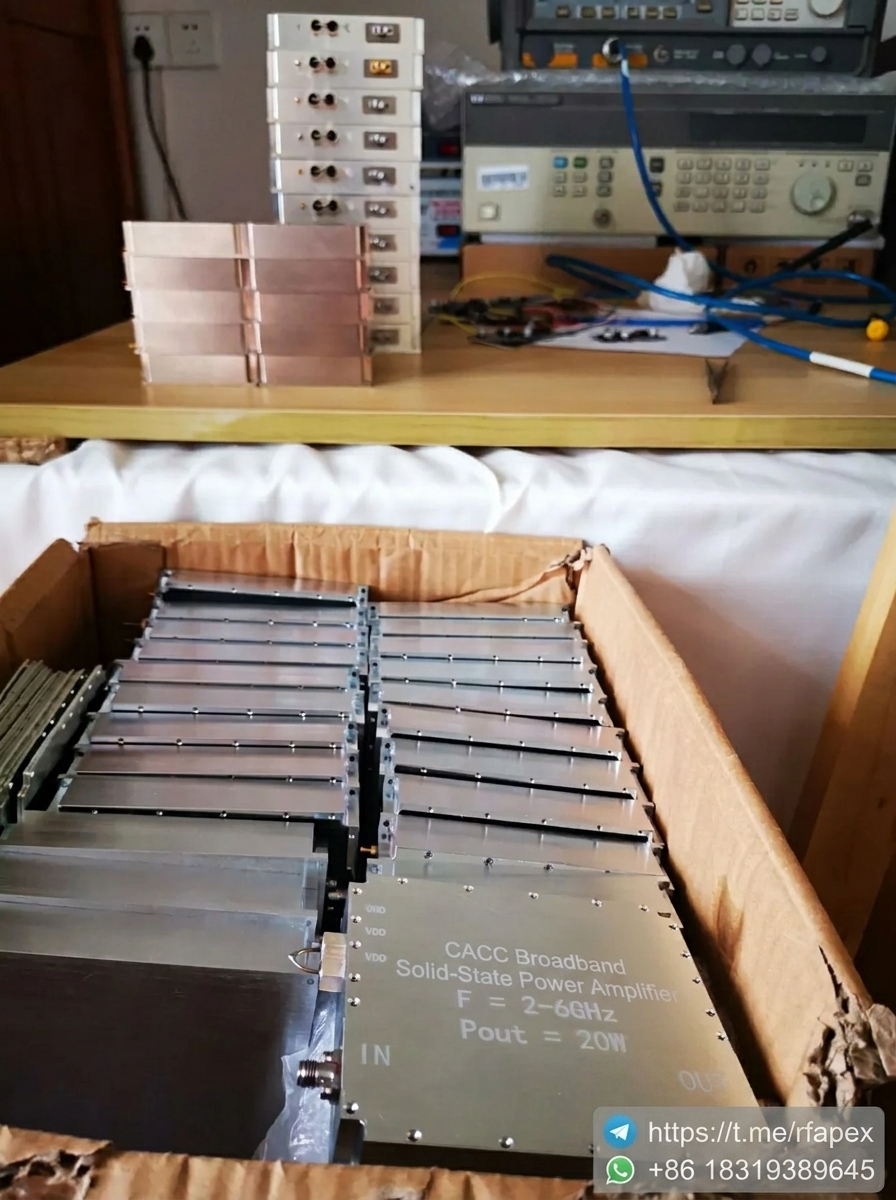

2 - 6GHz 20W Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 2 - 6 GHz

- Gain: >= 20 dB (Typ)

- Output Power (Psat): >= 43 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 3.2 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

7 - 13GHz 30W Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 7 - 13 GHz

- Gain: >= 24 dB (Typ)

- Output Power (Psat): >= 45 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 5.0 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

13.5 - 15GHz 15W Standard SATCOM Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 13.5 - 15 GHz

- Gain: >= 19 dB (Typ)

- Output Power (Psat): >= 42 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 3.0 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

6 - 18GHz 20W Final-Stage Packaged PA Module (In Stock)

- Frequency Range: 6 - 18 GHz

- Gain: >= 25 dB (Typ)

- Output Power (Psat): >= 43 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 3.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

8 - 12GHz 30W SSPA Module

- Frequency Range: 8 - 12 GHz

- Gain: >= 45 dB

- Output Power (Psat): >= 45 dBm (Typ)

- Operating Voltage: +28V DC

- Current Consumption: 4.5 A (Typ)

- Spurious: -60 dBc (Typ)

- RF Interface: SMA-Female

1 - 20GHz 1W SSPA Module

- Frequency Range: 1 - 20 GHz

- Gain: >= 35 dB

- Output Power (Psat): >= 30 dBm

- Operating Voltage: +12V DC

- RF Interface: SMA-Female

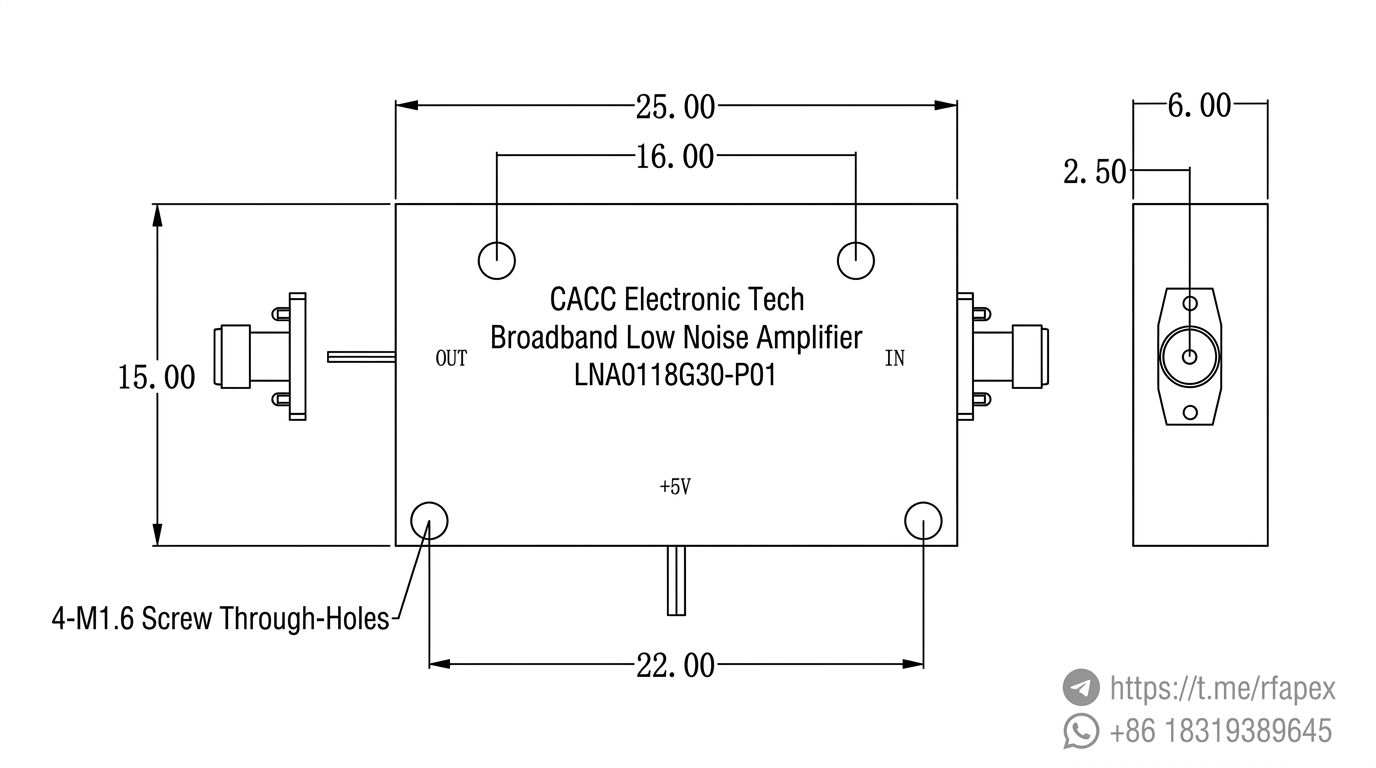

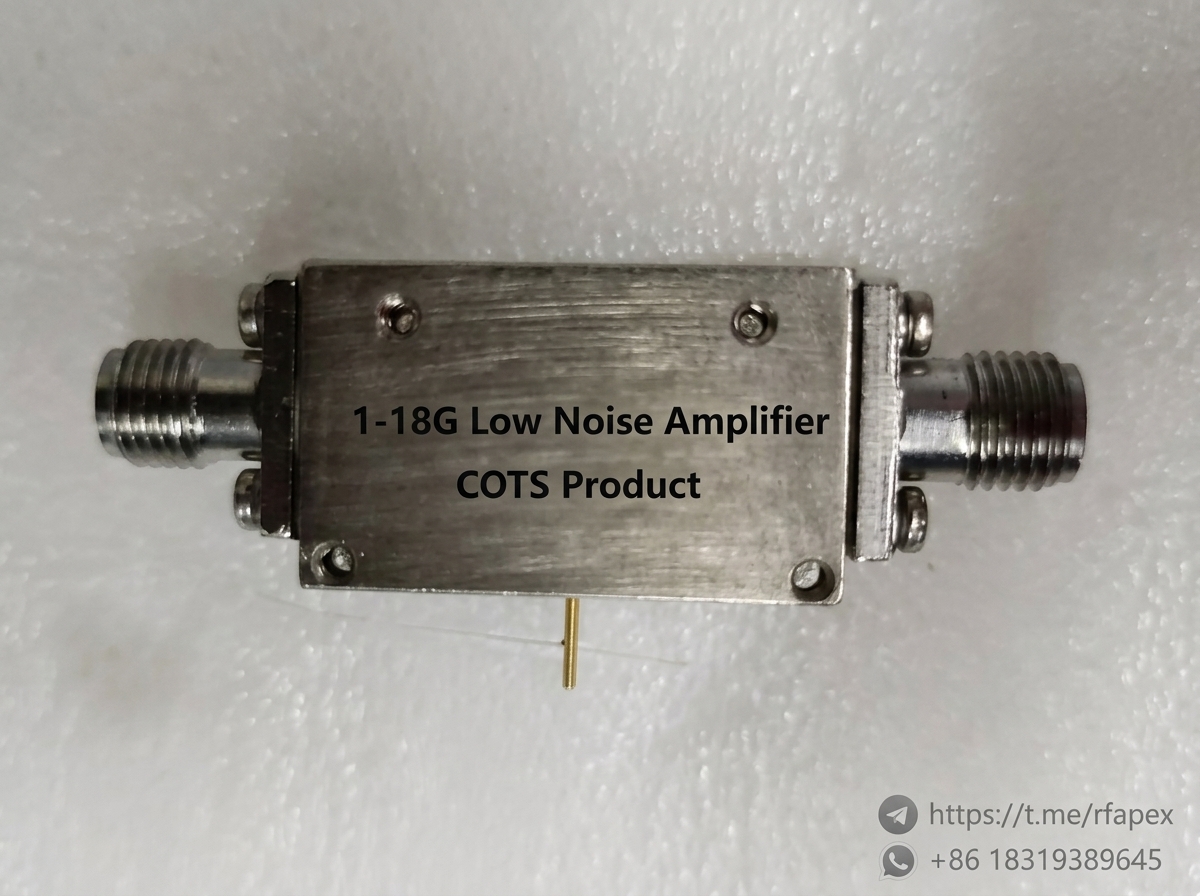

nProductmodel:LNA0118G30-P14

nFrequency:1GHz-18GHz

nOutputgain:≥30dBor40dB

nInputstandingwave:1:1.5typ

nOutputstandingwave:1:1.7typ

nNF：≤1.6db

nPowersupply：+5V/≤100mA

nInterface:SMAdetachable0.4mmpin

nFeedinterface:insulatorpin0.7mm

nShaperequirements（Dimension±0.3mm）

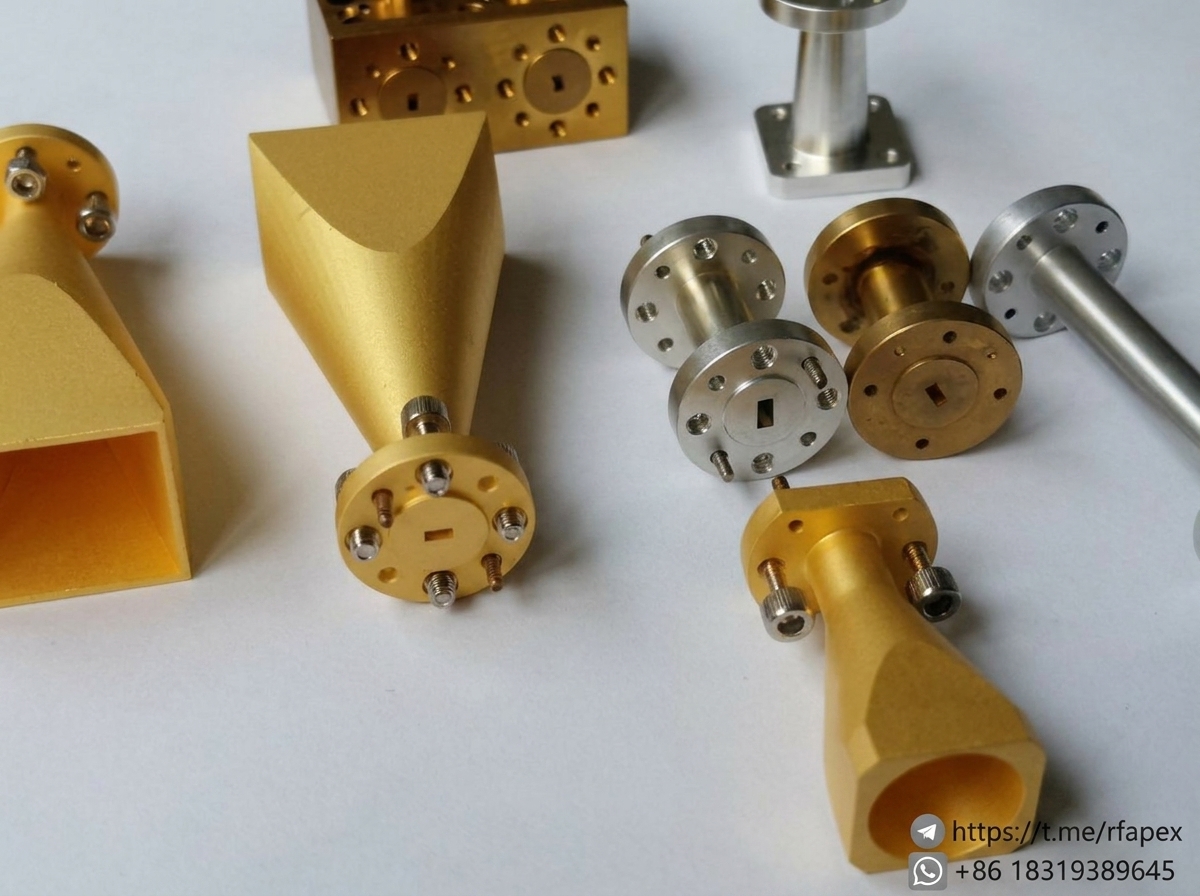

RF Apex specializes in the R&D, production, and sales of microwave, millimeter-wave, and terahertz power dividers, hybrids, directional couplers, baluns, transformers, 5G filters, and solid-state power amplifiers (SSPAs). Covering frequencies from 9 kHz to 110 GHz, our high-performance power devices serve as direct drop-in replacements for equivalent components from Mini-Circuits, MACOM, Synergy, Yantel, Werlatone, IPP, and others, with fully customized optimization available.

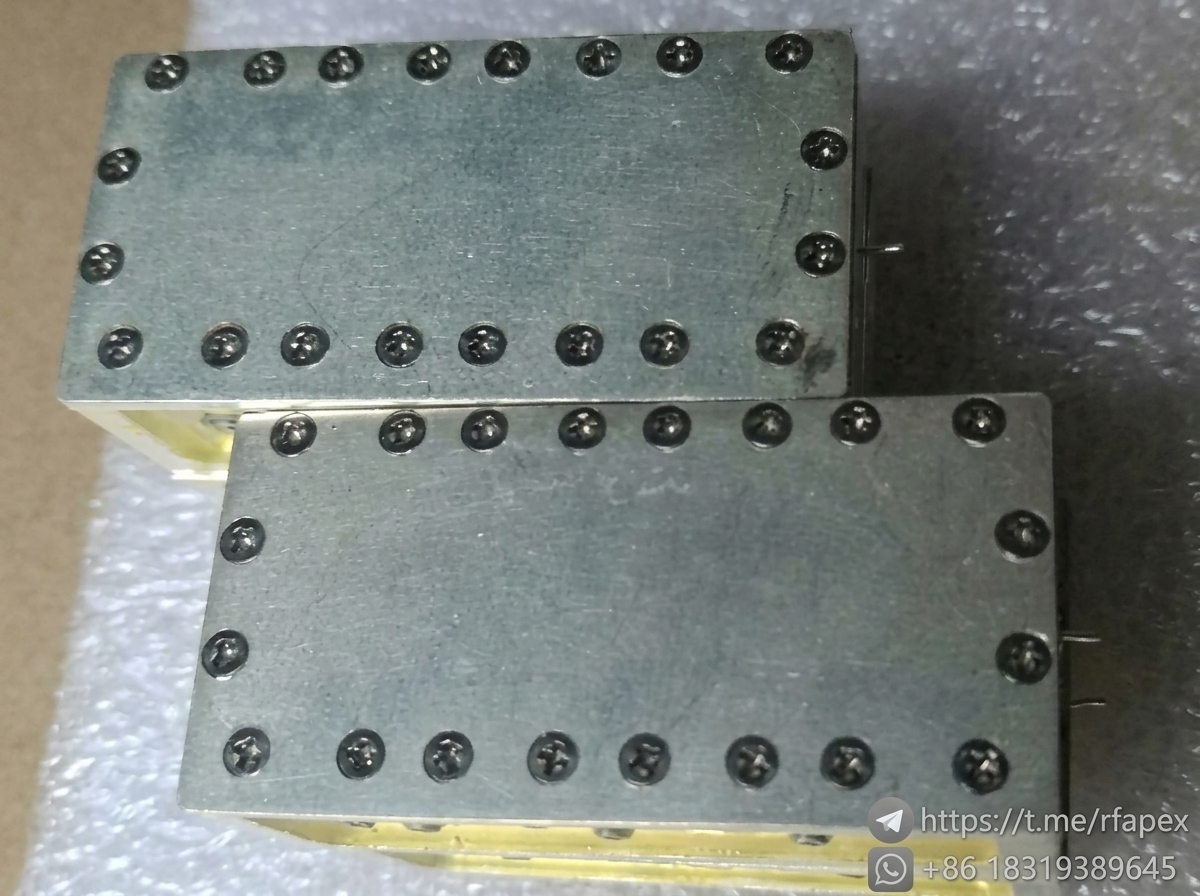

RF Apex Technology Ultra-Broadband Components Overview:

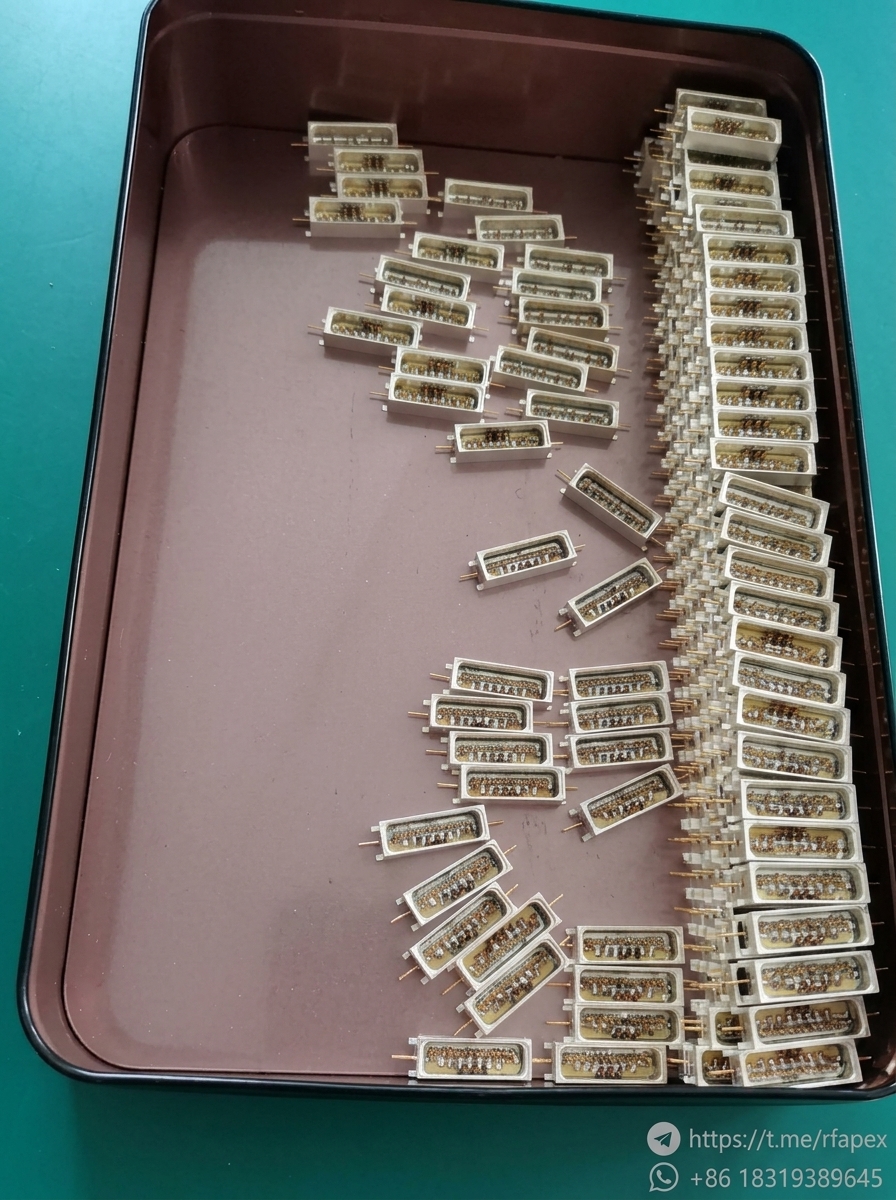

- Baluns & Transformers: Frequency coverage from 0.3 to 6 GHz. Includes single-ended to differential balanced configurations, with 1:1 to 1:16 transformation ratios across coupled and transmission-line types.

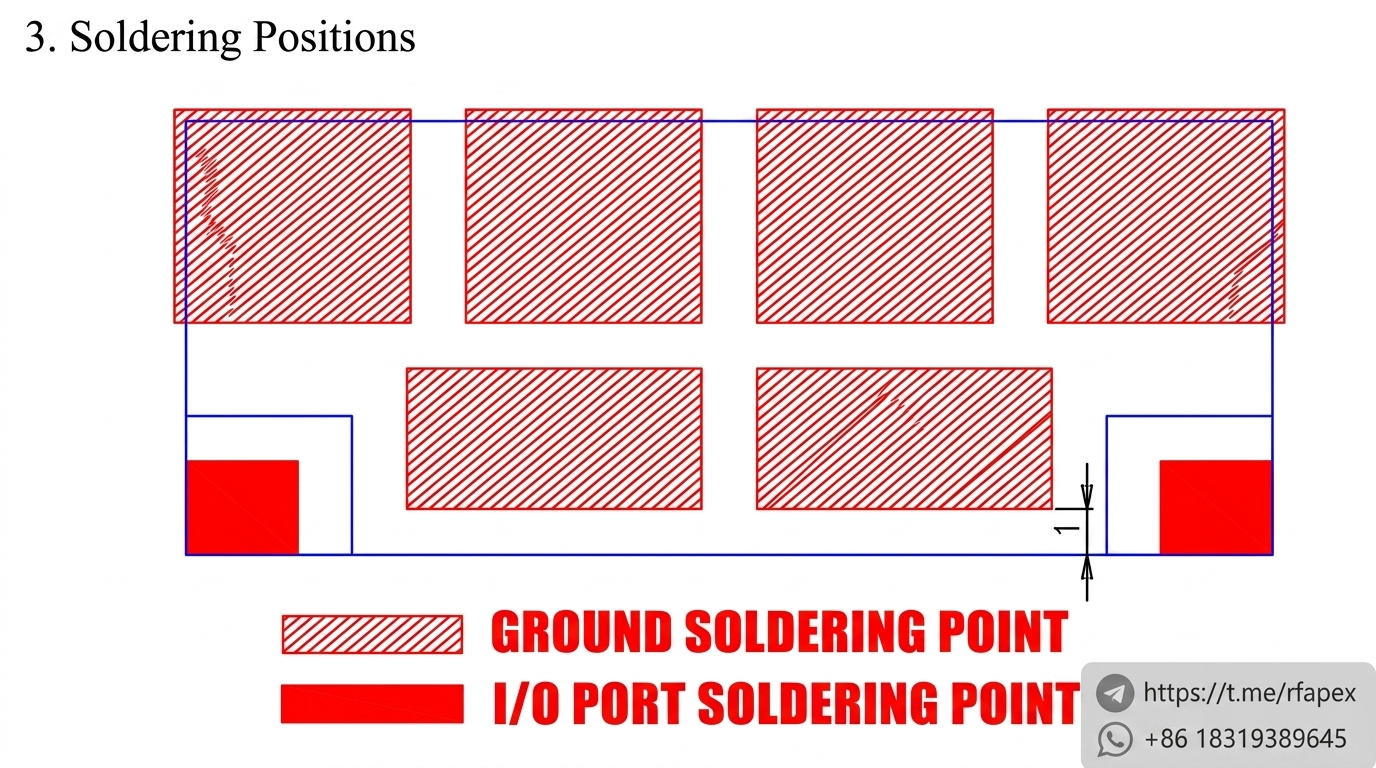

- Directional Couplers: 9 kHz to 110 GHz frequency range. Surface-mount (SMD) small-signal and high-power couplers with customizable coupling values from 6 to 70 dB.

- Power Dividers: 0.3 to 110 GHz power dividers, including 2-, 3-, 4-, and 5-way SMD models, and multi-way (6 to 64 ways) connectorized signal splitters. High-power models (10–500 MHz, 500–1000 MHz, 200W–2000W) available for custom orders.

- Hybrids / Bridges: Covering 5 MHz to 1000 MHz. 90-degree and 180-degree hybrids, customizable up to >18x octave bandwidths.

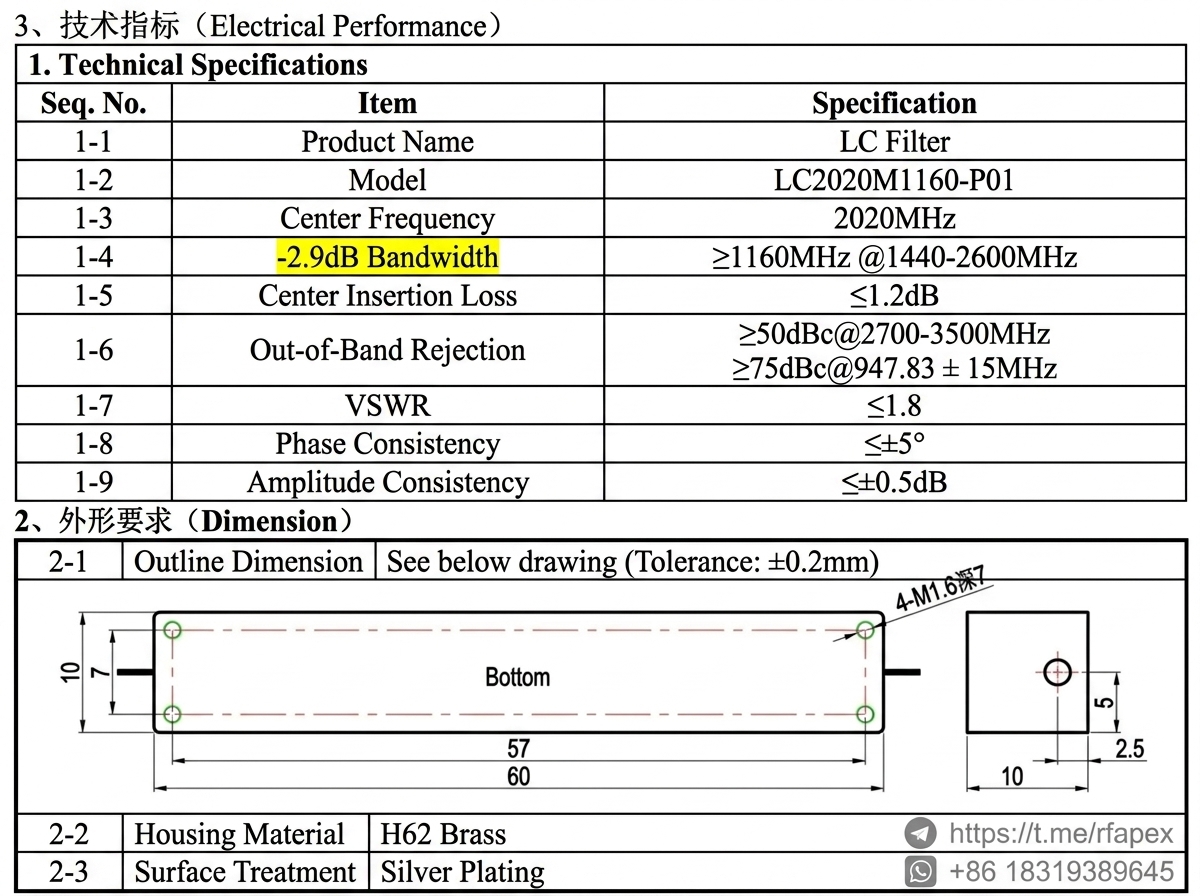

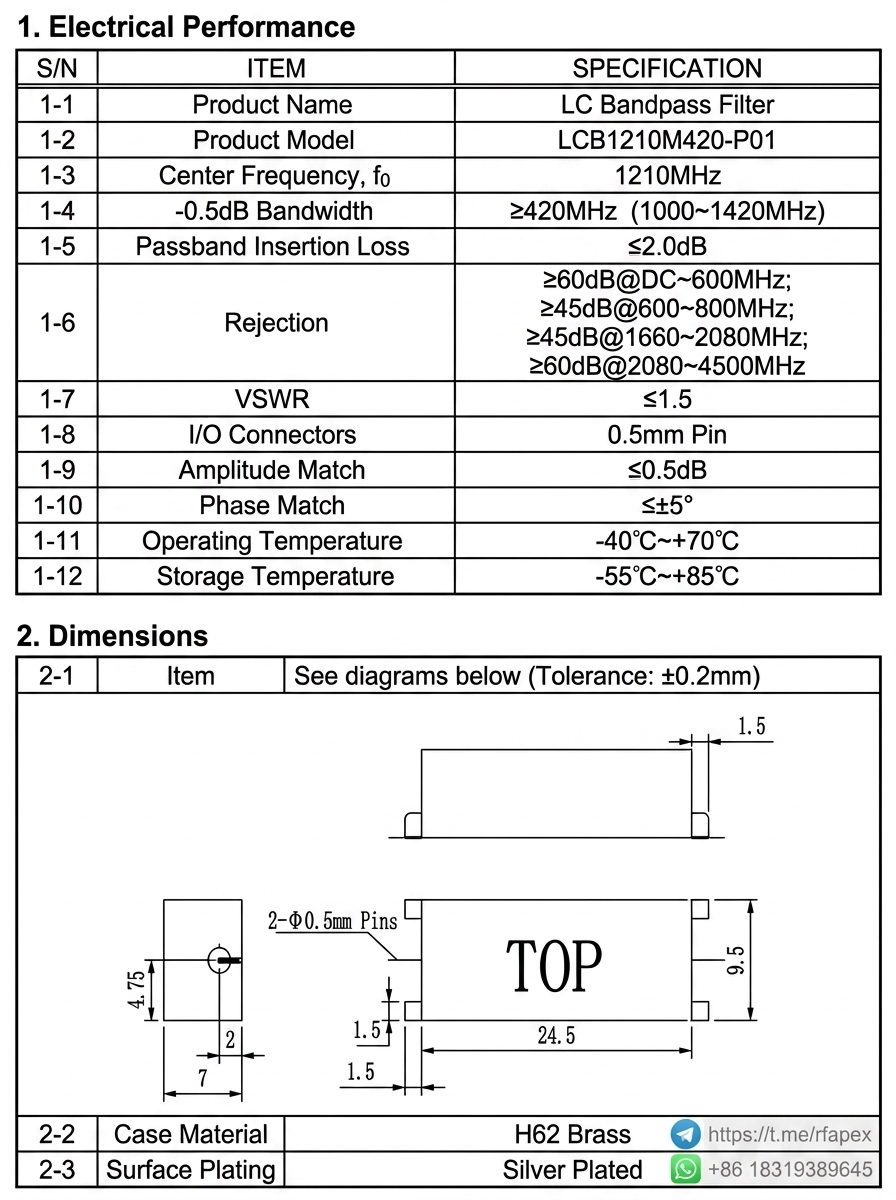

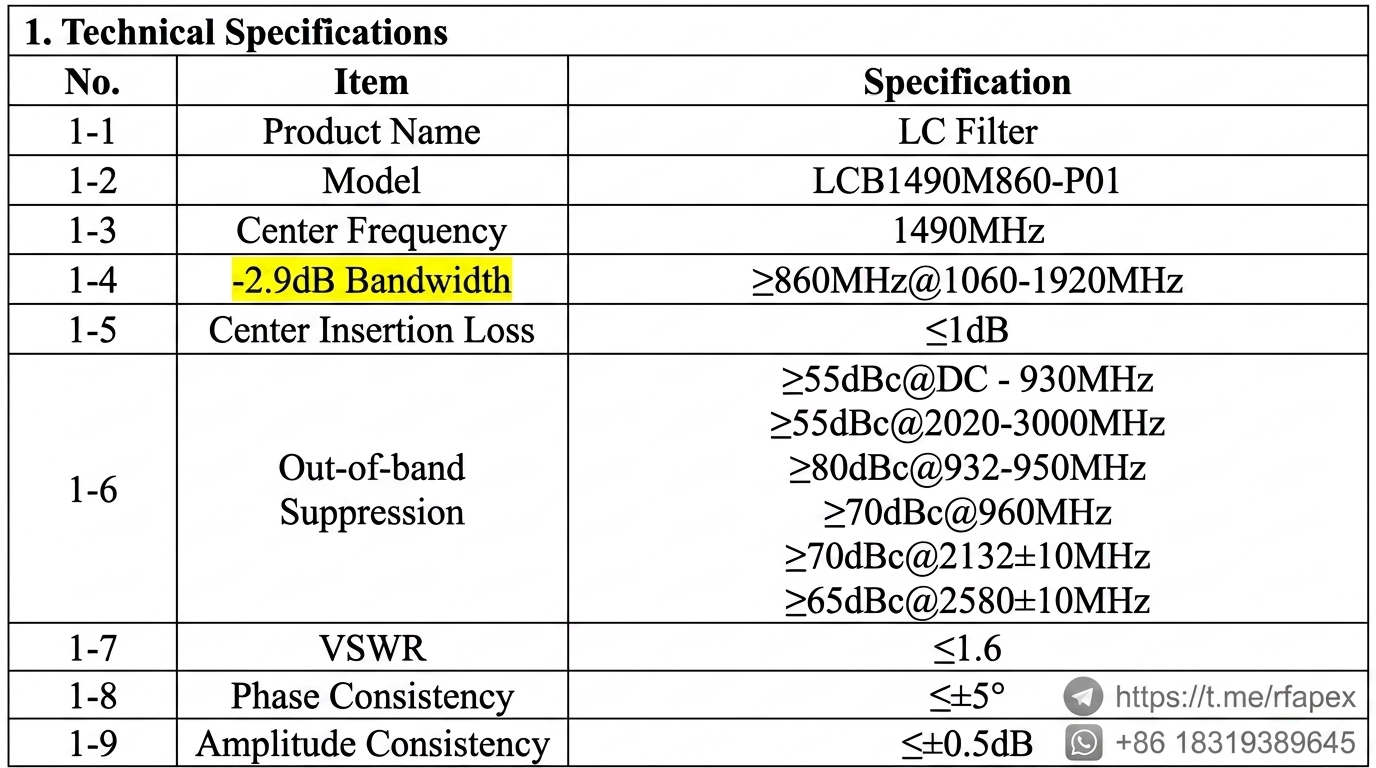

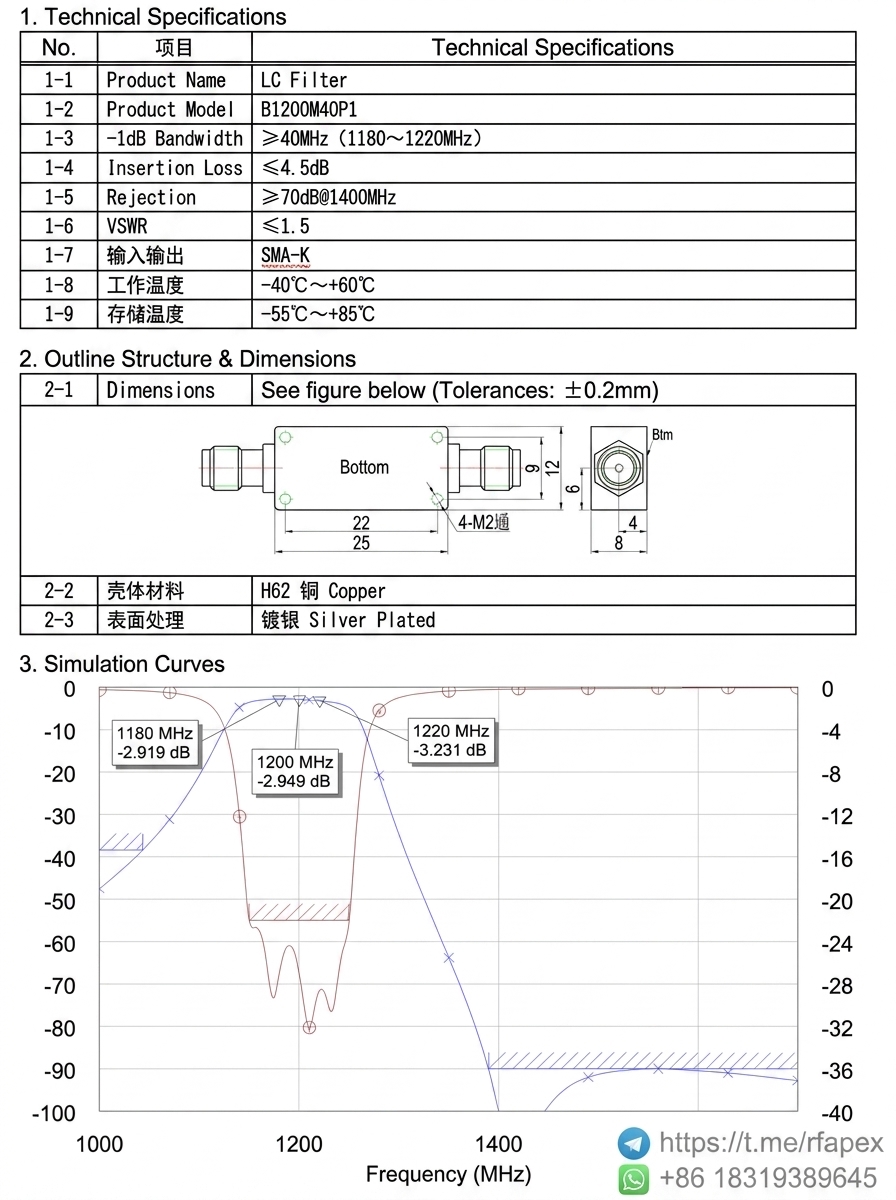

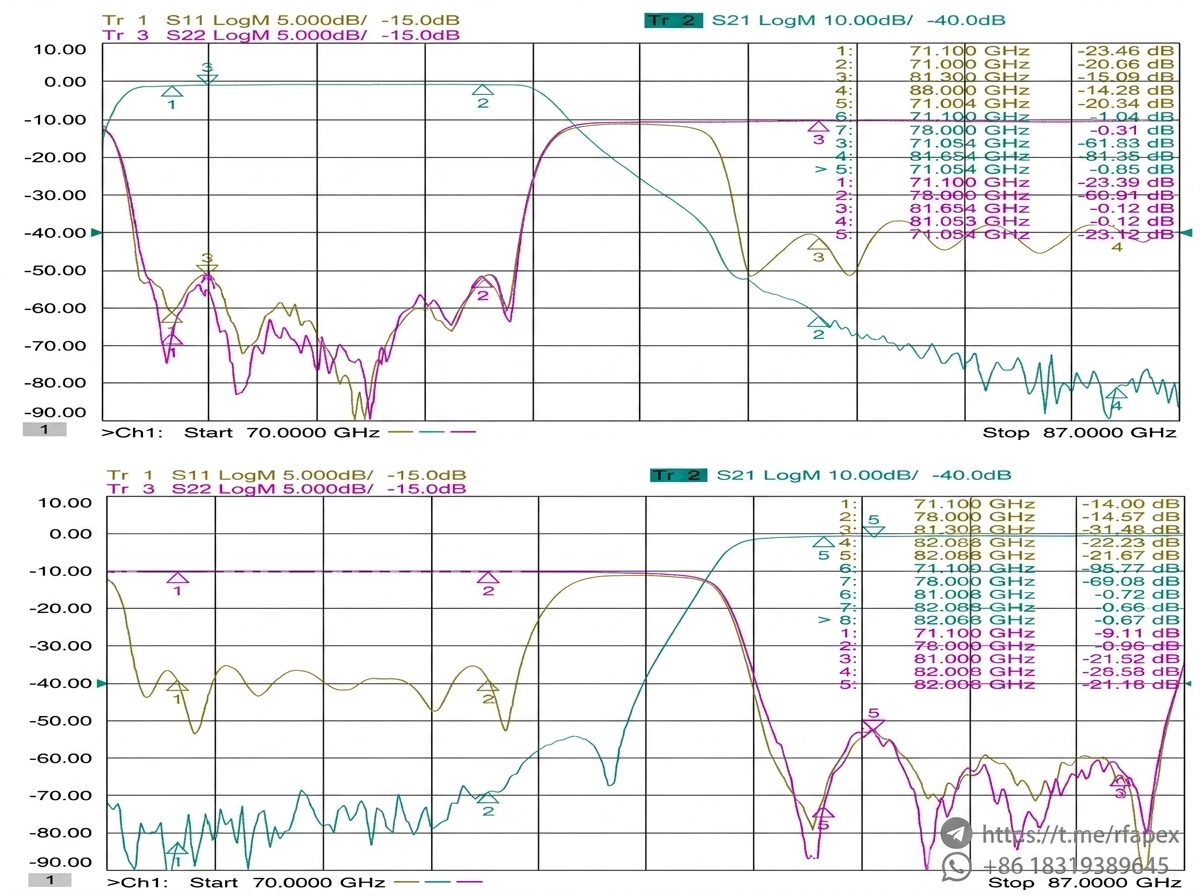

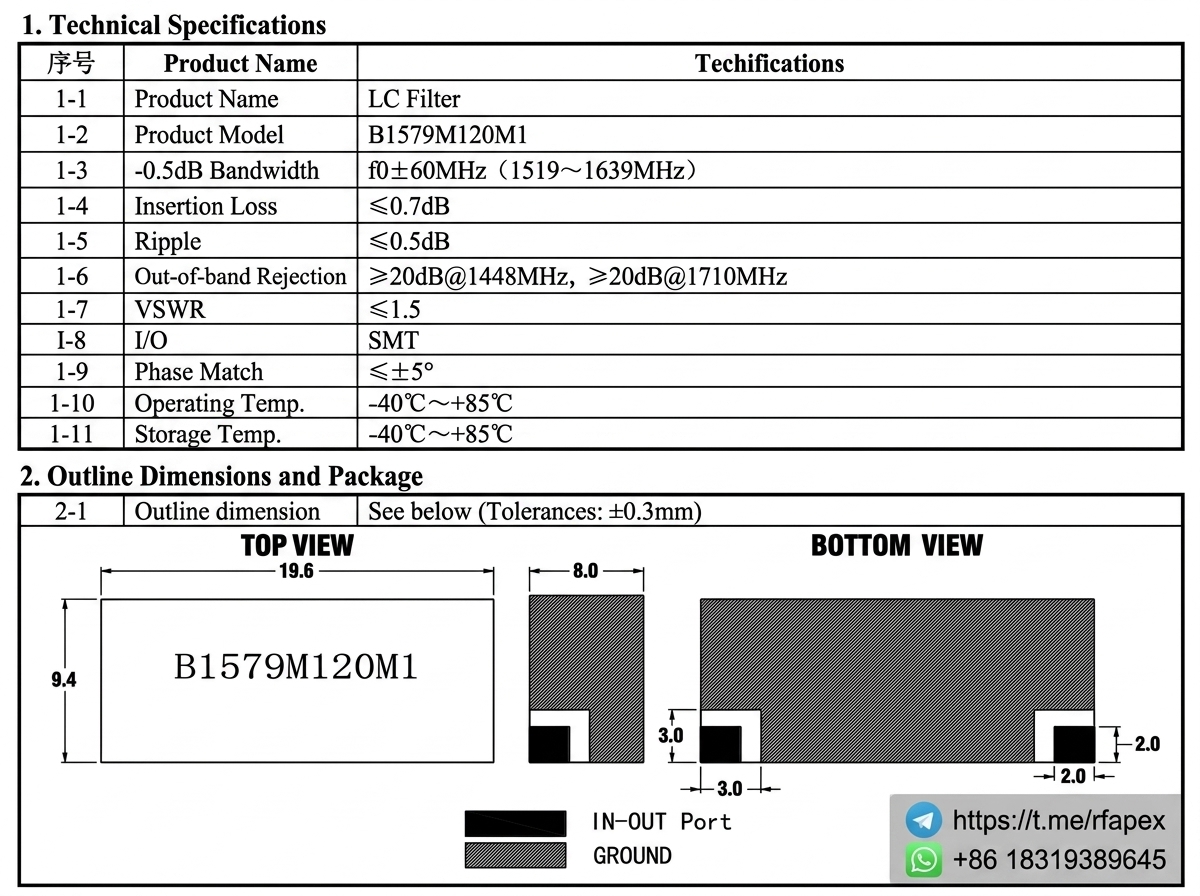

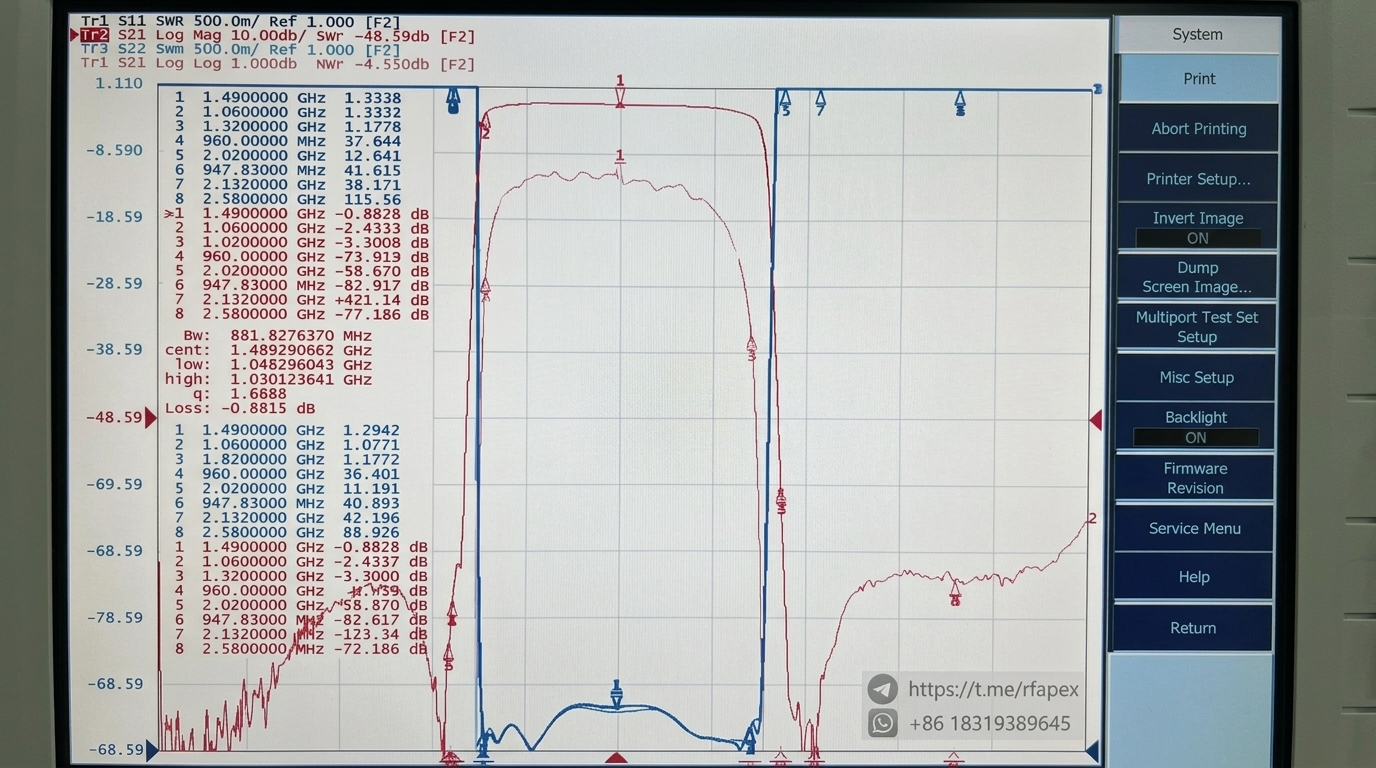

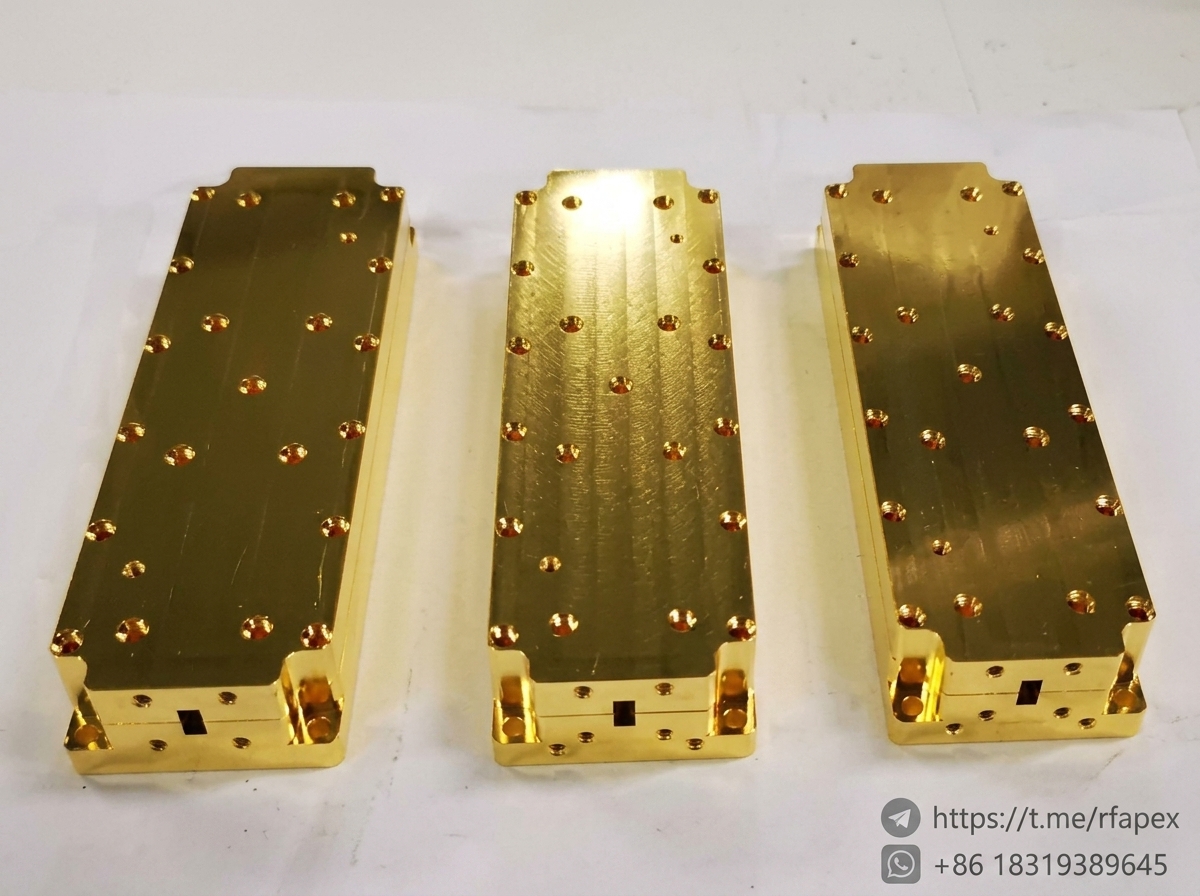

- Filters: Custom design and manufacturing for filters from 500 kHz to 110 GHz.

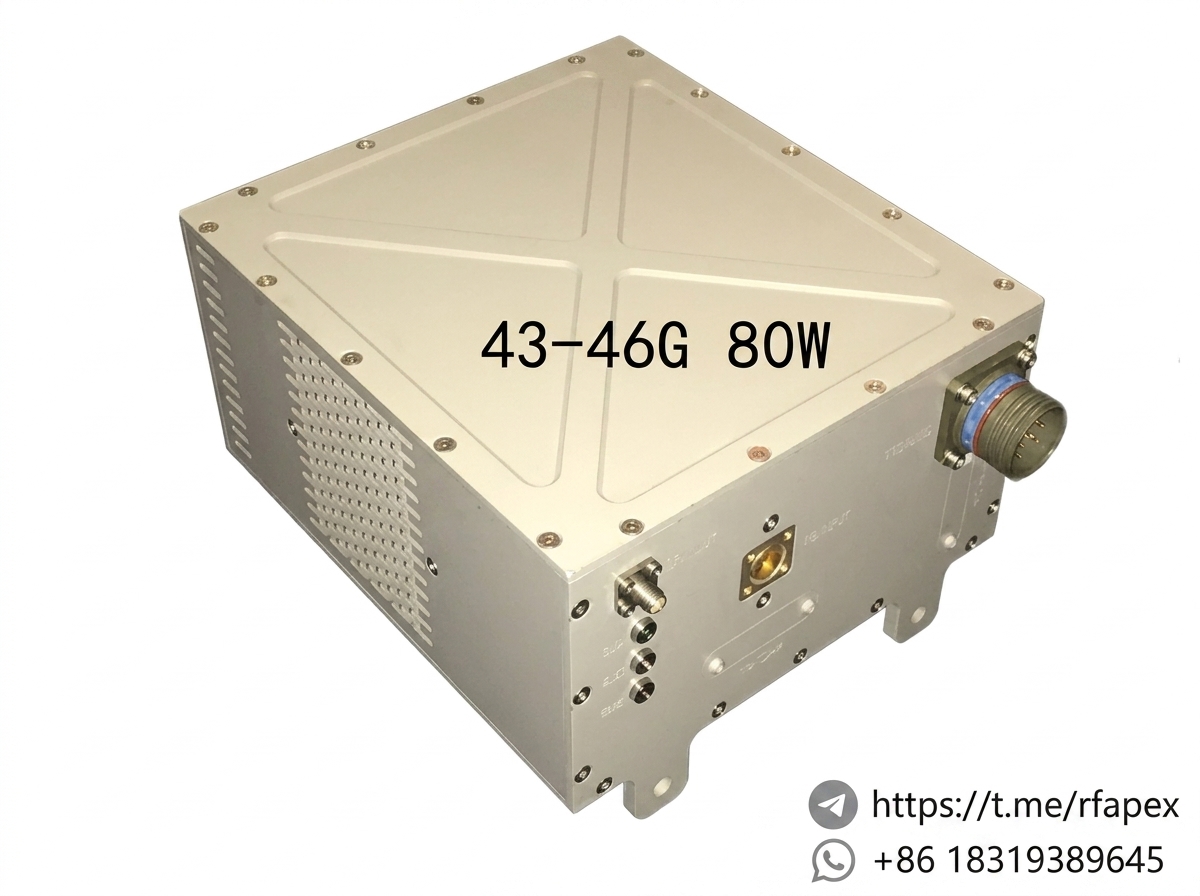

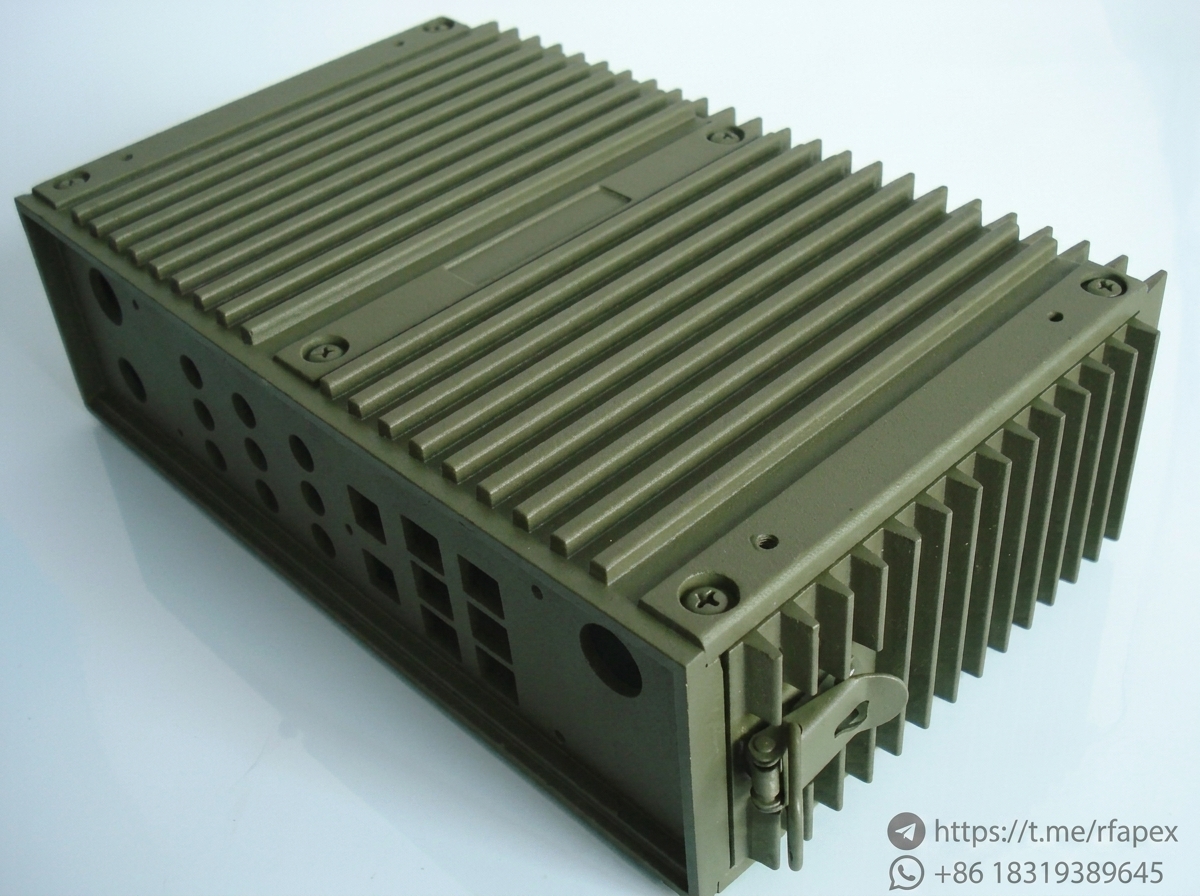

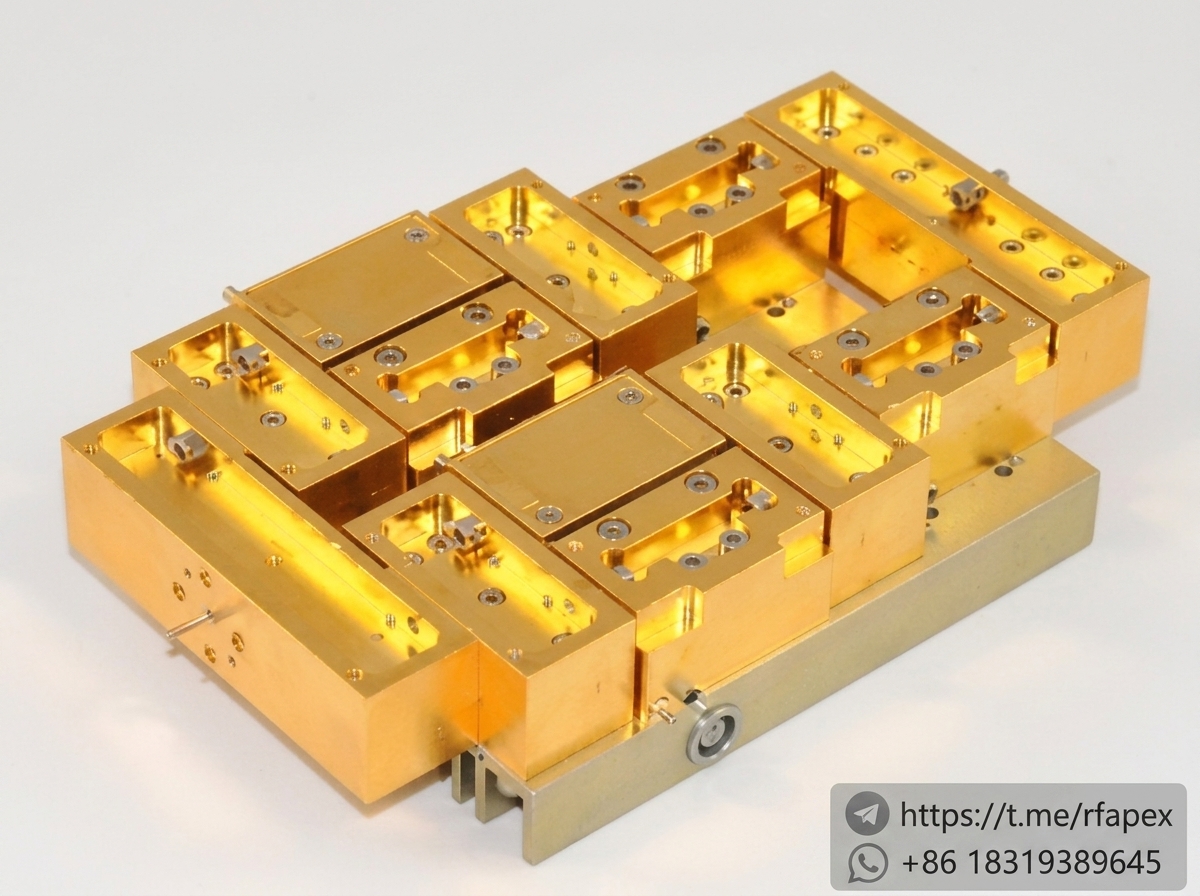

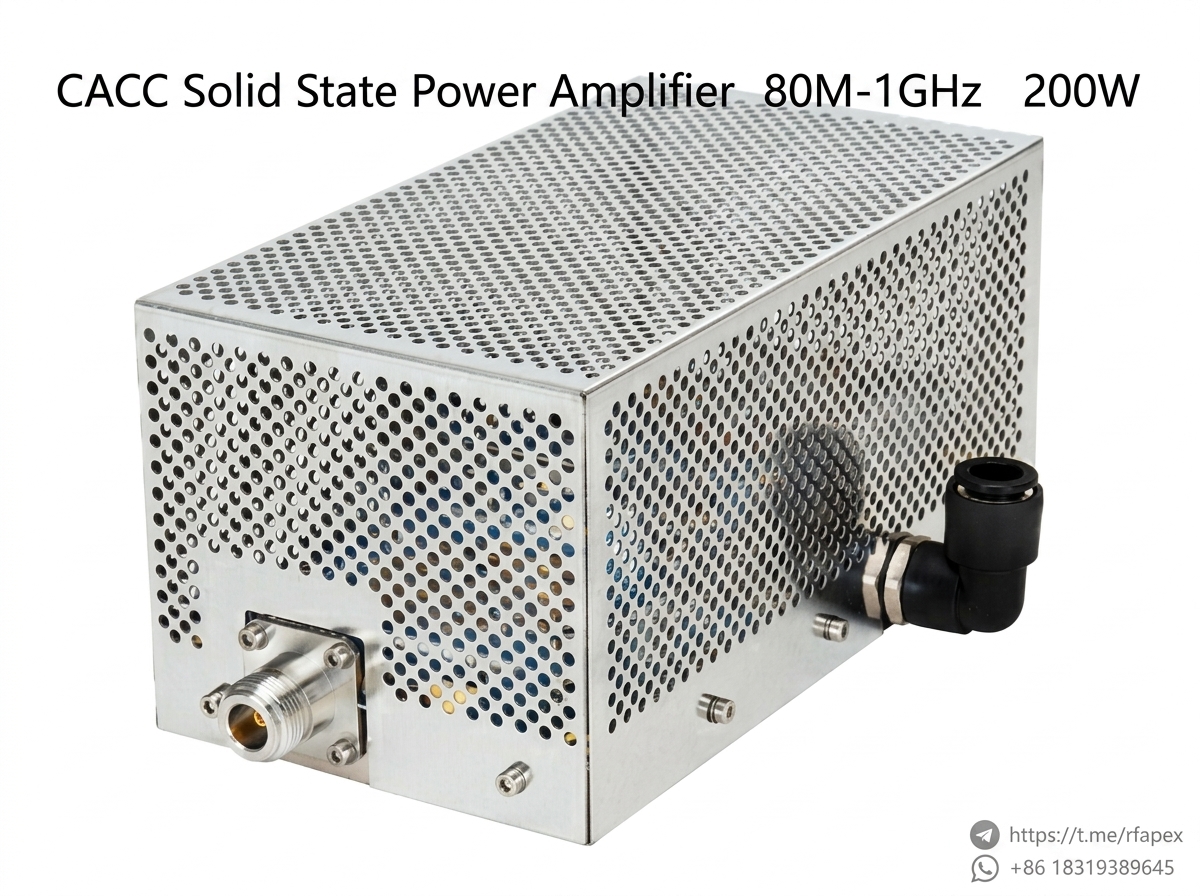

- Broadband SSPAs & LNAs: Custom Solid-State Power Amplifiers (SSPAs) and Low Noise Amplifiers (LNAs) covering DC to 110 GHz, with power levels from 1W up to 50kW.
