Motorola Bootlogo Maker: How to Use

How to use:

• Check the size of your device's logo partition here: Devices

• After you have verified your device in the list above, select the corresponding size in "Select your logo memory".

Example: My device is Moto G4 Plus (athene), this device is on the 16 MB Devices list, so I select 16 MiB in "Select your logo memory".

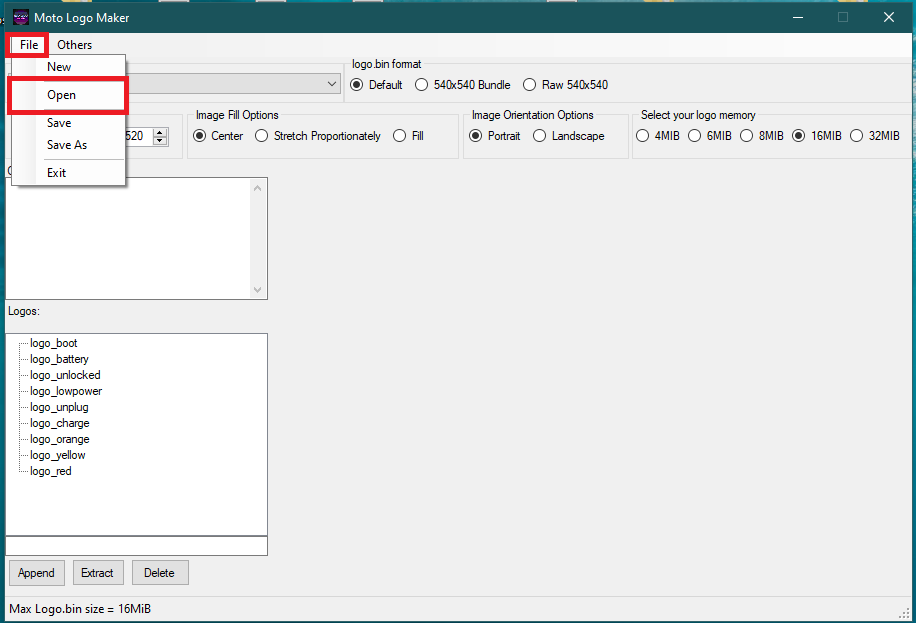

• Click in "File" and then "Open".

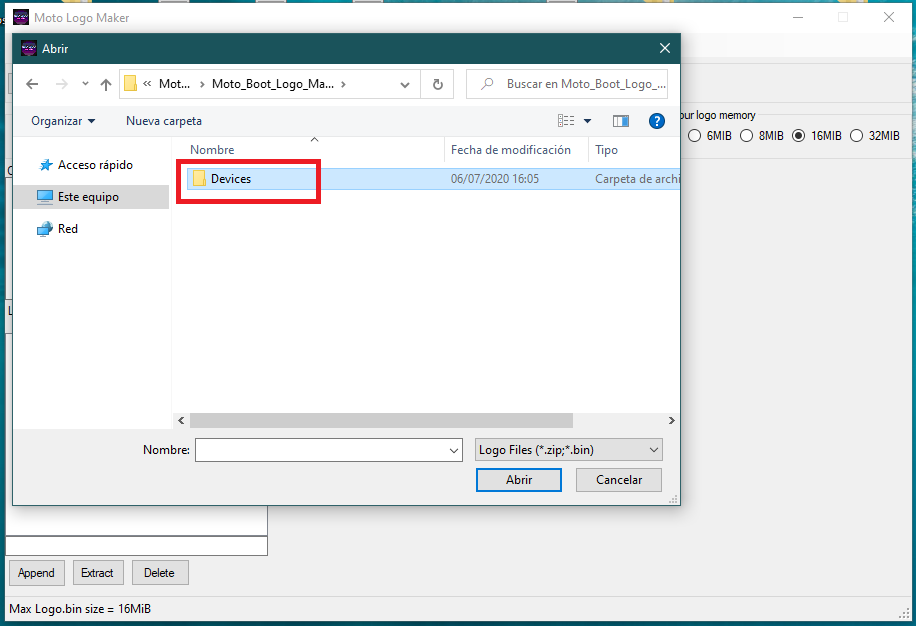

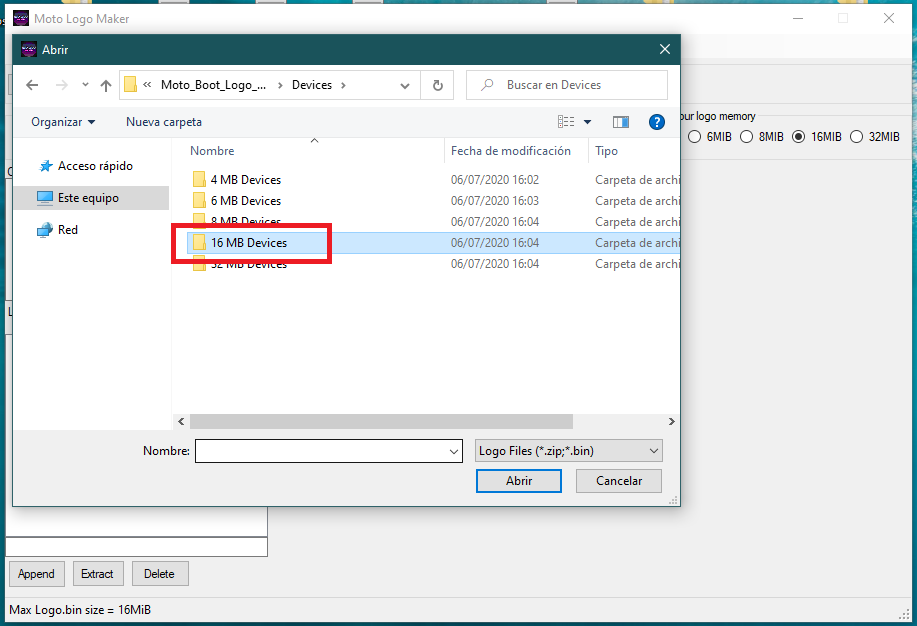

• Find for the "Devices" folder (it is included in the package that comes with the tool).

This folder contains all logo.bin of all motorola devices currently.

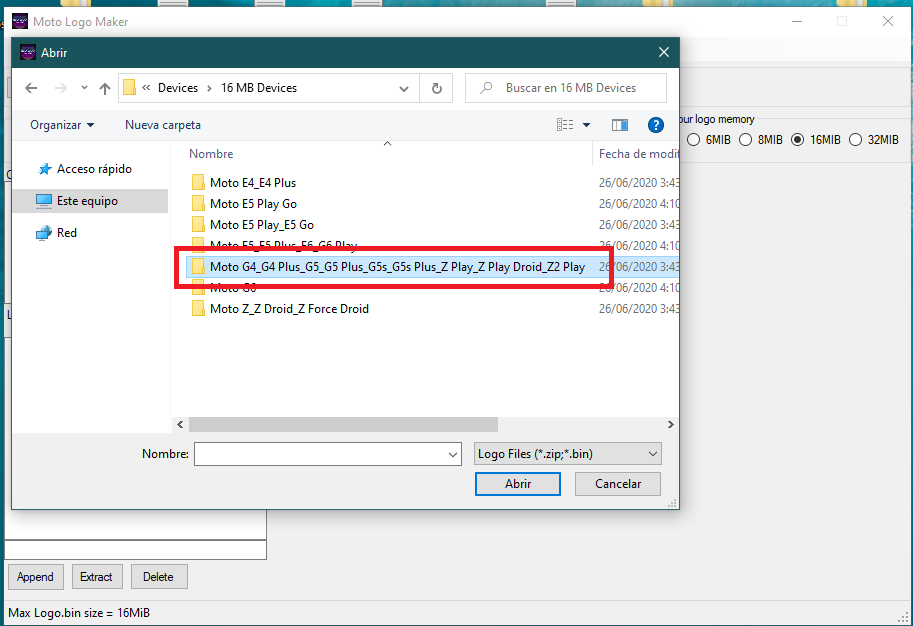

• Here find for the logo.bin that corresponds to your device.

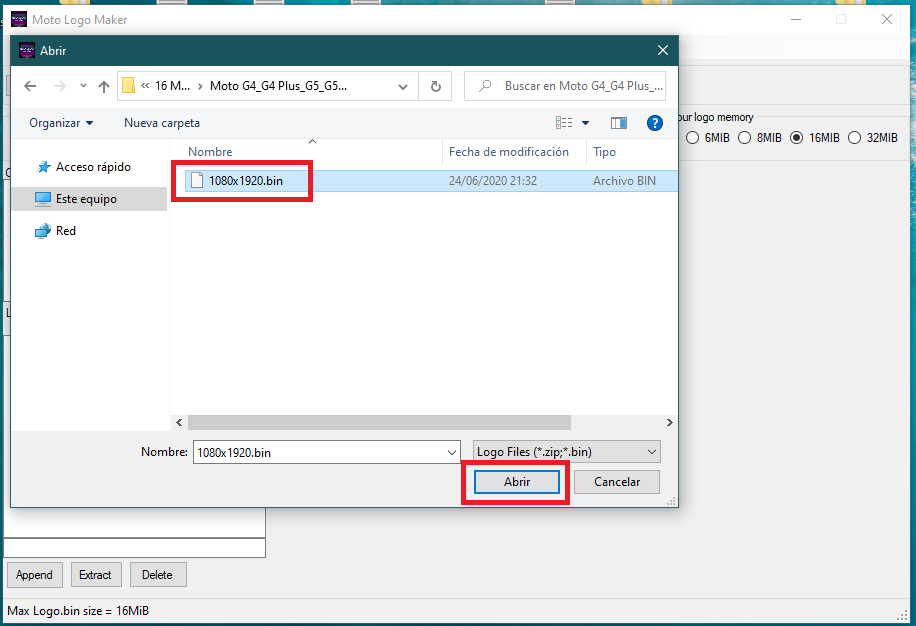

• Then open it and wait for the Tool to read it.

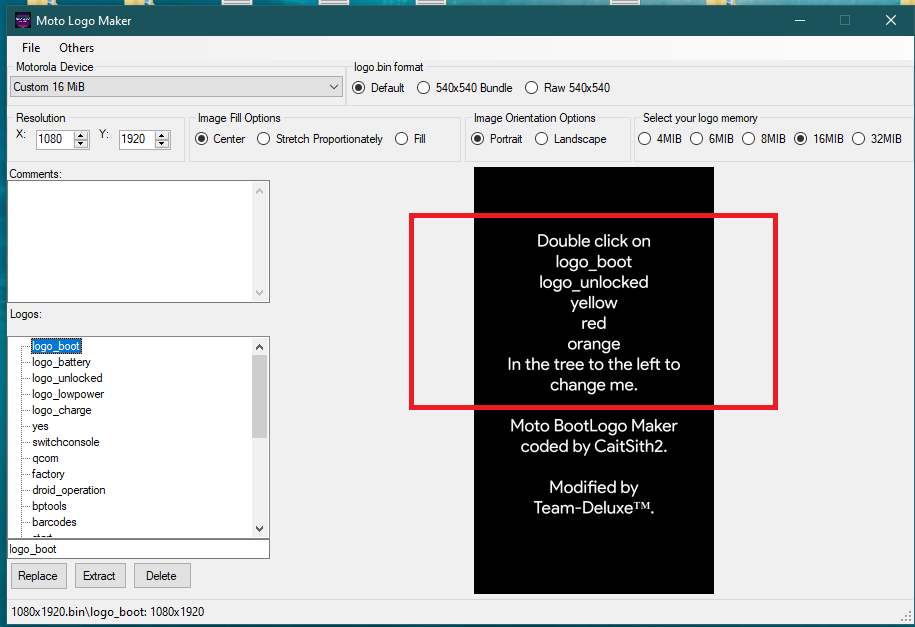

• Here follow the instructions on the screen.

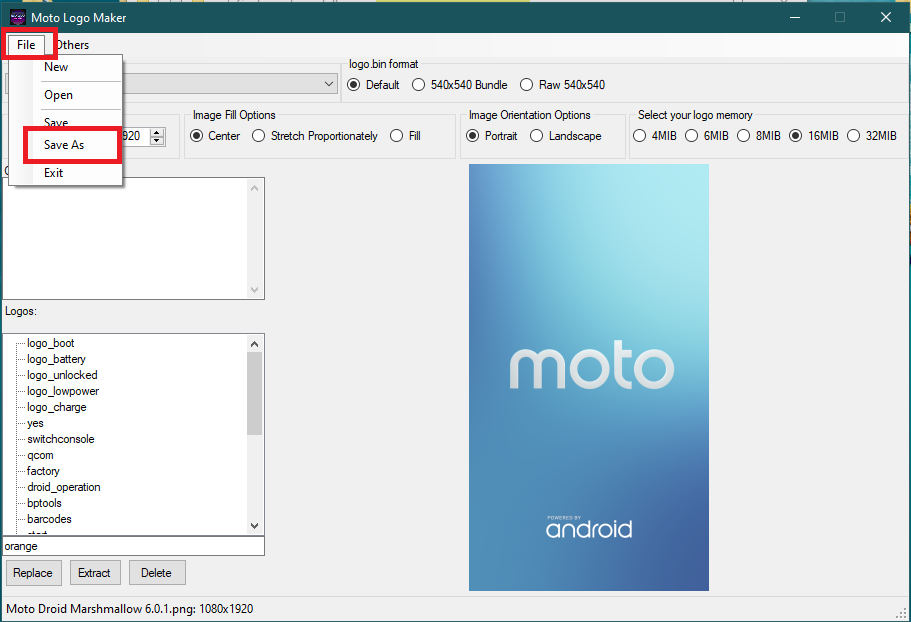

• After having finished, click in "File" and then "Save As".

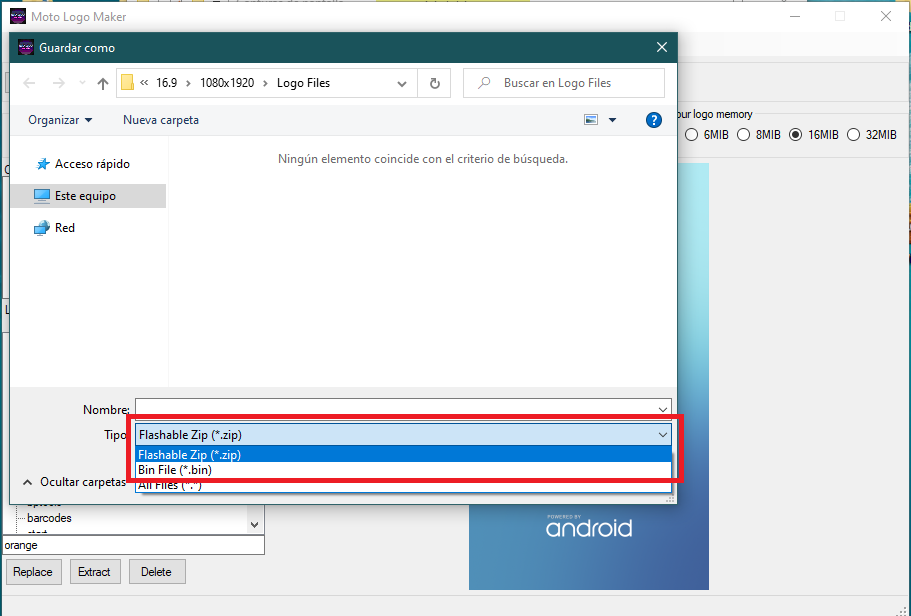

• Here you will have two options to save your new logo:

1. Flashable Zip: To create a zip file which you can install via TWRP.
2. Bin File: To create a .bin file which you can install via fastboot.

• For older devices:

fastboot flash logo logo.bin

• For A/B devices:

fastboot flash logo_a logo.bin

fastboot flash logo_b logo.bin
