Learnign About Auto Parts: The Clock Spring Spiral Cable
Many parts work together for vehicle safety. The clock spring is key. It connects the steering wheel to the car's systems, like the airbag.

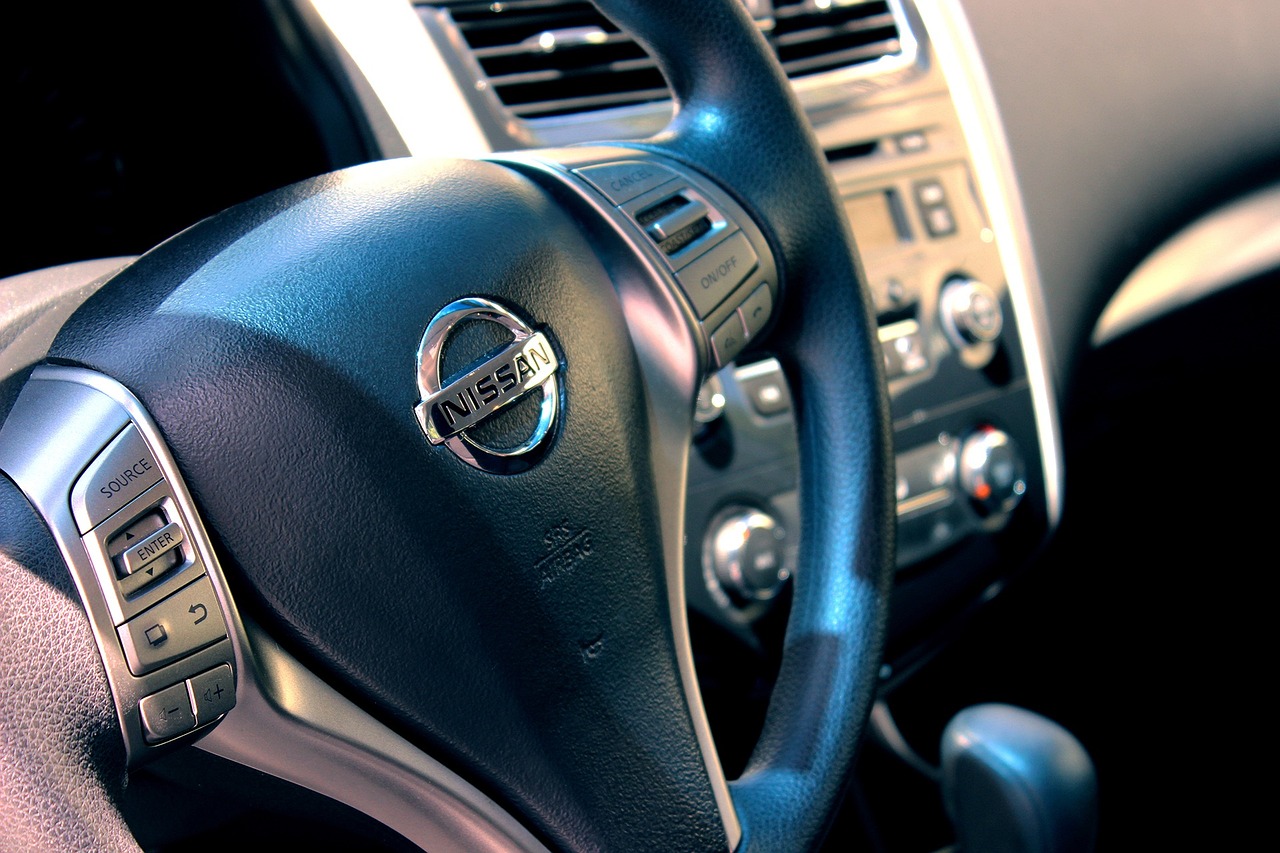

The clock spring is behind the steering wheel. It moves with the wheel, keeping the connection steady. This is vital for the airbag to work right in a crash.
Key Takeaways
- The clock spring is a critical component in a vehicle's steering system, maintaining the electrical connection between the steering wheel and the vehicle's electrical systems.
- It is located behind the steering wheel and is designed to extend and retract as the steering wheel is turned.
- The clock spring is essential for the proper functioning of the airbag system, ensuring the airbag deploys correctly in the event of a collision.
- It also connects the steering wheel controls, such as the horn and other buttons, to the vehicle's electrical systems.
- Understanding the role and importance of the clock spring can help drivers recognize potential issues and ensure their vehicle's safety features are functioning properly.
What is a Clock Spring in a Vehicle?
A clock spring, also known as a spiral cable or clockspring, is a key part in a vehicle's steering column. It helps many electrical systems work right when connected to the steering wheel.
https://www.youtube.com/watch?v=UMbGhxdXrUc
Location and Function of the Clock Spring
The d40 navara clock spring is right behind the steering wheel. It connects the steering wheel to the car's electrical wiring. It keeps the electrical connection steady, no matter where the steering wheel is.
This is done with a flat, ribbon-like cable that can stretch and pull back. This lets the steering wheel move freely.
The clock spring is key for safety features like airbags and for controls like audio and cruise. Without it, these systems won't work right. This could be a big safety risk.
Types of Clock Springs Used in Different Vehicles
Clock springs vary by vehicle make and model. Some are made just for one car, while others fit many. The design depends on where the controls are, how many wires are needed, and the steering column's layout.
When you need to replace a clock spring, get the right one for your car. The wrong one can mess up electrical connections. It might even stop airbags from working in an accident.
In short, the clock spring is a small but vital part of a car's steering system. It makes sure many electrical functions work smoothly. Knowing where it is, what it does, and the right one for your car is key for safety and function.
Common Issues with Clock Spring Spiral Cables
Clock spring spiral cables are made to last but can still have problems. These issues can harm your car's safety and how it works. We'll look at signs of a bad clock spring, the dangers of a faulty one, and how to find problems.
Signs of a Failing Clock Spring
A bad clock spring might show signs like an airbag light on, a broken horn, or controls that don't work. You might also hear rubbing or clicking sounds when turning the wheel. This noise happens when the clock spring cable wears out and touches other parts in the steering column.
Risks Associated with a Malfunctioning Clock Spring
A broken clock spring is a big risk because it might not make the airbag work in an accident. This could seriously hurt or even kill the driver. It can also mess up the horn, radio, and cruise control buttons. While these problems aren't as dangerous, they can still be a problem and make driving harder.
Ignoring the warning signs of a failing clock spring can put you and your passengers at risk. It is crucial to address any issues promptly to ensure the proper functioning of your vehicle's safety features.
Diagnosing Clock Spring Problems
To find clock spring problems, you need special tools to check the wiring. These tools can spot breaks or shorts in the cable. Sometimes, just looking at the clock spring can show damage like cracks or fraying. But, because it's complex, you might need a mechanic to really figure out and fix the problem.
If you think your clock spring is broken, get it checked by a pro right away. Waiting too long can make things worse and put your safety at risk.
Replacing a Clock Spring Spiral Cable
If your car's clock spring spiral cable is not working, you'll need to replace it. To do this, you must remove the steering wheel to get to the clock spring. This job is very complex and needs a lot of skill and care.
It's best to let a professional mechanic do this job. They have the right tools and knowledge to do it safely and right.
When putting in a new clock spring, it's very important to follow the maker's instructions closely. Even a small mistake can cause big problems with the airbag system or steering wheel controls later. Make sure to use the correct parts and tools for your car.
After putting in the new clock spring, you might need to calibrate the steering angle sensor. This is done with special tools. It makes sure the airbag system and other parts work well. A qualified mechanic should do this to keep your car safe.
