HH Vector Series

CHHOM SAMEDIJune 17, 2021

HH Vector Series

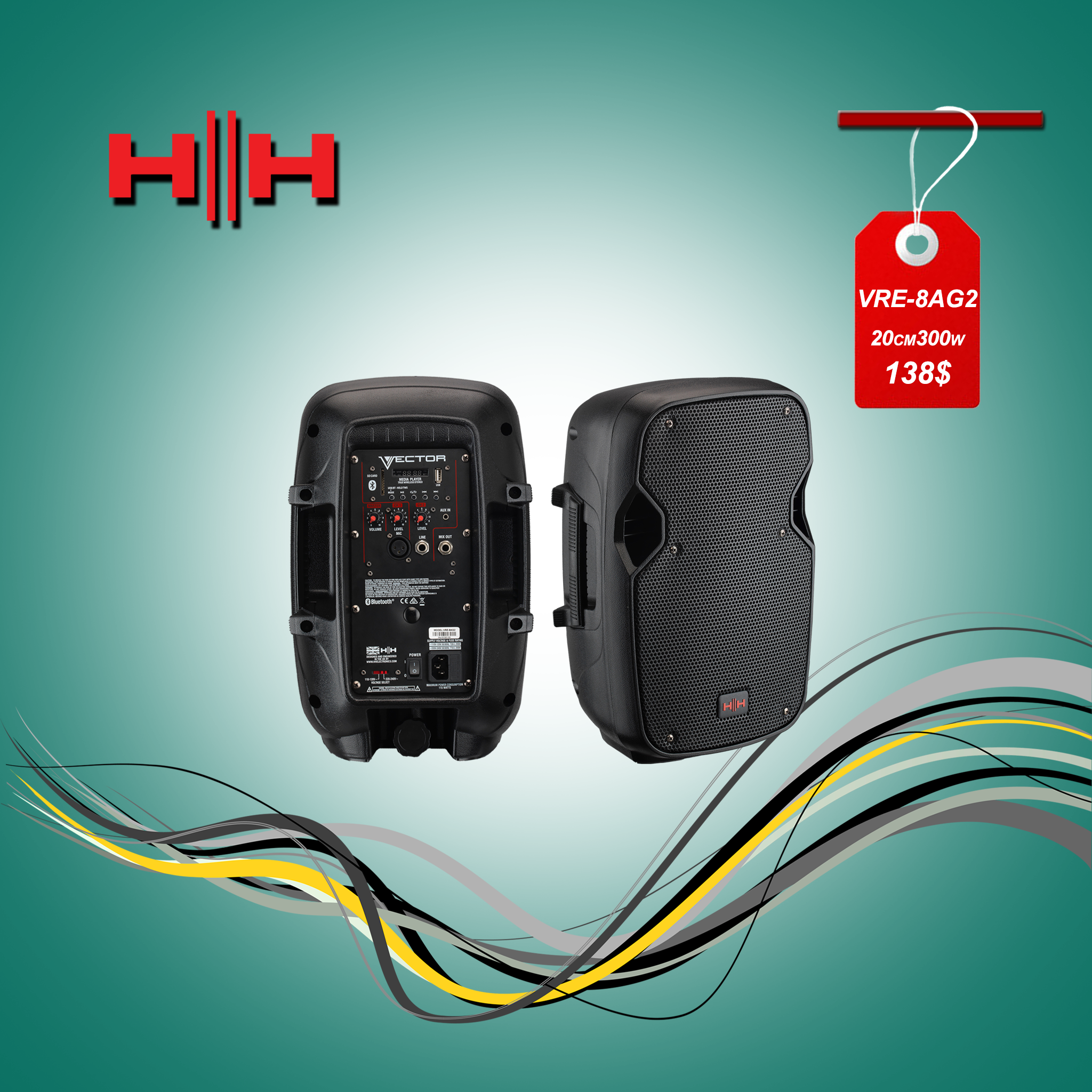

The VRE-8AG2 offers a solution for users looking for a portable pa speaker for small events, announcements, small bands, education and more. With the integrated microphone and instrument inputs, users can connect directly to the VRE-8AG2 without the need for an external mixing console. The on-board media player enables audio playback via USB, SD card and Bluetooth enabled devices such as mobile phones. With 300 watts of power output, the VRE-8AG2 can project to audiences up to 100 people. Thanks to true wireless speaker pairing technology, two VRE-8AG2 speakers can be linked wirelessly.

SPECIFICATIONS
Power 300W
Amplifier Type CLASS A/B
Power Supply LINEAR TOROIDAL PSU - SWITCHABLE VOLTAGE
Inputs 1X BALANCED XLR 1X 6.3MM, SINGLE ENDED JACK INPUTS, 1X 3.5MM STEREO JACK IN, MEDIA PLAYER WITH BLUETOOTH V5.0, USB AND SD CARD
Outputs BALANCED 6.3MM JACK MIX OUT.
Controls CH1,2 GAIN CONTROLS, MASTER VOLUME
HF Driver 1" COMPRESSION DRIVER
LF Driver 8" WOOFER
Coverage 90°H X 40°V
Cabinet ROBUST POLYPROPYLENE CABINET WITH TWO HANDLES AND MONITOR ANGLE
Finish BLACK
Grille POWDERCOATED STEEL, BLACK WITH ACOUSTIC FOAM BACKING
Pole Mount 35MM DISTANCE POLE SOCKET
Unit Dimensions (Hwd) 39 X 25.5 X 19.5 CM, 15.4" X 10" X 7.7"
Unit Weight 5KG, 11 LBS
Carton Dimensions (Hwd) 45.5 X 30 X 25.3 CM, 17.9" X 11.8" X 10"
Packed Weight 6.5KG, 14.3 LBS

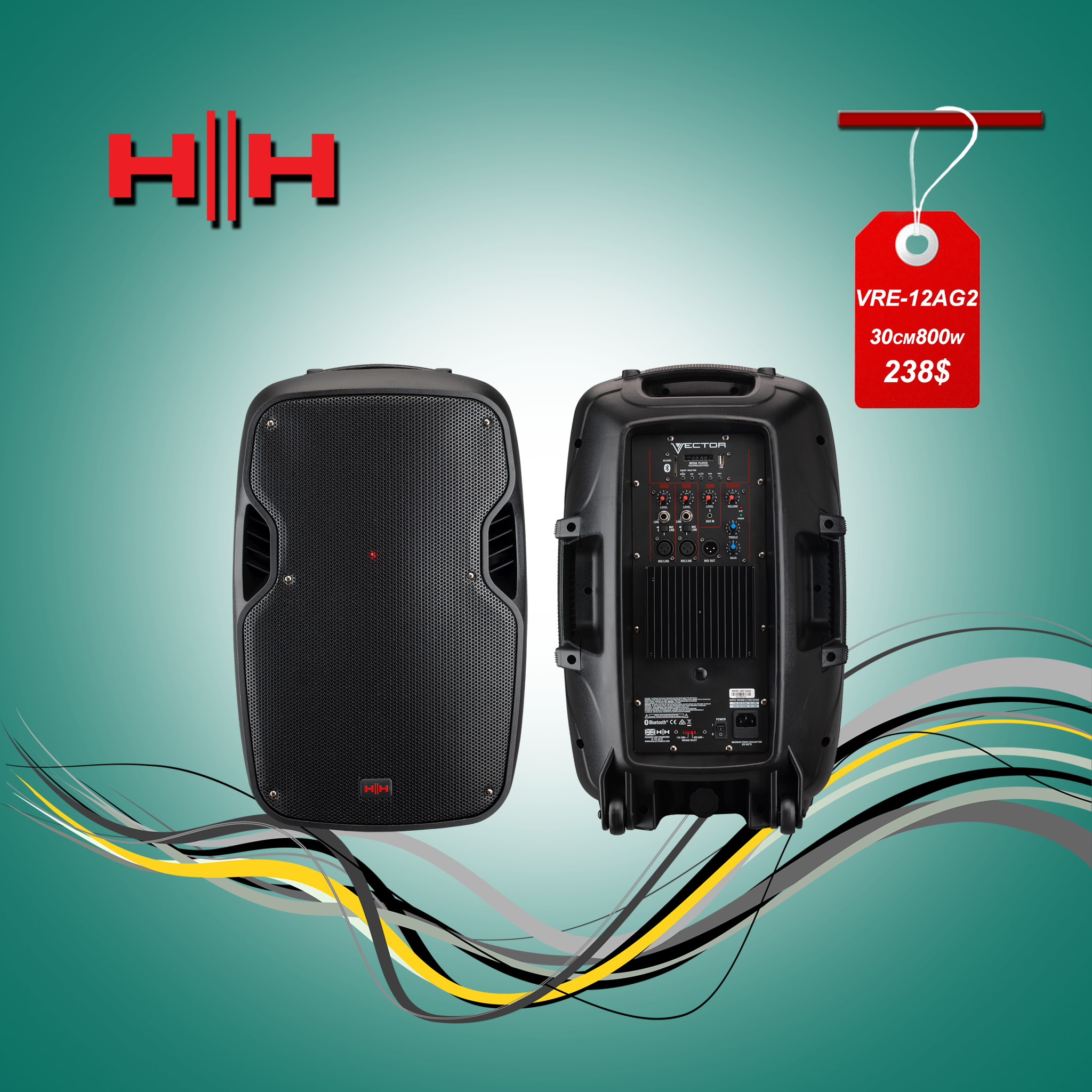

The VRE-12AG2 is the ideal audio solution for bands, conference, fitness, education, audio playback, DJ and more. With the integrated 3 channel mixer and the ability to connect microphones directly, users can use the VRE-12AG2 without the need for an external mixing console. The on-board media player enables audio playback via USB, SD card and Bluetooth enabled devices such as mobile phones. With 800 watts of power output, the VRE-12AG2 can project to audiences up to 250 people. Thanks to true wireless speaker pairing technology, two VRE-12AG2 speakers can be linked wirelessly.

SPECIFICATIONS
Power 800W
Amplifier Type CLASS A/B
Power Supply LINEAR TOROIDAL PSU - SWITCHABLE VOLTAGE
Inputs 2X BALANCED XLR WITH MIC/LINE SWITCH, 2X 6.3MM SINGLE ENDED JACK INPUTS, 1X 3.5MM STEREO JACK IN, MEDIA PLAYER WITH BLUETOOTH V5.0, USB AND SD CARD
Outputs BALANCED XLR MIX OUT.
Controls CH1,2,3 GAIN CONTROLS, MASTER 2 BAND EQ, MASTER VOLUME
HF Driver 1" COMPRESSION DRIVER
LF Driver 12" WOOFER
Coverage 90°H X 40°V
Cabinet ROBUST POLYPROPYLENE CABINET WITH THREE HANDLES AND MONITOR ANGLE
Finish BLACK
Grille POWDERCOATED STEEL, BLACK WITH ACOUSTIC FOAM BACKING
Pole Mount 35MM DISTANCE POLE SOCKET
Unit Dimensions (Hwd) 58.5 X 36.5 X 32.5 CM, 23" X 14.4" X 12.8"
Unit Weight 10.3KG, 22.7 LBS
Carton Dimensions (Hwd) 65.8 X 43.5 X 36 CM, 25.9" X 17.1" X 14.2"
Packed Weight 13KG, 28.7 LBS

The VRE-15AG2 is the ideal audio solution for bands, conference, announcements, education, fitness, dj and more. With the integrated 3 channel mixer and the ability to connect microphones directly, users can use the VRE-15AG2 without the need for an external mixing console. The on-board media player enables audio playback via USB, SD card and Bluetooth enabled devices such as mobile phones. With 800 watts of power output, the VRE-15AG2 can project to audiences up to 300 people. thanks to true wireless speaker pairing technology, two VRE-15AG2 speakers can be linked wirelessly.

SPECIFICATIONS
Power 800W
Amplifier Type Class A/B
Power Supply Linear torodial PSU - Switchable voltage
Inputs 2 x Balanced XLR with mic/line switch, 2 x 6.3mm single ended jack inputs, 1 x 3.5mm stereo jack in, media player with Bluetooth V5.0, USB and SD card.
Outputs Balanced XLR mix out
Controls Channel 1, 2 ,3 Gain controls, master 2 band EQ, master volume
HF Driver 1 Inch Compression driver
LF Driver 15 Inch woofer
Coverage 90°H x 40°V
Cabinet Robust polypropylene cabinet with three handles and monitor angle
Finish Black
Grille Powdercoated steel grille with acoustic foam backing
Pole Mount 35mm Distance pole socket
Unit Dimensions (Hwd) 690 x 440 x 370mm, 27.2" x 17.3" x 14.6"
Unit Weight 13.5Kg, 29.8 lbs
Carton Dimensions (Hwd) 765 x 497 x 410mm, 30.1" x 19.6" x 16.1"
Packed Weight 16.9Kg, 37.3 lbs

The VRC-210 portable pa system offers an ideal solution for bands, conference, DJ, fitness, education and more. With its lightweight 10” enclosures, the VRC-210 allows for easy transportation and quick and simple setup. The integrated 6 channel mixer enables multiple instruments and microphones to be connected and mixed simultaneously. The 16 digital effects section ensures that your vocals or instruments have depth to their sound. The on-board media player includes USB, SD card and Bluetooth inputs, ensuring that music or backing tracks can be easy played through the system. The VRC-210 offers many solutions within one affordable, lightweight and portable package.

SPECIFICATIONS
Power 2 X 500W
Amplifier Type CLASS D
Inputs 4X BALANCED COMBI XLR/JACK WITH MIC/LINE SWITCH, 2X 6.3MM SINGLE ENDED JACK INPUTS, 2X RCA INPUTS, MEDIA PLAYER WITH Bluetooth V5.0, USB AND SD CARD
Outputs RCA MIX OUT, 2X 6.3MM JACK SPEAKER OUTPUTS
Controls CH1-4 GAIN, 2 BAND EQ, EFFECT SEND, MIC/LINE SWITCH, CH5-6 GAIN, MASTER 16 DIGITAL EFFECT SECTION WITH LEVEL, MASTER 2 BAND EQ, MASTER VOLUME, PHANTOM POWER.
HF Driver 1" COMPRESSION DRIVER
LF Driver 10" WOOFER
Coverage 90°H X 40°V
Max SPL (1M) (Peak) 122DB (1M)
Frequency Response 60HZ – 18KHZ
Cabinet ROBUST POLYPROPYLENE CABINET WITH CARRY HANDLES
Finish BLACK
Grille POWDER-COATED STEEL GRILLE
Pole Mount 35MM DISTANCE POLE SOCKET
Unit Dimensions (Hwd) 49 x 31.5 x 31.5 CM, 19.3” x 12.4” x 12.4”
Unit Weight 18.7KG, 41.2 LBS

HH Vector សារី ជាប្រភេទបាស់ មានអំភ្លីជាប់ មាន Bluetooth និងអាច Pair wireless Stereo ដោយមិនចាំបាចប្រើខ្សែ
