Answer to user "G36"

Answer to user "G36"


I did in correspond with your example. It work, but as NOR gate. Becauce, I have follow truth table in Proteus (where logical 1 = 5V and 0 = 1V):

a | 1V 1V 5V 5V

b | 1V 5V 1V 5V

--+-------------------

y | 5V 0V 0V 0V

See screenshots further.

(a, b, y) = (1V, 1V, 5V)
(a, b, y) = (1V, 5V, 0V)
(a, b, y) = (5V, 1V, 0V)

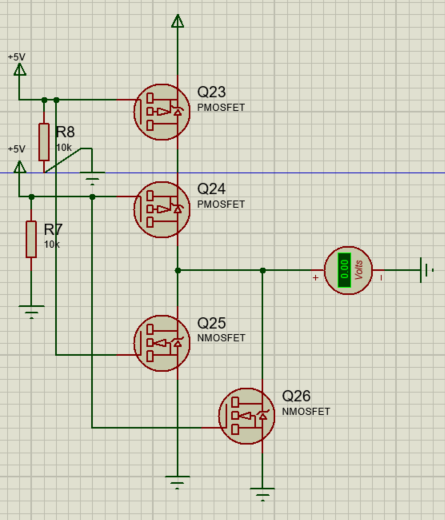

(a, b, y) = (5V, 5V, 0V)
